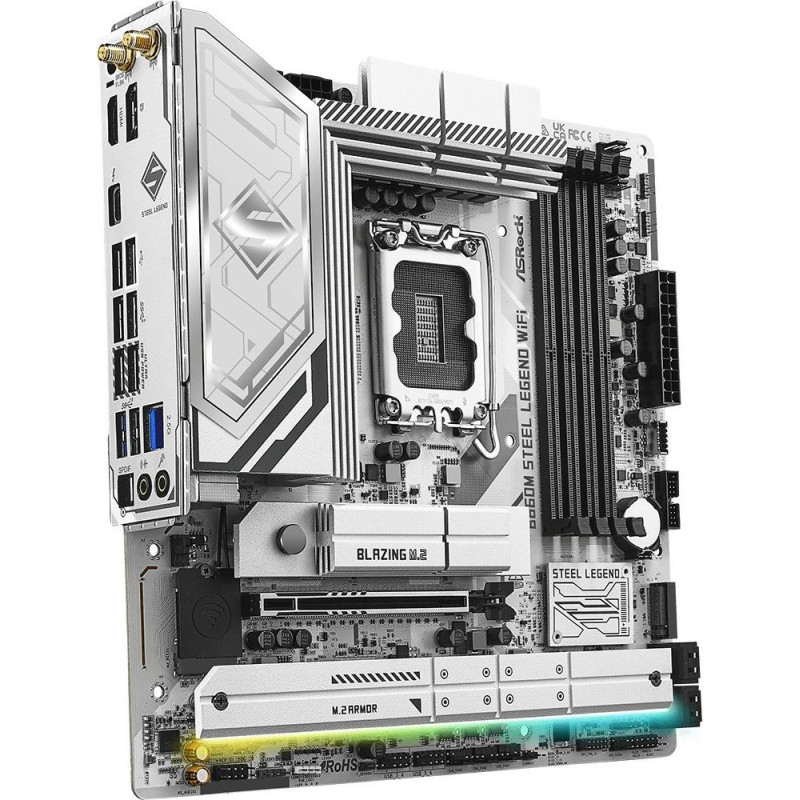

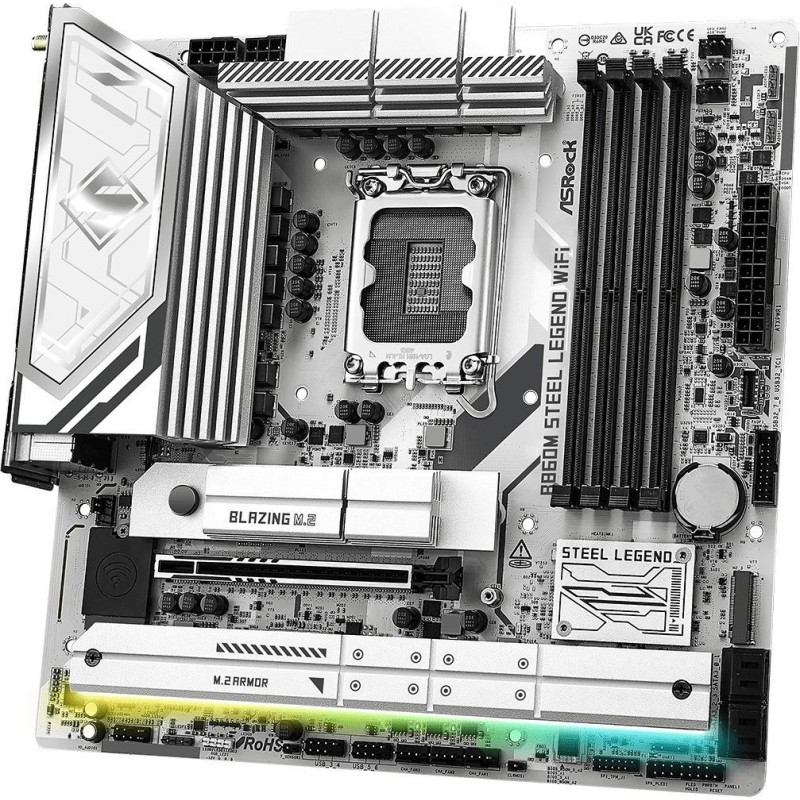

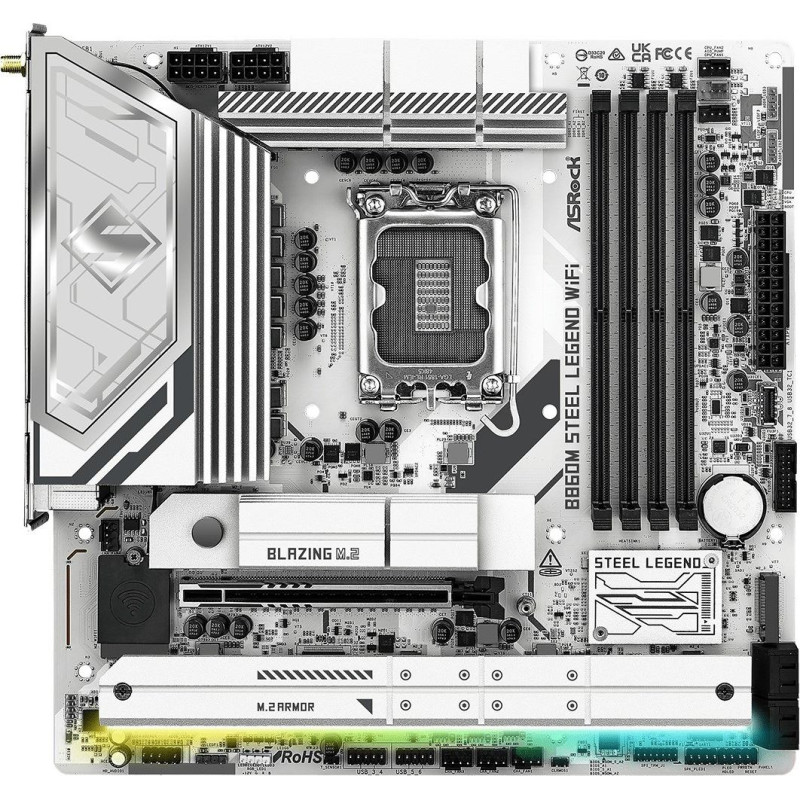

Asrock B860M Steel Legend WiFi motherboard

Asrock B860M Steel Legend WiFi motherboard

Delivery to the store takes 3 - 7 business days.
ID: 163146
Product Code: B860M STEEL LEGEND WIFI
Barcode 4711581490215
170.86€
(Ex Tax: 137.79€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsLGA 1851
Compatible processor seriesIntel Core Ultra (Series 2)
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Maximum resolution7680 x 4320 pixels
HDCPYes
On-board graphics card familyIntel Iris Xe Graphics
CertificationFCC, CE, ErP/EuP
Motherboard form factormicro ATX
Audio output channels7.1 channels
Product colourWhite
Audio chipRealtek ALC1220
Motherboard chipsetIntel B860
Motherboard chipset familyIntel
Windows operating systems supportedWindows 11 x64
Unbuffered memoryYes
Maximum internal memory256 GB
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
ECC сompatibilityNon-ECC
Depth244 mm
Width244 mm
BluetoothYes
Ethernet LAN data rates10,100,1000,2500 Mbit/s
LAN controllerDragon RTL8125BG
Wi-Fi standards802.11b
Top Wi-Fi standardWi-Fi 6E (802.11axe)
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Ethernet LANYes
Bluetooth version5.3
MU-MIMOYes
Number of SATA III connectors4
USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
CPU fan connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
Number of chassis fan connectors4
Front panel audio connectorYes
12V power connectorYes
RGB LED pin headerYes
ATX Power connector (24-pin)Yes
Number of CPU fan connectors2
Number of RGB LED pin headers1
Number of USB 3.2 Gen 2 Type-C ports1
Number of water pump connectors1
Addressable LED connectors3
Number of EPS power connectors (8-pin)2
BIOS typeUEFI AMI
Supported storage drive typesHDD & SSD
RAID supportYes
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
RAID levels1
Number of storage drives supported8
DisplayPorts quantity1
DisplayPort version1.4
S/PDIF out portYes
USB connector typeUSB Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI version2.1
Headphone outputs1
USB 2.0 ports quantity2
Thunderbolt ports quantity1
Antennas quantity2
HDMI ports quantity1
MIC input1
Flashback BIOS buttonYes
Number of USB 3.2 Gen 1 ports4
Number of SATA III connectors4
Number of M.2 (M) slots4
PCI Express x16 (Gen 5.x) slots1
PCI Express x16 (Gen 4.x) slots1
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
4th M.2 largest key size2280
3rd M.2 largest key size2280
4th M.2 highest PCI Express generation4.0
WarningsDo not open or modify the motherboard to prevent damage.
