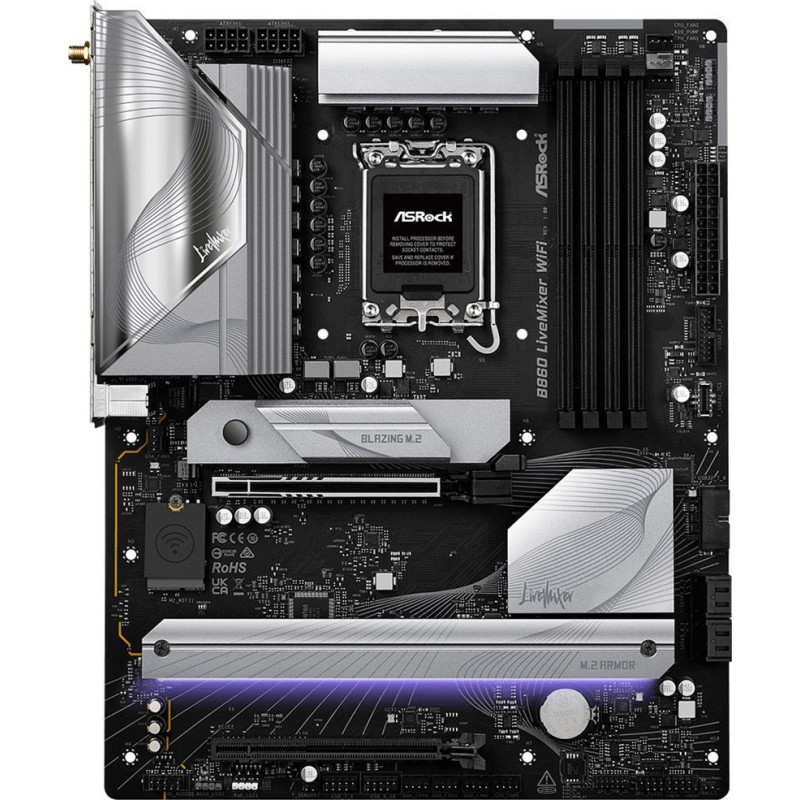

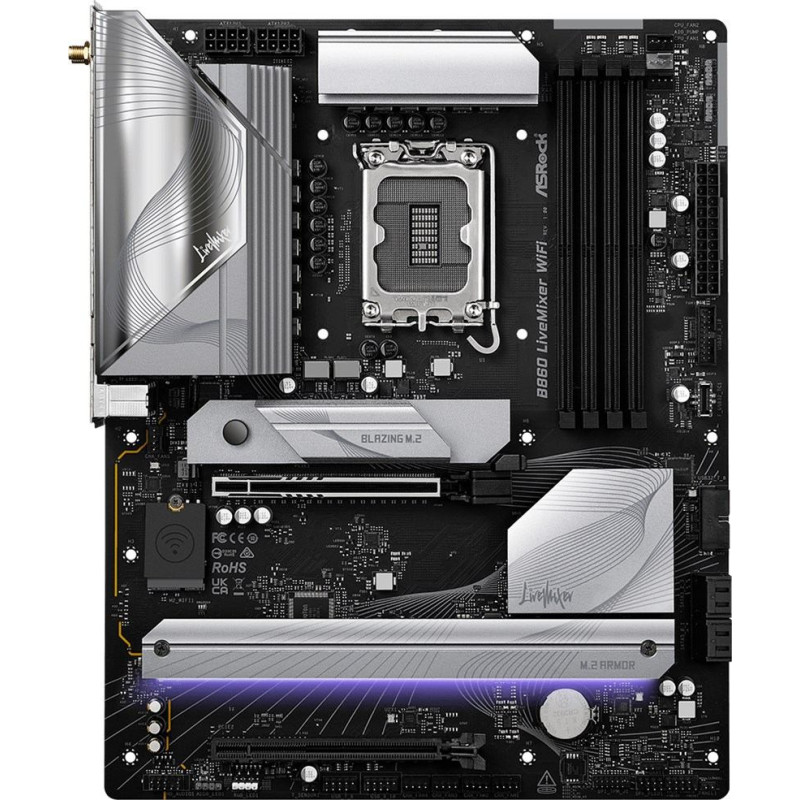

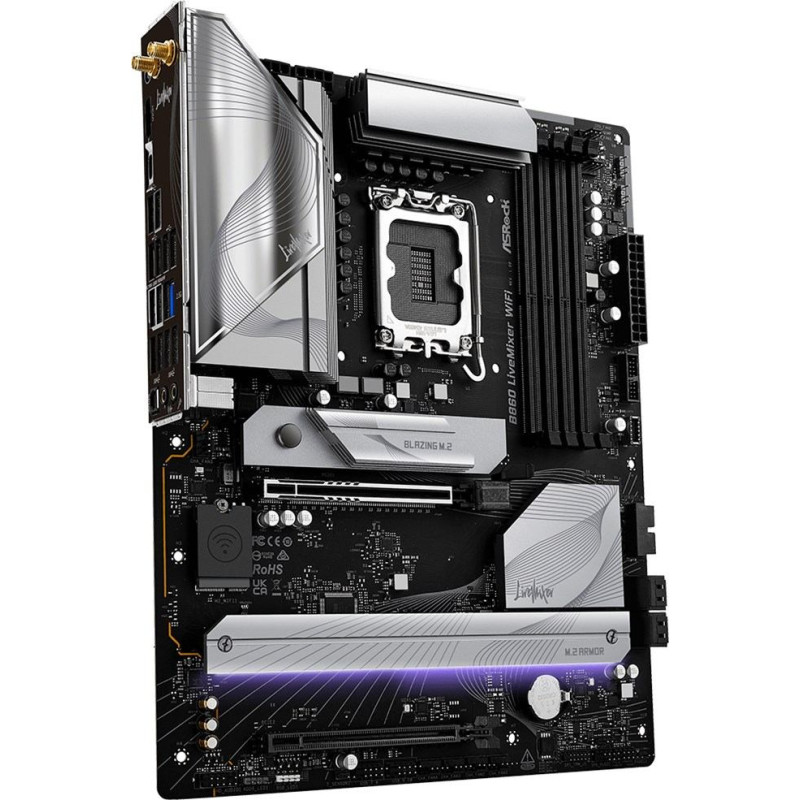

Asrock B860 LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) ATX

Asrock B860 LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) ATX

Delivery to the store takes 3 - 7 business days.
ID: 163169
Product Code: B860 LIVEMIXER WIFI
Barcode 4711581490147
185.63€
(Ex Tax: 149.71€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 1851 (Socket V1)
Processor manufacturerIntel
Compatible processor seriesIntel Core Ultra (Series 2)
Supported processor socketsLGA 1851
Parallel processing technology supportNot supported
Maximum resolution7680 x 4320 pixels
HDCPYes
CertificationFCC, CE, ErP/EuP
Windows operating systems supportedWindows 11 x64
Motherboard chipsetIntel B860
Audio chipRealtek ALC1220
Product colourBlack
Motherboard form factorATX
Motherboard chipset familyIntel
Audio output channels7.1 channels
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Number of memory slots4
ECC сompatibilityNon-ECC
Maximum internal memory256 GB
Unbuffered memoryYes
Width305 mm
Depth244 mm
Wi-Fi standardsWi-Fi 5 (802.11ac)
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Bluetooth version5.3
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
BluetoothYes
LAN controllerDragon RTL8125BG
TPM connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
RGB LED pin headerYes
12V power connectorYes
Number of chassis fan connectors5
Number of CPU fan connectors2
Number of RGB LED pin headers1
Number of water pump connectors1
Number of EPS power connectors (8-pin)2
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
USB 2.0 connectors2
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
BIOS typeUEFI AMI
Antenna includedYes
Cables includedSATA
RAID levels1
Number of storage drives supported7
Supported storage drive typesHDD & SSD
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
RAID supportYes
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Headphone outputs1
WiFi-AP antenna jack2
HDMI version2.1
Microphone inYes
Thunderbolt ports quantity1
Ethernet LAN (RJ-45) ports1
USB connector typeUSB Type-A
S/PDIF out portYes
USB 2.0 ports quantity6
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots3
1st M.2 highest PCI Express generation5.0
3rd M.2 largest key size2280
1st M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
2nd M.2 highest PCI Express generation4.0
PCI Express x16 (Gen 5.x) slots1
2nd M.2 largest key size2280
WarningsDo not open or modify the motherboard to prevent damage.
