MSI PRO B860-P motherboard Intel B860 LGA 1851 (Socket V1) ATX

MSI

MSI PRO B860-P motherboard Intel B860 LGA 1851 (Socket V1) ATX

Delivery to the store takes 3 - 7 business days.
ID: 163173
Product Code: PRO B860-P
Barcode 4711377289757
169.71€
(Ex Tax: 136.86€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 1851 (Socket V1)
Supported processor socketsLGA 1851
Processor manufacturerIntel
Compatible processor seriesIntel Core Ultra (Series 2)
Maximum internal memory supported by processor256 GB
Motherboard form factorATX
Motherboard chipsetIntel B860
Product colourBlack
Audio chipRealtek ALC897
Audio output channels7.1 channels
Windows operating systems supportedWindows 11 x64
Motherboard chipset familyAMD
ECC сompatibilityNon-ECC
Memory channelsDual-channel
Supported memory clock speeds8800 MHz
Maximum internal memory256 GB
Supported memory clock speed (max)8800 MHz
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Number of memory slots4
Width243.8 mm
Depth304.8 mm
Wi-FiNo
Ethernet LANYes
Ethernet interface type5 Gigabit Ethernet
Number of water pump connectors1
Total number of SATA connectors4
USB 2.0 connectors4
Number of CPU fan connectors1
Number of RGB LED pin headers3
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
CPU fan connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
Number of SATA III connectors4
RGB LED pin headerYes
BIOS typeUEFI AMI
RAID supportYes
Supported storage drive interfacesM.2, Micro SATA III
RAID levels1
Supported storage drive typesHDD & SSD
Number of storage drives supported7
Number of HDDs supported4

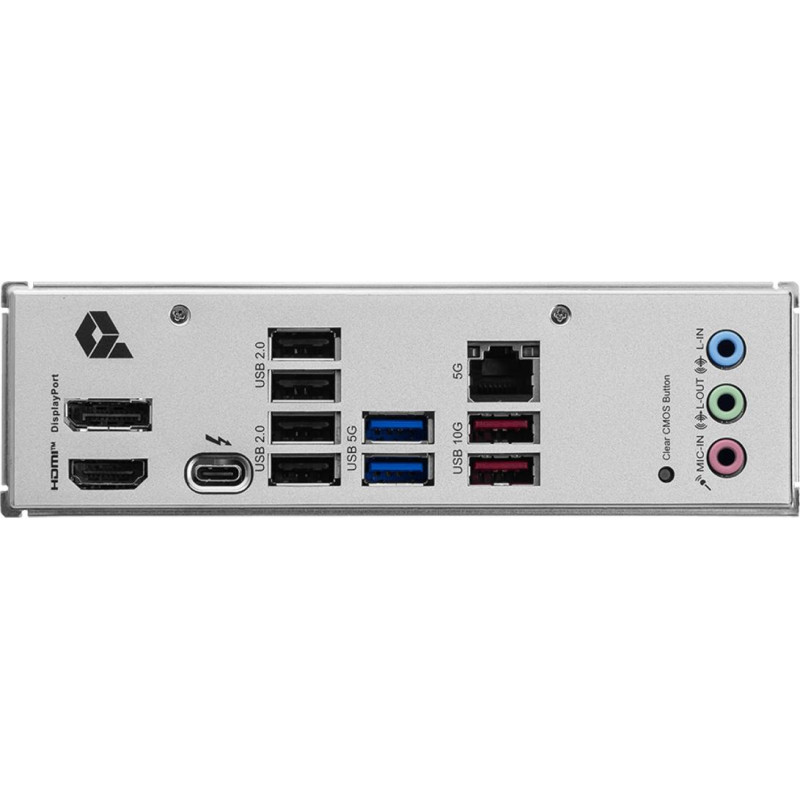

HDMI ports quantity1
HDMI version2.1
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 2.0 ports quantity4
Number of M.2 (M) slots3
PCI Express x16 (Gen 5.x) slots1
1st M.2 highest PCI Express generation5.0
3rd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
2nd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
PCI Express x16 (Gen 4.x) slots3
WarningsDo not open or modify the motherboard to prevent damage.
