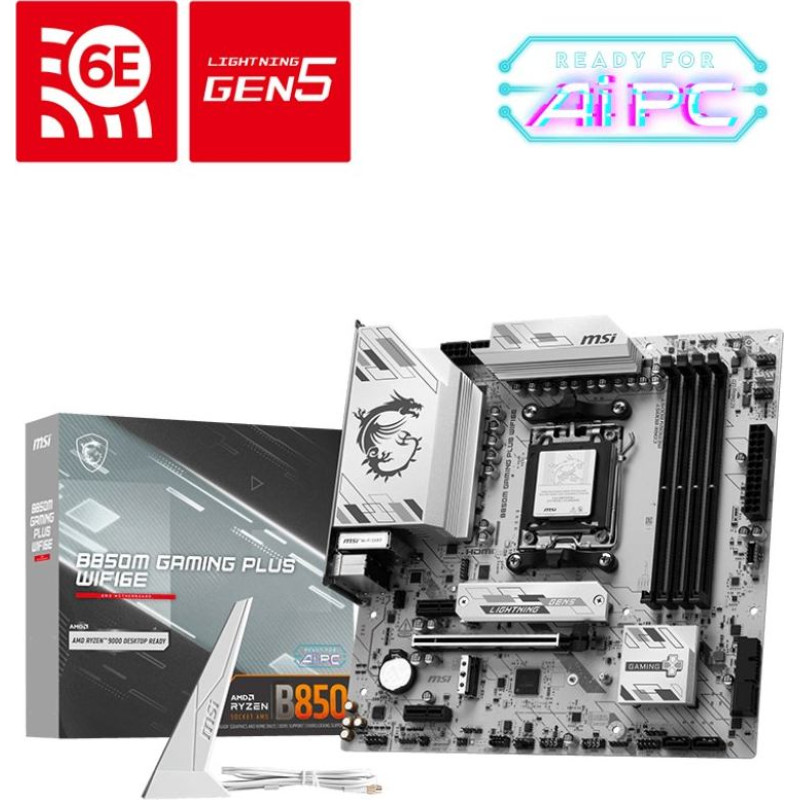

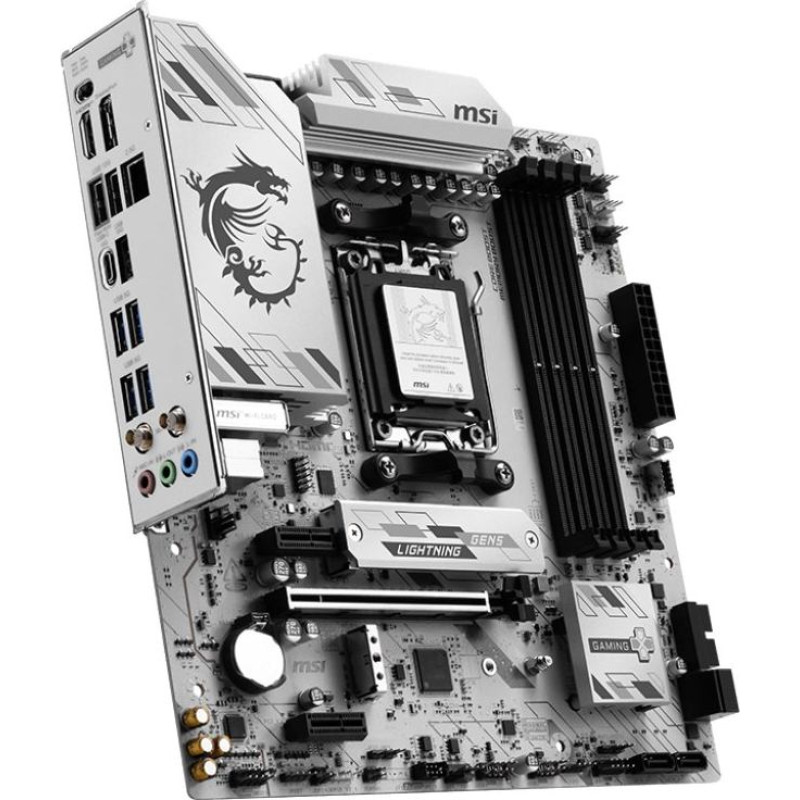

MSI B850M GAMING PLUS WIFI6E motherboard

MSI

MSI B850M GAMING PLUS WIFI6E motherboard

Delivery to the store takes 3 - 7 business days.
ID: 163189
Product Code: 7E81-001R
Barcode 4711377365345
132.37€
(Ex Tax: 106.75€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor manufacturerAMD
Supported processor socketsSocket AM5
Compatible processor seriesAMD Ryzen 9000 Series
Processor socketSocket AM5
Motherboard chipsetAMD B850
Audio output channels7.1 channels
Windows operating systems supportedWindows 11 x64
Motherboard chipset familyAMD
Audio chipRealtek ALC897
Motherboard form factormicro ATX
Memory channelsDual-channel
Supported memory clock speeds4800
Maximum internal memory256 GB
ECC сompatibilityNon-ECC
Number of memory slots4
Supported memory typesDDR5-SDRAM
Supported memory clock speed (max)8200 MHz
Width243.8 mm
Depth243.8 mm
Wi-Fi standards802.11g
BluetoothYes
LAN controllerRealtek RTL8125D
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-FiYes
Bluetooth version5.3
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
Total number of SATA connectors4
USB 2.0 connectors4
Front panel audio connectorYes
TPM connectorYes
ATX Power connector (24-pin)Yes
Front panel connectorYes
CPU fan connectorYes
Number of RGB LED pin headers4
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
RGB LED pin headerYes
RAID levels10
Supported storage drive typesHDD & SSD
RAID supportYes
Number of storage drives supported6
Number of HDDs supported4

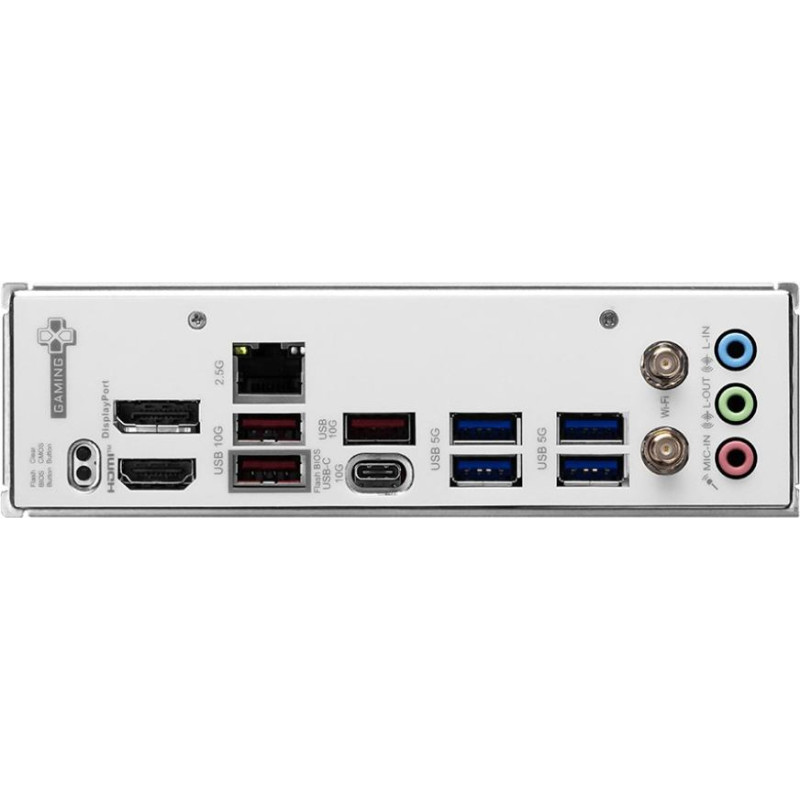

HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
DisplayPorts quantity1
Clear CMOS buttonYes
DisplayPort version1.4
PCI Express x16 slots1
Number of M.2 (M) slots2
2nd M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
PCI Express x1 slots2
