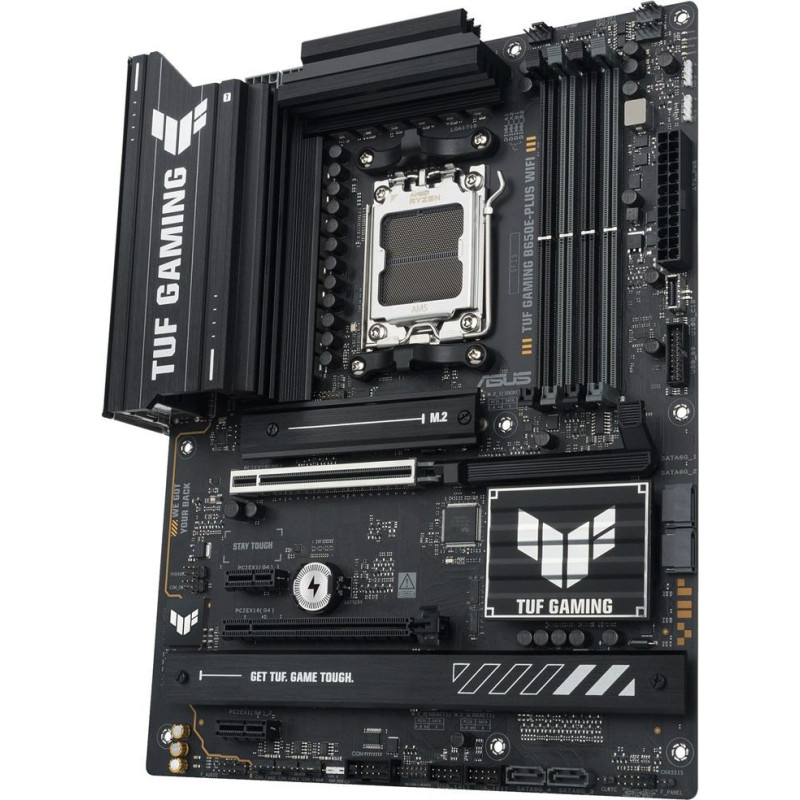

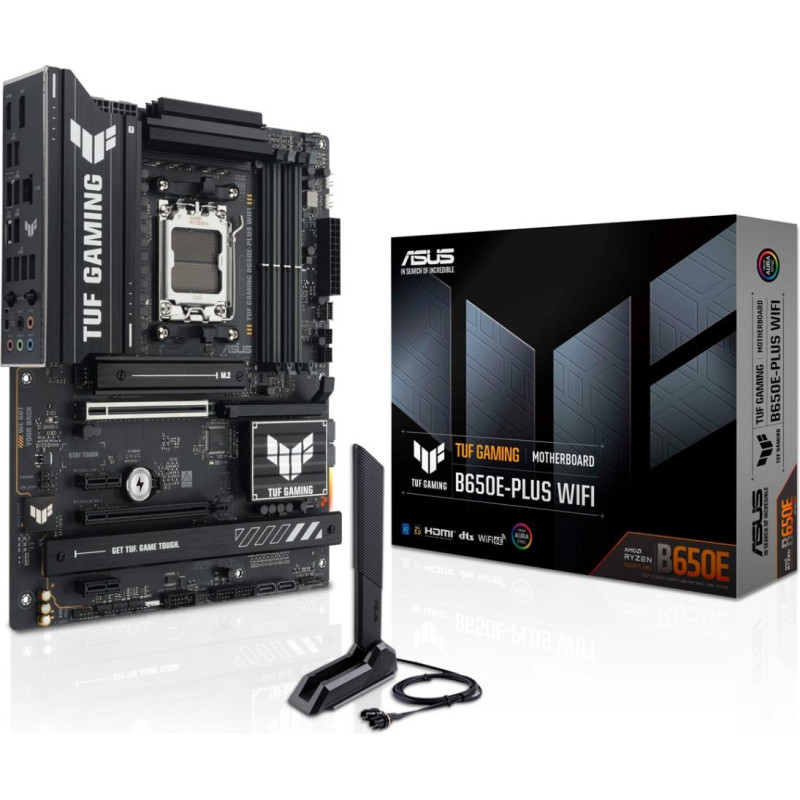

Asus TUF GAMING B650E-PLUS WIFI AMD B650 Socket AM5 ATX

Asus TUF GAMING B650E-PLUS WIFI AMD B650 Socket AM5 ATX

Delivery to the store takes 3 - 7 business days.
ID: 163193
Product Code: 90MB1M20-M0EAY0
Barcode 4711387995488
265.69€
(Ex Tax: 214.27€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsSocket AM5
Compatible processor seriesAMD Ryzen 8000 Series
Processor manufacturerAMD
Processor socketSocket AM5
Parallel processing technology supportNot supported
On-board graphics cardNo
Motherboard chipsetAMD B650
Motherboard form factorATX
Product colourBlack
Audio chipRealtek ALC1220P
Motherboard chipset familyAMD
Audio output channels7.1 channels
Cooling typePassive
Windows operating systems supportedWindows 11
Maximum internal memory256 GB
Unbuffered memoryYes
Memory channelsDual-channel
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
ECC сompatibilityECC & Non-ECC
Number of memory slots4
Depth244 mm
Width305 mm
BluetoothYes
Wi-Fi standardsWi-Fi 6E (802.11ax)
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Bluetooth version5.3
Number of SATA III connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Front panel audio connectorYes
USB 2.0 connectors2
ATX Power connector (24-pin)Yes
Thunderbolt headers1
Number of COM connectors1
Number of chassis fan connectors4
Chassis intrusion connectorYes
Front panel connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of CPU fan connectors1
12V power connectorYes
BIOS typeUEFI AMI
Package weight1.39 kg
Package width353 mm
Package depth273 mm
Package height68 mm
Cables includedSATA
Antenna includedYes
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
RAID levels1
Number of storage drives supported7
Number of HDDs supported4
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
USB 2.0 ports quantity6
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
Microphone inYes
WiFi-AP antenna jack1
USB 3.2 Gen 2x2 Type-C ports quantity1
Line-inYes
Number of M.2 (M) slots3
3rd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
2nd M.2 largest key size22110
3rd M.2 highest PCI Express generation4.0
1st M.2 highest PCI Express generation5.0
PCI Express x16 (Gen 5.x) slots1
1st M.2 largest key size2280
PCI Express x1 (Gen 4.x) slots2
PCI Express x16 (Gen 4.x) slots1
