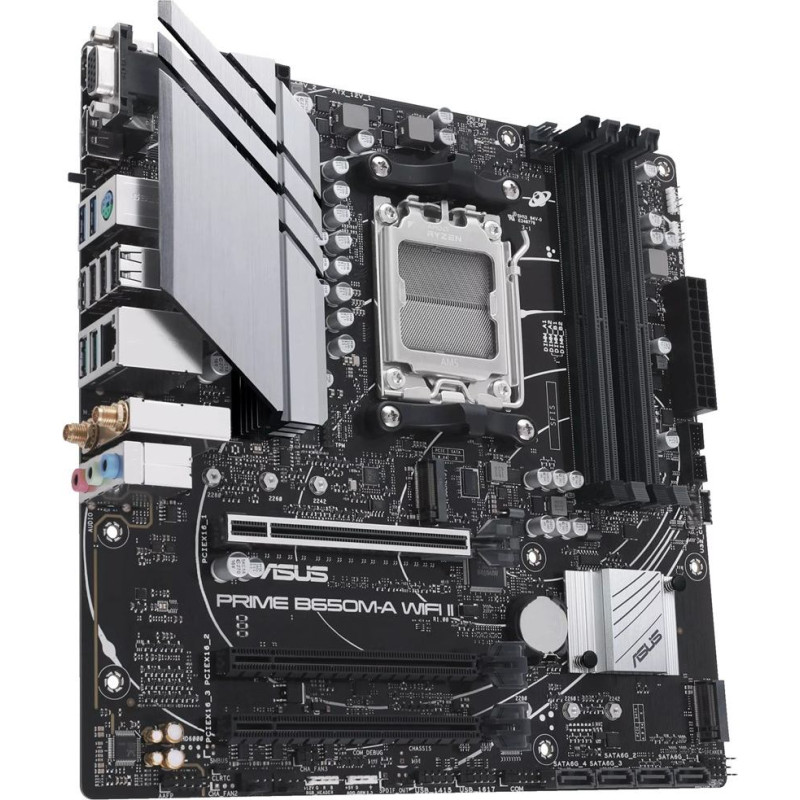

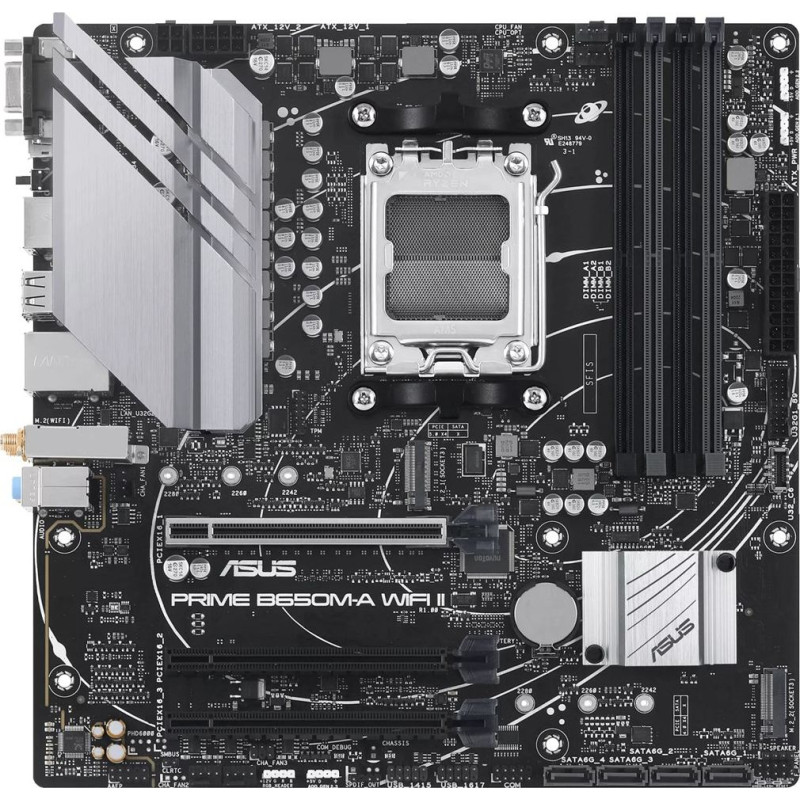

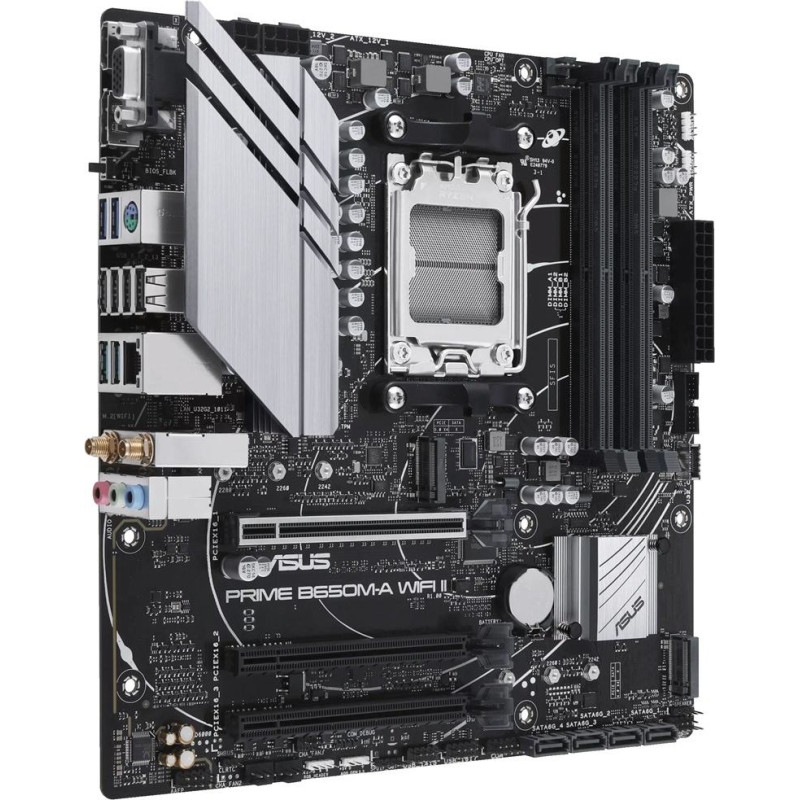

Asus PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX

Asus PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX

Delivery to the store takes 3 - 7 business days.
ID: 163195
Product Code: 90MB1EG0-M0EAY0
Barcode 4711387034934
134.37€
(Ex Tax: 108.36€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen™ 7
Processor manufacturerAMD
Audio output channels7.1 channels
Windows operating systems supportedWindows 11
Power source typeATX
Motherboard chipset familyAMD
Motherboard form factormicro ATX
Motherboard chipsetAMD B650
Unbuffered memoryYes
ECC сompatibilityECC & Non-ECC
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speeds6000
Maximum internal memory128 GB
Width244 mm
Depth244 mm
Wi-FiYes
Wi-Fi standards802.11g
Ethernet LANYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Bluetooth version5.2
Ethernet interface type2.5 Gigabit Ethernet
BluetoothYes
TPM connectorYes
CPU fan connectorYes
Front panel connectorYes
Audio connectorYes
EPS power connector (8-pin)Yes
USB 2.0 connectors2
RGB LED pin headerYes
Power fan connectorYes
Total number of SATA connectors4
S/PDIF out connectorYes
Number of SATA connectors4
Number of COM connectors1
Peripheral (Molex) power connectors (4-pin)4
ATX Power connector (24-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
12V power connectorYes
Number of chassis fan connectors3
Clear CMOS buttonYes
BIOS typeUEFI AMI
Bundled softwareASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Cables includedSATA
Number of HDDs supported4
RAID supportYes
RAID levels10
Number of storage drives supported2
Supported storage drive interfacesM.2, PCI Express 4.0, PCI Express 5.0, SATA
Supported storage drive typesHDD & SSD
Ethernet LAN (RJ-45) ports1
USB connector typeUSB Type-A
Headphone outputs1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
DisplayPorts quantity1
Line-inYes
Microphone inYes
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
VGA (D-Sub) ports quantity1
USB 2.0 ports quantity4
PCI Express x16 (Gen 4.x) slots3
WarningsAvoid contact with liquids to prevent electronic damage.
