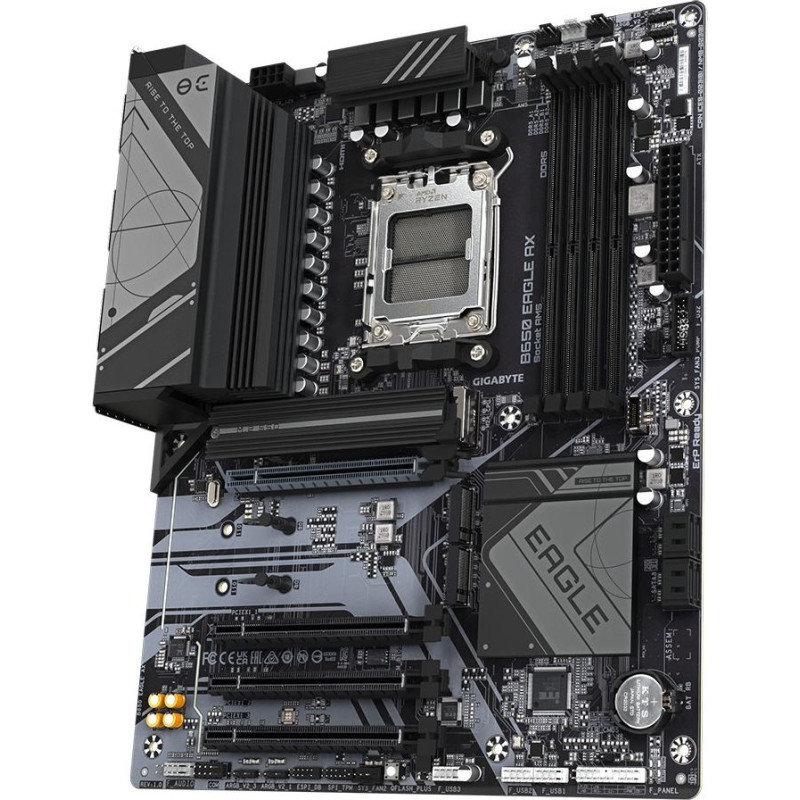

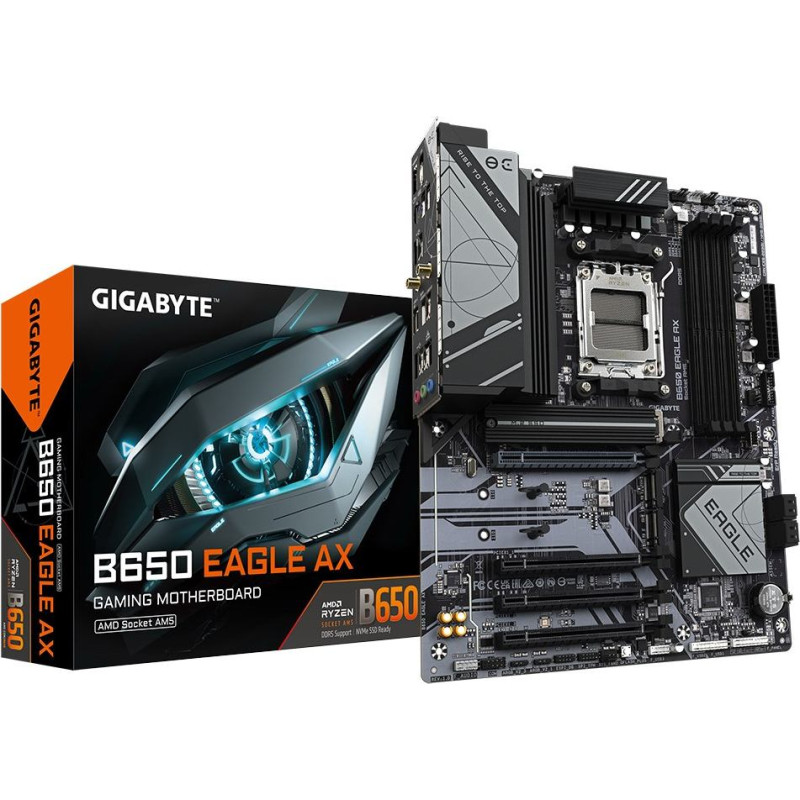

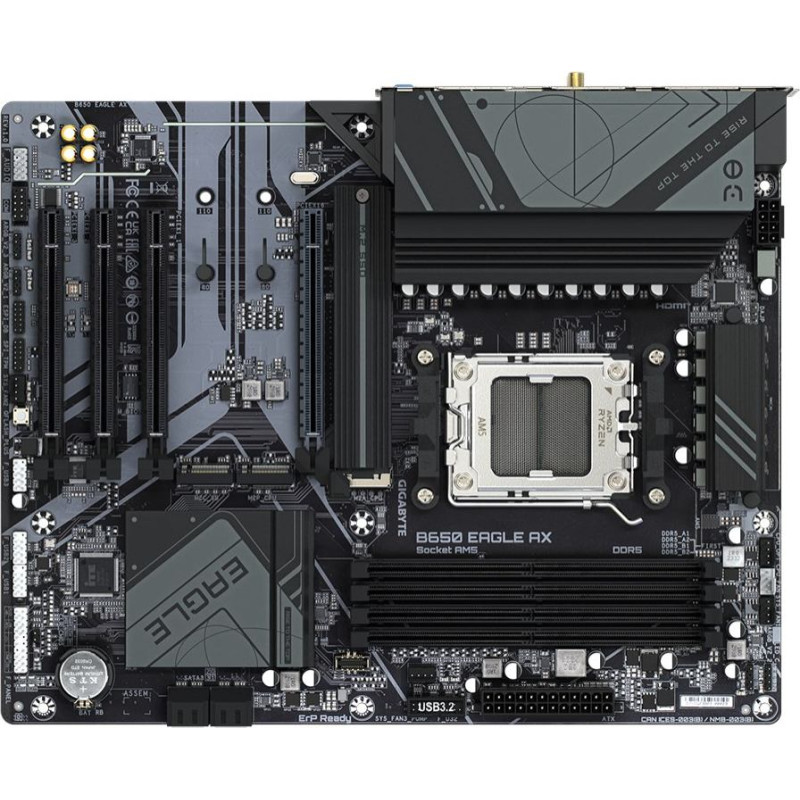

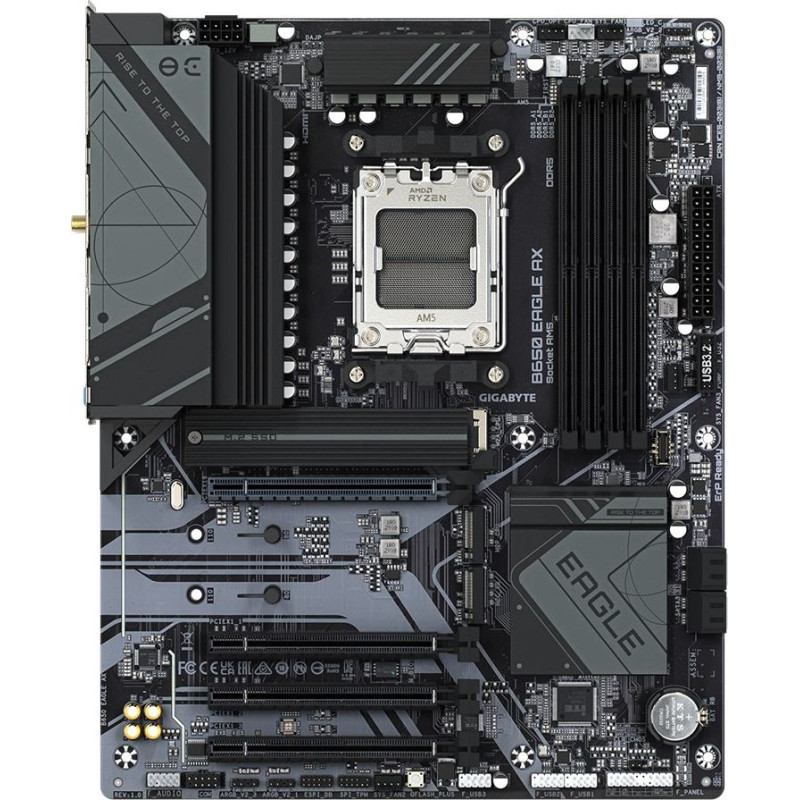

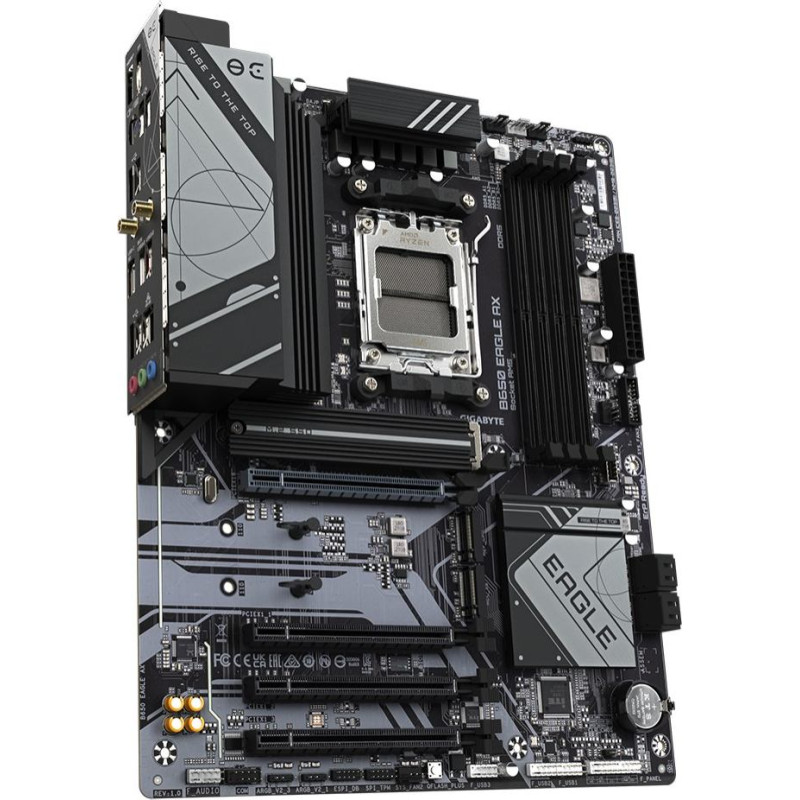

Gigabyte B650 EAGLE AX Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2

GIGABYTE

Gigabyte B650 EAGLE AX Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2

Delivery to the store takes 3 - 7 business days.
ID: 163204
Product Code: B650 EAGLE AX
Barcode 4719331860158
135.88€
(Ex Tax: 109.58€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Supported processor socketsSocket AM5
Processor socketSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 7000 Series
DirectX version12.0
HDCPYes
Maximum resolution4096 x 2160 pixels
Parallel processing technology supportNot supported
Audio output channels7.1 channels
Motherboard chipsetAMD B650
Product colourBronze
Motherboard chipset familyAMD
Audio chipRealtek ALC897
Motherboard form factorATX
PC health monitoringFan
Power source typeATX
Windows operating systems supportedWindows 10 x64
Unbuffered memoryYes
Supported memory clock speeds6000
Maximum internal memory256 GB
Supported memory clock speed (max)7600 MHz
ECC сompatibilityNon-ECC
Memory channelsDual-channel
Number of memory slots4
Maximum internal memory per slot64 GB
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Width305 mm
Depth244 mm
Height35 mm
LAN controllerRealtek RTL8111H
BluetoothYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Bluetooth version5.3
Ethernet LANYes
WLAN controller modelRealtek RTL8852CE
Wi-FiYes
Ethernet interface typeGigabit Ethernet
Wi-Fi standardsWi-Fi 6E (802.11ax)
Number of SATA III connectors4
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Serial port headers1
EPS power connector (8-pin)Yes
USB 2.0 connectors3
Front panel connectorYes
CPU fan connectorYes
ATX Power connector (24-pin)Yes
Number of chassis fan connectors3
TPM connectorYes
Number of CPU fan connectors2
Number of RGB LED pin headers4
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of water pump connectors2
RGB LED pin headerYes
12V power connectorYes
BIOS typeUEFI AMI
Desktop Management Interface (DMI) version2.7
Clear CMOS jumperYes
Package weight1.94 kg
Package depth270 mm
Package width335 mm
Package height80 mm
Bundled softwareNorton Internet Security (OEM version) LAN bandwidth management software
Batteries includedYes
Screws includedYes
Antenna includedYes
Supported storage drive interfacesM.2, SATA III
RAID levels1
RAID supportYes
Supported storage drive typesHDD & SSD
Number of storage drives supported7
Number of HDDs supported4
DisplayPort version1.4

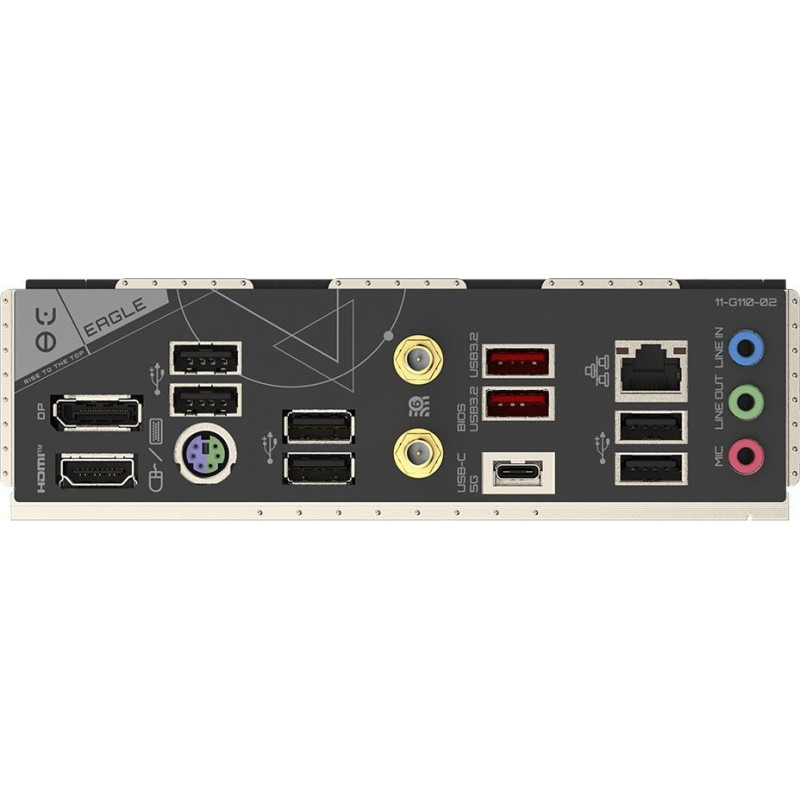

Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
USB 2.0 ports quantity6
HDMI ports quantity1
WiFi-AP antenna jack2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
PS/2 ports quantity1
Line-inYes
Headphone outputs1
Microphone inYes
HDMI version2.1
PCI Express x16 (Gen 3.x) slots3
Number of M.2 (M) slots3
1st M.2 highest PCI Express generation5.0
PCI Express x16 (Gen 4.x) slots1
1st M.2 largest key size25110
2nd M.2 highest PCI Express generation4.0
3rd M.2 highest PCI Express generation4.0
3rd M.2 largest key size22110
2nd M.2 largest key size22110
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery0.07 g
Number of battery cells1
Battery typeCR2032
Battery weight3 g
Country of originChina
Products per shipping (inner) case1 pc(s)
WarningsDispose of in accordance with local regulations for electronic waste.
