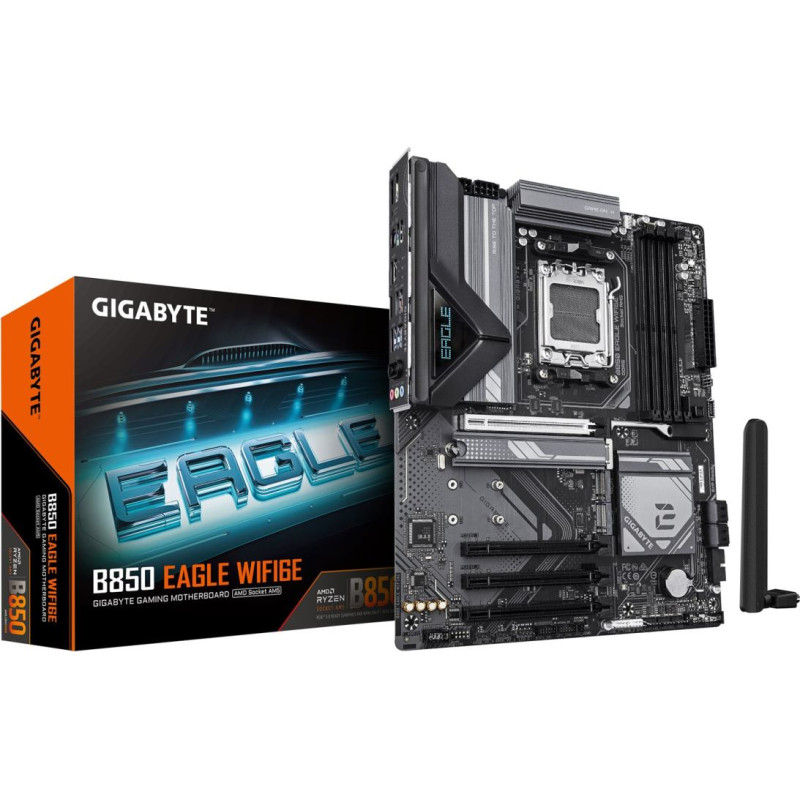

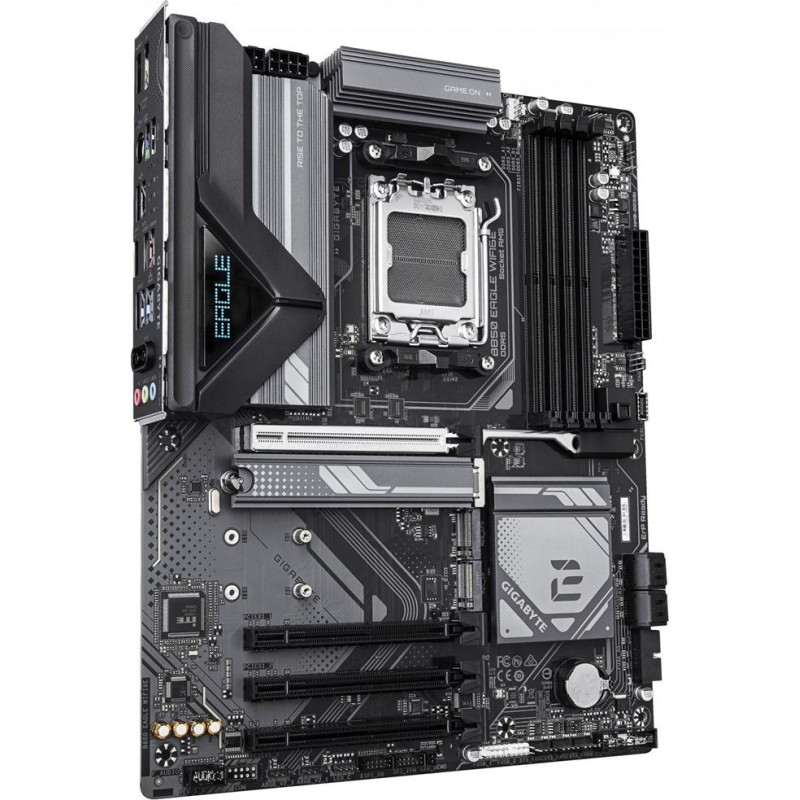

Gigabyte B850 EAGLE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2

GIGABYTE

Gigabyte B850 EAGLE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2

Out Of Stock
ID: 163207
Product Code: B850 EAGLE WIFI6E
Barcode 4719331866587
163.79€
(Ex Tax: 132.09€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Compatible processor seriesAMD Ryzen 9000 Series
Processor manufacturerAMD
Supported processor socketsSocket AM5
Processor socketSocket AM5
DirectX version12.0
HDCPYes
Maximum resolution4096 x 2160 pixels
Parallel processing technology supportNot supported
Product colourBronze
Motherboard chipsetAMD B850
Motherboard chipset familyAMD
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 11 x64
Motherboard form factorATX
PC health monitoringVoltage
Supported memory clock speeds7600 MHz
Unbuffered memoryYes
Maximum internal memory256 GB
Supported memory clock speed (max)8200 MHz
Memory channelsDual-channel
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
ECC сompatibilityNon-ECC
Maximum internal memory per slot64 GB
Number of memory slots4
Depth244 mm
Height35 mm
Width305 mm
BluetoothYes
Ethernet interface typeGigabit Ethernet
WLAN controller modelRealtek RTL8111H
Ethernet LANYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standardsWi-Fi 5 (802.11ac)
Wi-FiYes
Bluetooth version5.3
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
ATX Power connector (24-pin)Yes
USB 2.0 connectors2
Number of water pump connectors2
Number of SATA III connectors4
Peripheral (Molex) power connectors (4-pin)1
TPM connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Number of RGB LED pin headers4
Total number of SATA connectors4
Front panel connectorYes
Front panel audio connectorYes
RGB LED pin headerYes
Number of EPS power connectors (8-pin)1
Serial port headers1
12V power connectorYes
Number of CPU fan connectors2
Number of chassis fan connectors3
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
Clear CMOS jumperYes
BIOS typeUEFI AMI
Package depth270 mm
Package weight1.93 kg
Package width335 mm
Package height80 mm
Bundled softwareNorton Internet Security (OEM version) LAN bandwidth management software
Batteries includedYes
Antenna includedYes
Screws includedYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
RAID supportYes
Number of storage drives supported7
Number of HDDs supported4

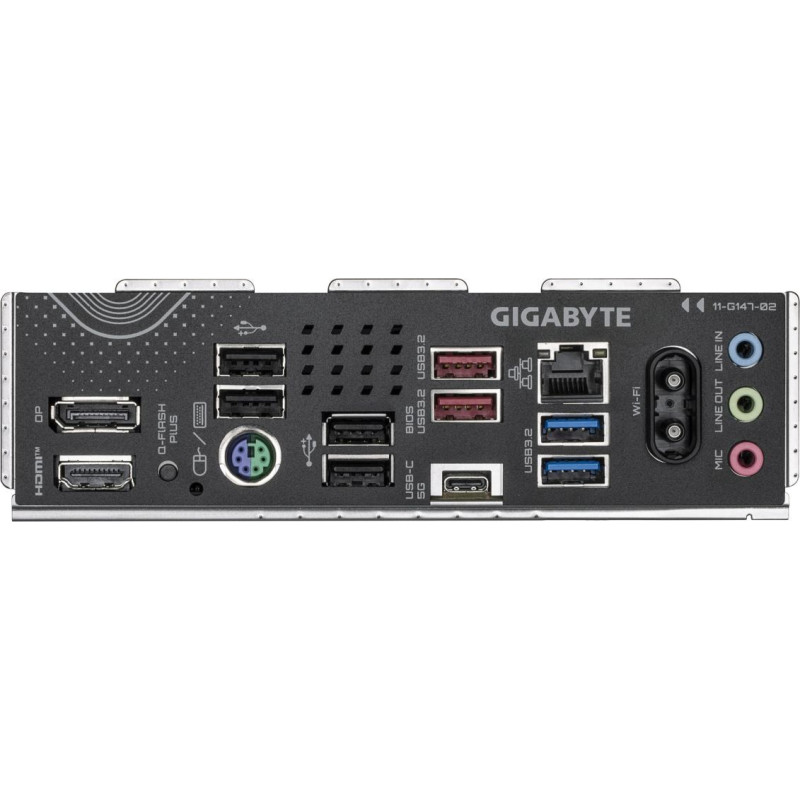

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Headphone outputs1
Microphone inYes
Ethernet LAN (RJ-45) ports1
DisplayPort version2.1
DisplayPorts quantity1
WiFi-AP antenna jack2
HDMI version2.1
USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI ports quantity1
PCI Express x16 (Gen 5.x) slots1
PCI Express x16 (Gen 3.x) slots3
Number of M.2 (M) slots3
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size25110
3rd M.2 largest key size22110
3rd M.2 highest PCI Express generation4.0
Battery typeCR2032
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery0.07 g
Number of battery cells1
Battery weight3 g
Weight1.68 kg
Country of originChina
Products per shipping (inner) case1 pc(s)
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
