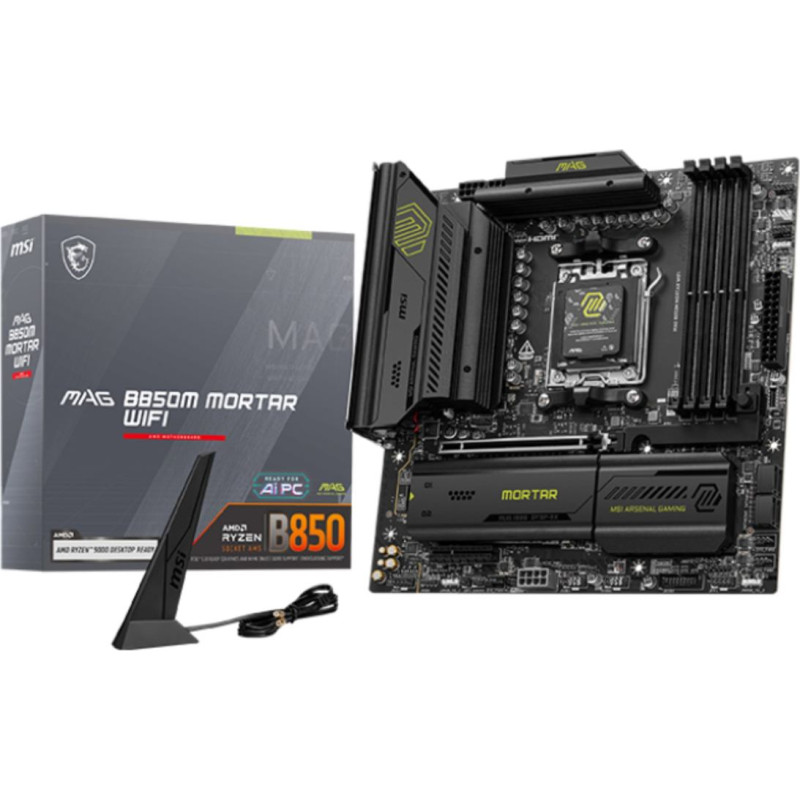

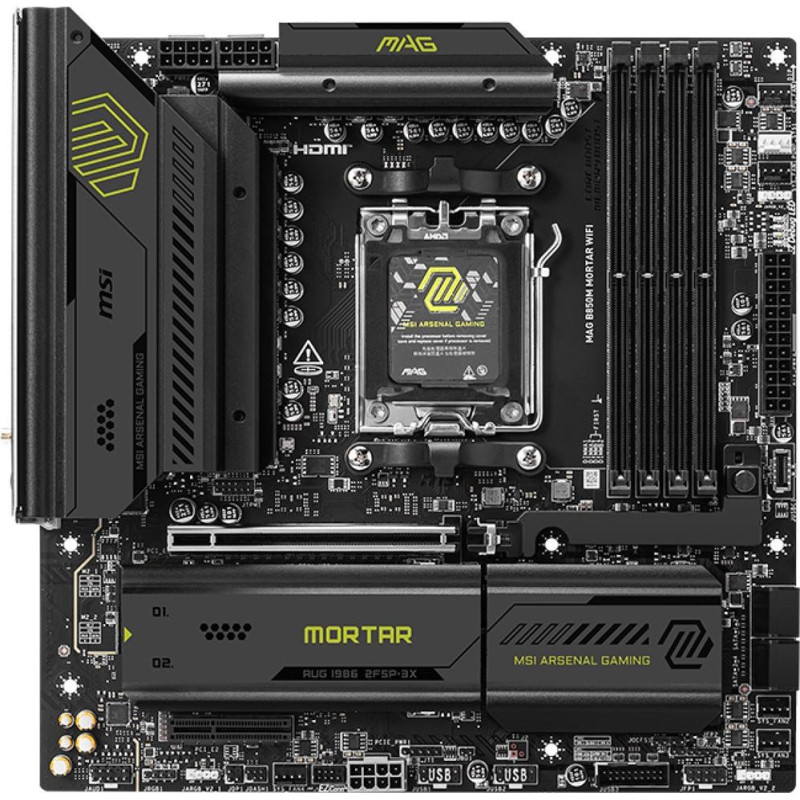

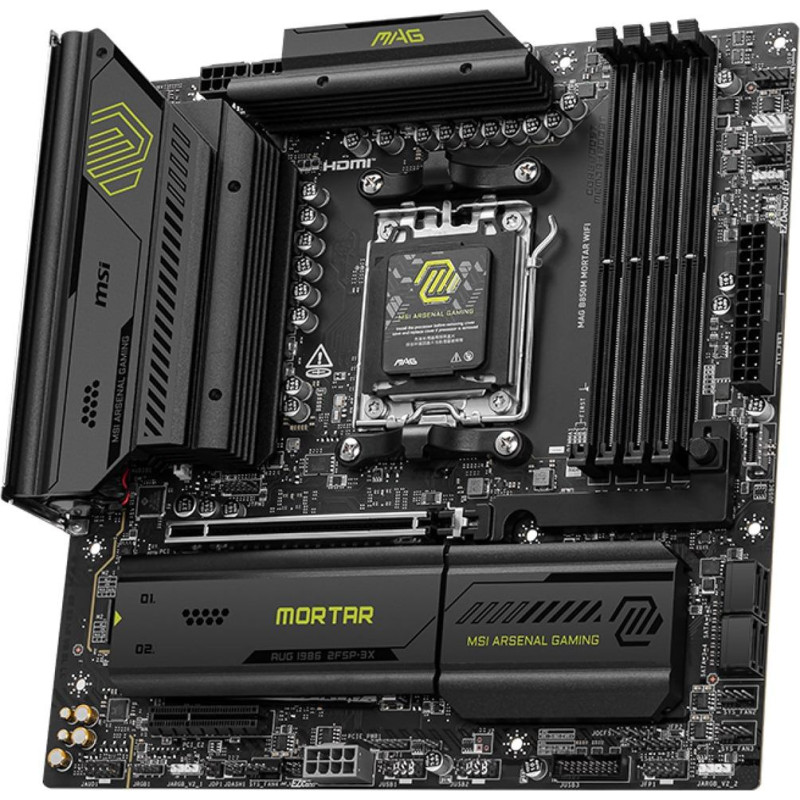

MSI MAG B850M MORTAR WIFI motherboard AMD B850 Socket AM5 micro ATX

MSI

MSI MAG B850M MORTAR WIFI motherboard AMD B850 Socket AM5 micro ATX

Delivery to the store takes 3 - 7 business days.
ID: 163219
Product Code: MAG B850M MORTAR WIFI
Barcode 4711377321150
228.30€
(Ex Tax: 184.12€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 8000 Series
Processor manufacturerAMD
Supported processor socketsSocket AM5
On-board graphics cardNo
Motherboard chipsetAMD B850
Motherboard form factormicro ATX
Audio output channels7.1 channels
Product colourBlack
Audio chipRealtek ALC4080
Motherboard chipset familyAMD
Windows operating systems supportedWindows 11 x64
Supported memory clock speed (max)8200 MHz
ECC сompatibilityNon-ECC
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds8200 MHz
Number of memory slots4
Maximum internal memory256 GB
Width243.8 mm
Depth243.8 mm
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 4 (802.11n)
Ethernet interface type5 Gigabit Ethernet
Bluetooth version5.4
BluetoothYes
Wi-FiYes
Ethernet LANYes
Number of CPU fan connectors2
Number of water pump connectors1
Number of RGB LED pin headers3
ATX Power connector (24-pin)Yes
USB 2.0 connectors4
Number of SATA III connectors4
Total number of SATA connectors4
RGB LED pin headerYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Front panel connectorYes
CPU fan connectorYes
BIOS typeUEFI AMI
Number of HDDs supported4
Supported storage drive interfacesM.2
Number of storage drives supported7
RAID supportYes
RAID levels10
Supported storage drive typesHDD & SSD
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
HDMI ports quantity1
HDMI version2.1
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation5.0
3rd M.2 highest PCI Express generation4.0
1st M.2 highest PCI Express generation5.0
PCI Express x16 (Gen 5.x) slots1
3rd M.2 largest key size2280
2nd M.2 largest key size2280
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 slots1
PCI Express x4 slots1
Number of M.2 (M) slots3
