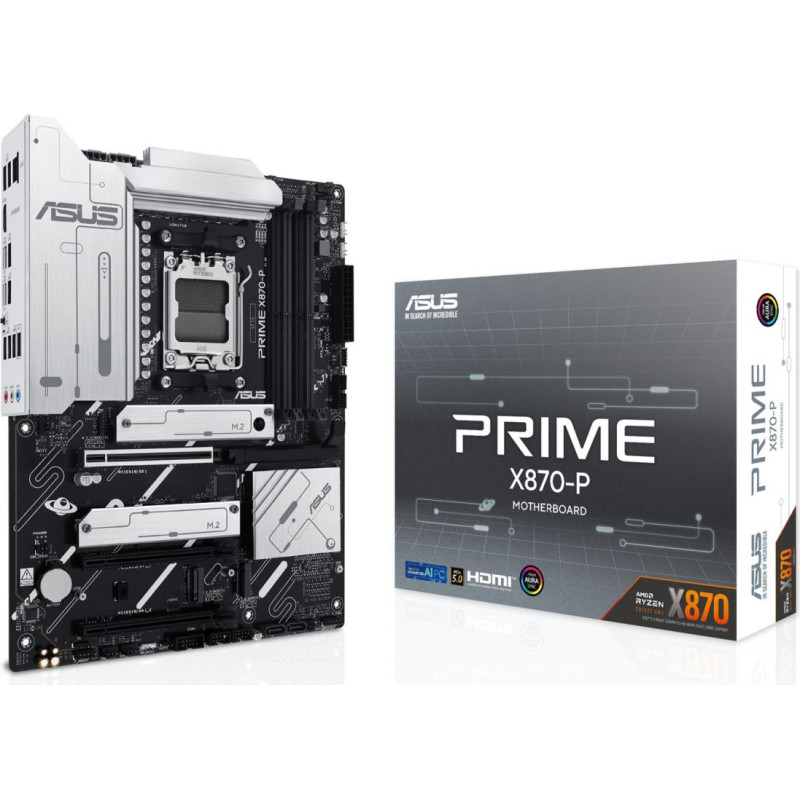

Asus PRIME X870-P AMD X870 Socket AM5 ATX

Asus PRIME X870-P AMD X870 Socket AM5 ATX

Delivery to the store takes 3 - 7 business days.
ID: 163222
Product Code: 90MB1IT0-M0EAY0
Barcode 4711387723036
204.05€
(Ex Tax: 164.56€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketSocket AM5
Supported processor socketsSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series
Processor manufacturerAMD
On-board graphics cardNo
Parallel processing technology supportNot supported
Windows operating systems supportedWindows 10
Cooling typePassive
Audio output channels7.1 channels
Motherboard form factorATX
Motherboard chipsetAMD X870
Motherboard chipset familyAMD
Product colourBlack
Power source typeATX
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Number of memory slots4
Supported memory clock speed (max)8000 MHz
ECC сompatibilityECC & Non-ECC
Maximum internal memory192 GB
Unbuffered memoryYes
Width305 mm
Depth244 mm
Height48 mm
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiNo
CPU fan connectorYes
TPM connectorYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of chassis fan connectors4
EPS power connector (8-pin)Yes
RGB LED pin headerYes
12V power connectorYes
Number of COM connectors1
Number of SATA III connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
USB 2.0 connectors2
BIOS typeUEFI AMI
Package depth273 mm
Package width353 mm
Package height68 mm
Package weight1.5 kg
Cables includedSATA
Number of storage drives supported6
Number of HDDs supported2
RAID supportYes
Supported storage drive interfacesM.2, SATA III
RAID levels1
Supported storage drive typesHDD & SSD
Line-inYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
Microphone inYes
HDMI version2.1
USB4 Gen 2x2 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
DisplayPort version1.4a
PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots4
Back-to-BIOS buttonYes
Weight1.44 kg
WarningsAvoid contact with liquids to prevent electronic damage.
