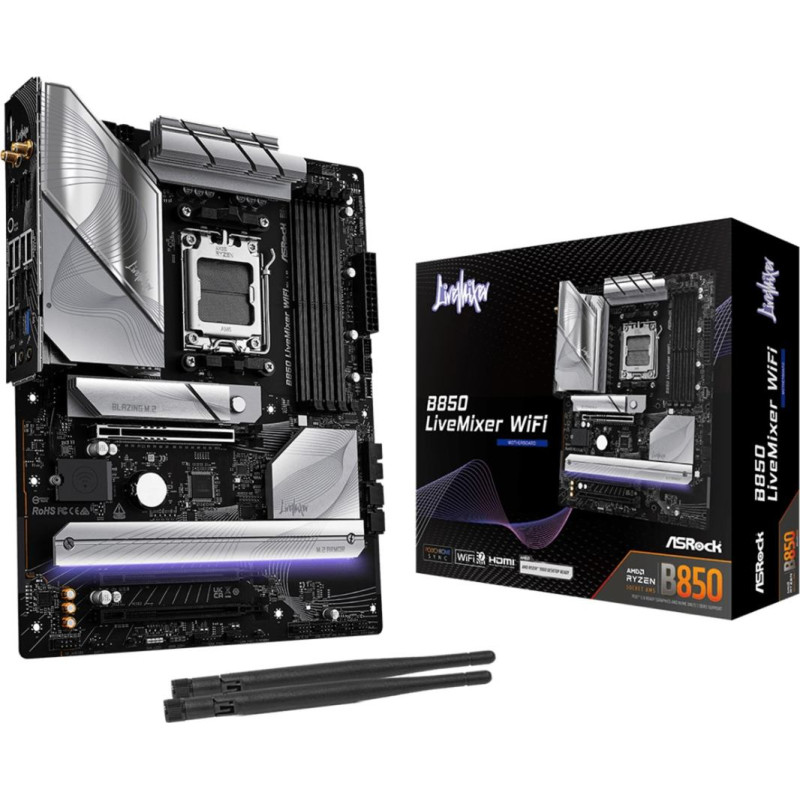

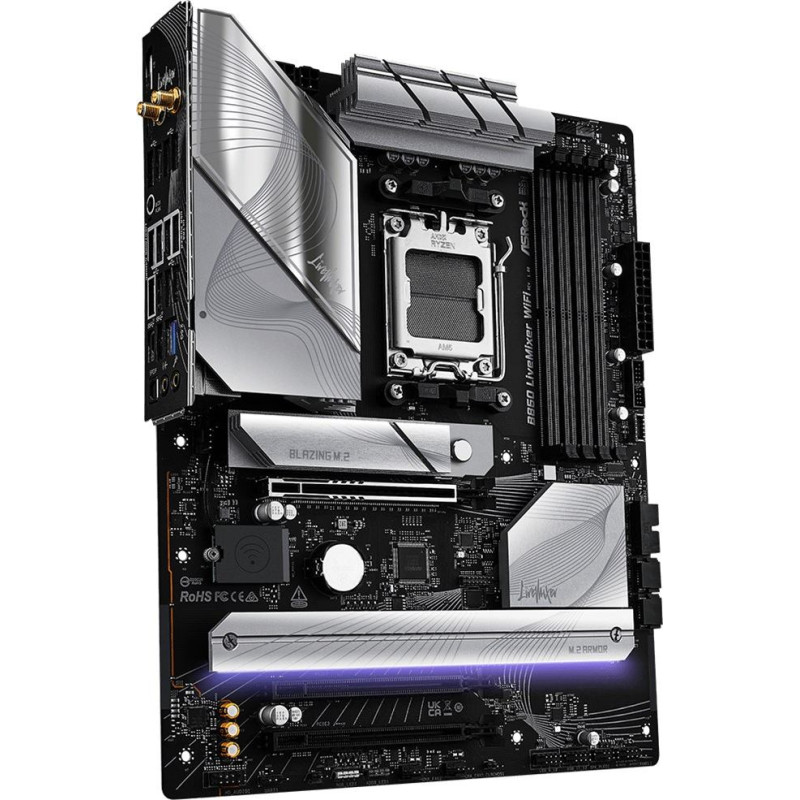

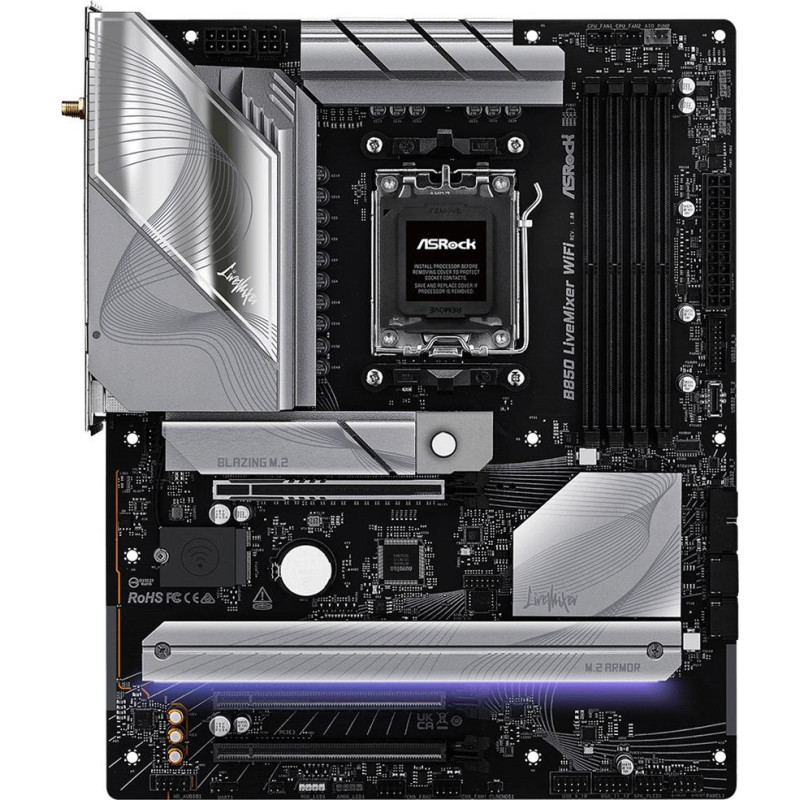

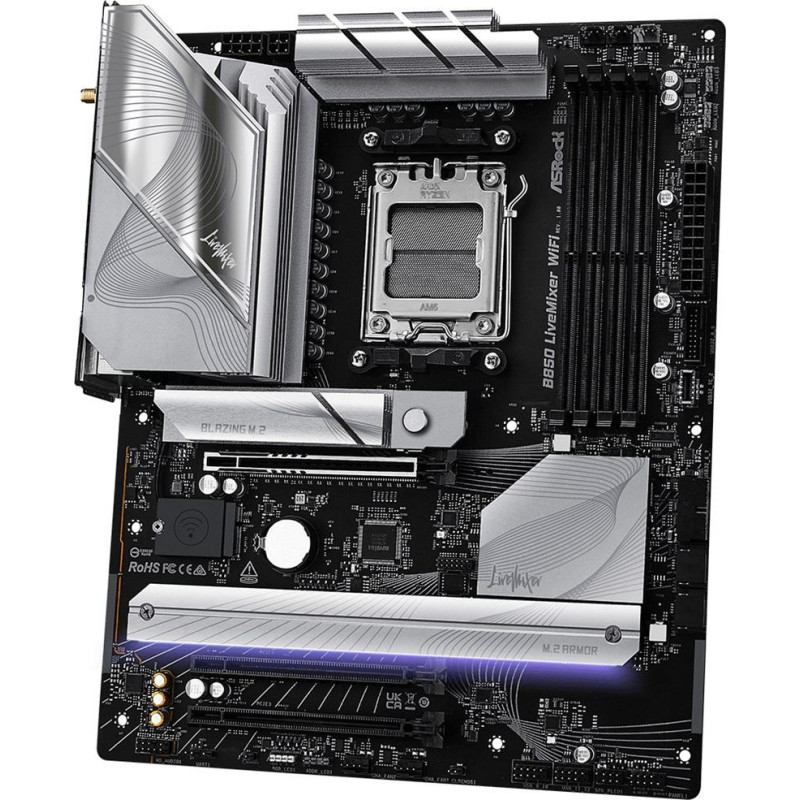

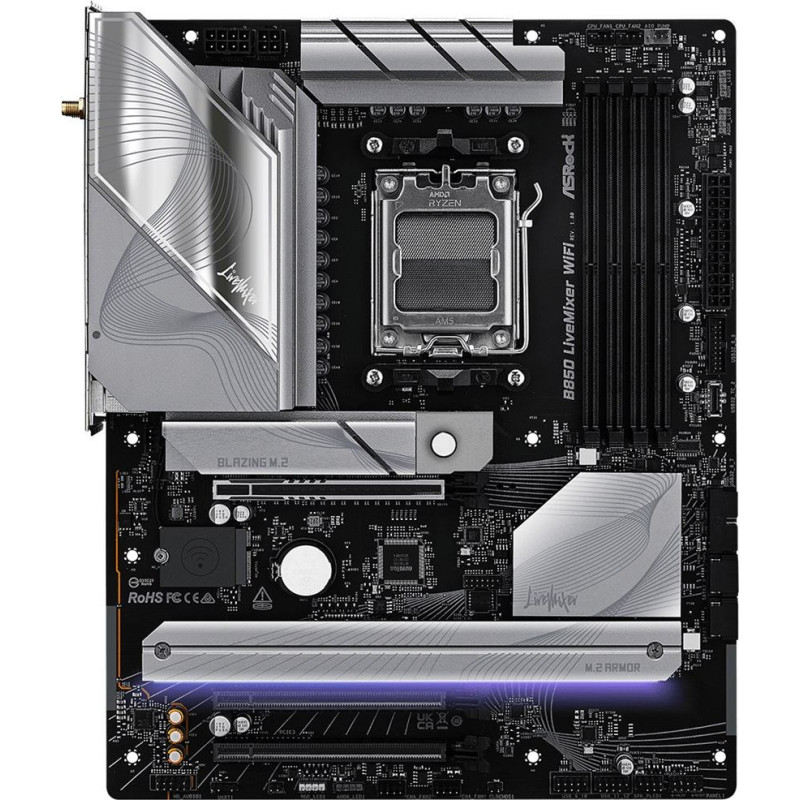

Asrock B850 LiveMixer WiFi AMD B850 Socket AM5 ATX

Asrock B850 LiveMixer WiFi AMD B850 Socket AM5 ATX

Delivery to the store takes 3 - 7 business days.
ID: 163225
Product Code: B850 LIVEMIXER WIFI
Barcode 4711581490154
176.05€
(Ex Tax: 141.97€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 7000 Series
Supported processor socketsSocket AM5
Maximum resolution3840 x 2160 pixels
Parallel processing technology supportNot supported
HDCPYes
CertificationFCC, CE, ErP/EuP
Product colourBlack
Motherboard chipset familyAMD
Audio chipRealtek ALC1220
Motherboard form factorATX
Windows operating systems supportedWindows 10 x64
Audio output channels7.1 channels
Motherboard chipsetAMD B850
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory channelsDual-channel
Unbuffered memoryYes
Maximum internal memory256 GB
ECC сompatibilityECC & Non-ECC
Width305 mm
Depth244 mm
Wi-FiYes
Bluetooth version5.4
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Wi-Fi standardsWi-Fi 4 (802.11n)
LAN controllerDragon RTL8125BG
BluetoothYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
12V power connectorYes
RGB LED pin headerYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
USB 3.2 Gen 2x2 connectors1
EPS power connector (8-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
TPM connectorYes
Number of SATA III connectors2
USB 2.0 connectors2
Front panel audio connectorYes
Number of chassis fan connectors3
Number of CPU fan connectors2
Number of EPS power connectors (8-pin)1
Number of water pump connectors1
Number of RGB LED pin headers4
BIOS typeUEFI AMI
Antenna includedYes
Cables includedSATA
RAID levels1
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive typesHDD & SSD
RAID supportYes
Number of storage drives supported5
WiFi-AP antenna jack2

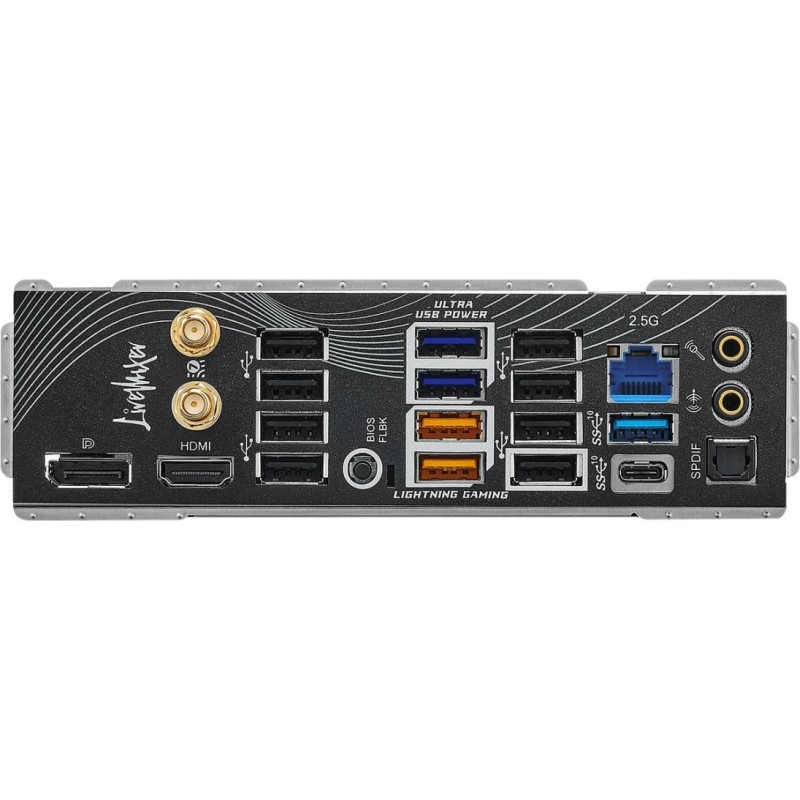

Headphone outputs1
USB connector typeUSB Type-A
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
DisplayPorts quantity1
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
DisplayPort version1.4
Microphone inYes
HDMI version2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 2.0 ports quantity8
S/PDIF out portYes
PCI Express x16 (Gen 5.x) slots1
PCI Express x16 (Gen 4.x) slots2
Number of M.2 (M) slots3
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation4.0
3rd M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
3rd M.2 largest key size2280
1st M.2 largest key size2280
WarningsAvoid contact with liquids to prevent electronic damage.
