Home Computers and equipment Computer components Motherboard Gigabyte X870 AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

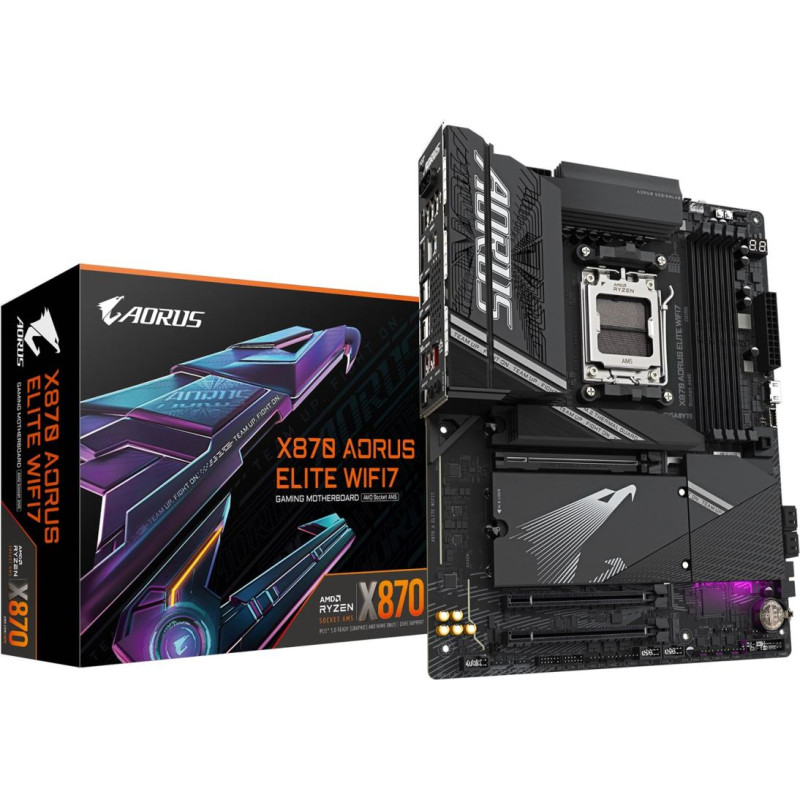

Gigabyte X870 AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

GIGABYTE

Gigabyte X870 AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

Out Of Stock
ID: 163238
Product Code: X870 AORUS ELITE WIFI7
Barcode 4719331864811
265.09€
(Ex Tax: 213.78€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Supported processor socketsSocket AM5
Maximum internal memory supported by processor256 GB
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 9000 Series
Processor manufacturerAMD
Parallel processing technology supportNot supported
DirectX version12.0
On-board graphics cardNo
Windows operating systems supportedWindows 11 x64
Audio output channels7.1 channels
PC health monitoringTemperature
Motherboard form factorATX
Motherboard chipset familyAMD
Product colourBlack
Motherboard chipsetAMD X870
Audio chipRealtek ALC1220
Supported memory clock speeds5200
Maximum internal memory256 GB
Supported memory module capacities8GB
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Maximum internal memory per slot64 GB
Supported memory clock speed (max)8200 MHz
ECC сompatibilityNon-ECC
Width305 mm
Depth244 mm
Height35 mm
BluetoothYes
LAN controllerRealtek RTL8125
Ethernet interface type2.5 Gigabit Ethernet
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
WLAN controller modelMediaTek MT7925
Wi-Fi standardsWi-Fi 7 (802.11be)
Ethernet LANYes
Bluetooth version5.4
Front panel audio connectorYes
Front panel connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
CPU fan connectorYes
EPS power connector (8-pin)Yes
Number of chassis fan connectors6
ATX Power connector (24-pin)Yes
USB 2.0 connectors2
Number of SATA III connectors4
RGB LED pin headerYes
TPM connectorYes
Number of CPU fan connectors2
Number of RGB LED pin headers4
Number of water pump connectors3
USB 3.2 Gen 2x2 connectors1
Number of EPS power connectors (8-pin)2
BIOS typeUEFI AMI
Clear CMOS buttonYes
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
Package weight2.74 kg
Package width335 mm
Package height80 mm
Package depth270 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Batteries includedYes
Antenna includedYes
Screws includedYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID supportYes
Number of storage drives supported8
Number of HDDs supported4
DisplayPorts quantity2
DisplayPort version1.4
USB 2.0 ports quantity2
S/PDIF out portYes
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
WiFi-AP antenna jack2
HDMI version2.1
Microphone inYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
Headphone outputs1
USB4 Gen 2x2 ports quantity2
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots4
PCI Express x16 (Gen 4.x) slots1
PCI Express x4 slots2
1st M.2 largest key size25110
2nd M.2 largest key size22110
PCI Express x16 (Gen 5.x) slots1
2nd M.2 highest PCI Express generation5.0
3rd M.2 highest PCI Express generation5.0
1st M.2 highest PCI Express generation5.0
4th M.2 highest PCI Express generation4.0
3rd M.2 largest key size22110
4th M.2 largest key size22110
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Number of battery cells1
Battery weight3 g
Lithium weight per battery0.07 g
Weight2.4 kg
Country of originChina
Products per shipping (inner) case1 pc(s)
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
