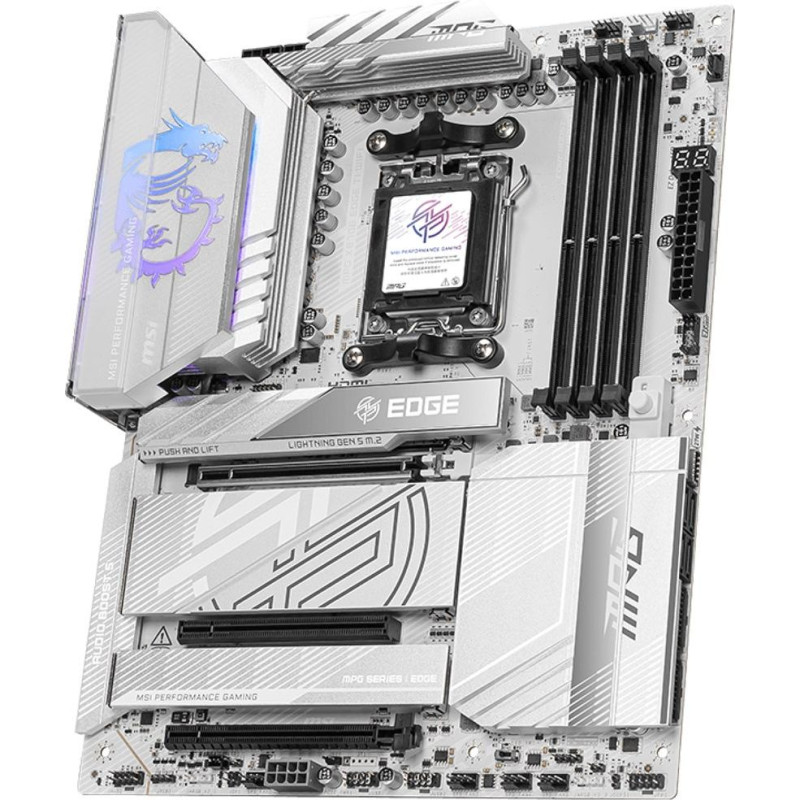

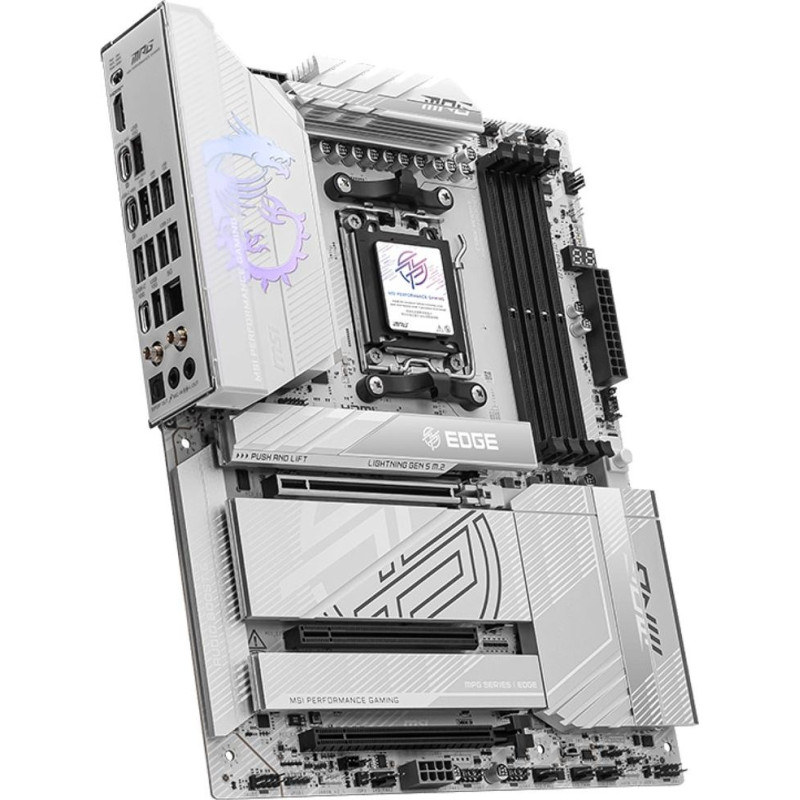

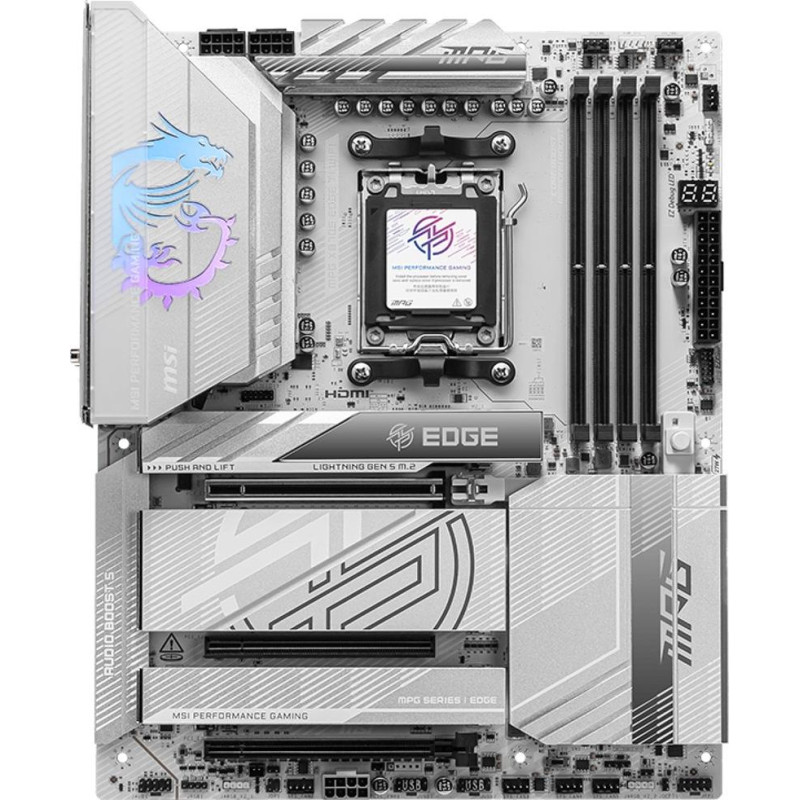

MSI MPG X870E EDGE TI WIFI motherboard AMD X870E Socket AM5 ATX

MSI

MSI MPG X870E EDGE TI WIFI motherboard AMD X870E Socket AM5 ATX

Delivery to the store takes 3 - 7 business days.
ID: 163243
Product Code: MPG X870E EDGE TI WIFI
Barcode 4711377290630
383.97€
(Ex Tax: 309.65€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Processor socketSocket AM5
Maximum internal memory supported by processor256 GB
On-board graphics cardNo
PC health monitoringFan
Motherboard chipsetAMD X870E
Motherboard form factorATX
Audio output channels7.1 channels
Motherboard chipset familyAMD
Product colourWhite
Memory channelsDual-channel
Supported memory clock speeds4800
Maximum internal memory256 GB
Number of memory slots4
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
ECC сompatibilityNon-ECC
Supported memory clock speed (max)8400 MHz
Width243.8 mm
Depth304.8 mm
BluetoothYes
Wi-Fi standardsWi-Fi 6E (802.11ax)
LAN controllerRealtek RTL8126
Top Wi-Fi standardWi-Fi 7 (802.11be)
Ethernet LANYes
Ethernet interface type5 Gigabit Ethernet
Wi-FiYes
Bluetooth version5.4
Total number of SATA connectors4
EPS power connector (8-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
CPU fan connectorYes
USB 2.0 connectors4
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
RAID levels1
Supported storage drive typesHDD & SSD
Number of storage drives supported8
Supported storage drive interfacesM.2, SATA III
RAID supportYes
Number of HDDs supported4
HDMI version2.1
DisplayPorts quantity2
Microphone inYes
DisplayPort version1.4
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity5
USB 2.0 ports quantity4
S/PDIF out portYes
Ethernet LAN (RJ-45) ports1
USB4 Gen 2x2 ports quantity1
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots4
PCI Express x16 (Gen 4.x) slots1
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation5.0
3rd M.2 highest PCI Express generation4.0
1st M.2 largest key size22110
2nd M.2 largest key size2280
PCI Express x16 (Gen 5.x) slots1
4th M.2 largest key size2280
3rd M.2 largest key size2280
4th M.2 highest PCI Express generation4.0
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
