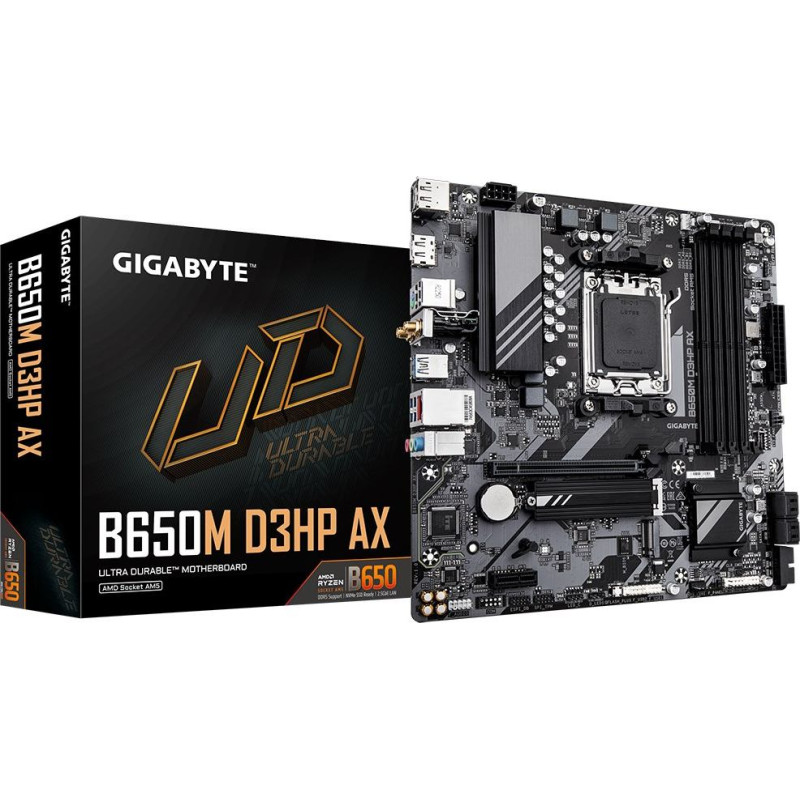

Gigabyte B650M D3HP AX Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 2xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 1

GIGABYTE

Gigabyte B650M D3HP AX Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 2xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 1

Delivery to the store takes 3 - 7 business days.
ID: 163247
Product Code: B650M D3HP AX
Barcode 4719331859510
117.67€
(Ex Tax: 94.89€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series
Processor manufacturerAMD
Supported processor socketsSocket AM5
DirectX version12.0
Parallel processing technology supportNot supported
Maximum resolution4096 x 2160 pixels
HDCPYes
Audio chipRealtek ALC897
Motherboard chipsetAMD B650
Product colourBronze
Windows operating systems supportedWindows 11 x64
PC health monitoringTemperature
Power source typeATX
Motherboard form factormicro ATX
Audio output channels7.1 channels
Cooling typePassive
Motherboard chipset familyAMD
ECC сompatibilityNon-ECC
Maximum internal memory per slot64 GB
Supported memory clock speeds6600
Maximum internal memory256 GB
Unbuffered memoryYes
Memory slots typeDIMM
Supported memory clock speed (max)8000 MHz
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Number of memory slots4
Height35 mm
Depth244 mm
Width244 mm
BluetoothYes
LAN controllerRealtek RTL8125
Bluetooth version5.3
WLAN controller modelRealtek RTL8852CE
Wi-Fi standardsWi-Fi 6E (802.11ax)
Ethernet interface type2.5 Gigabit Ethernet
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Ethernet LANYes
Wi-FiYes
Number of CPU fan connectors1
Number of RGB LED pin headers3
Number of EPS power connectors (8-pin)1
RGB LED pin headerYes
12V power connectorYes
Front panel audio connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
EPS power connector (8-pin)Yes
Number of chassis fan connectors2
Front panel connectorYes
CPU fan connectorYes
TPM connectorYes
Desktop Management Interface (DMI) version2.7
Clear CMOS jumperYes
BIOS typeUEFI AMI
Package width270 mm
Package weight1.2 kg
Package height68 mm
Package depth268 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Screws includedYes
Antenna includedYes
Batteries includedYes
Number of HDDs supported4
RAID levels1
Number of storage drives supported6
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
RAID supportYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Line-inYes
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
DisplayPorts quantity2
DisplayPort version1.4
Headphone outputs1
USB 2.0 ports quantity2
Microphone inYes
HDMI version2.1
PS/2 ports quantity1
Ethernet LAN (RJ-45) ports1
1st M.2 largest key size2580
1st M.2 highest PCI Express generation4.0
2nd M.2 highest PCI Express generation4.0
2nd M.2 largest key size22110
PCI Express x16 (Gen 4.x) slots1
PCI Express x1 (Gen 3.x) slots1
Number of M.2 (M) slots2
Lithium weight per battery0.07 g
Battery weight3 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Country of originChina
Products per shipping (inner) case1 pc(s)
