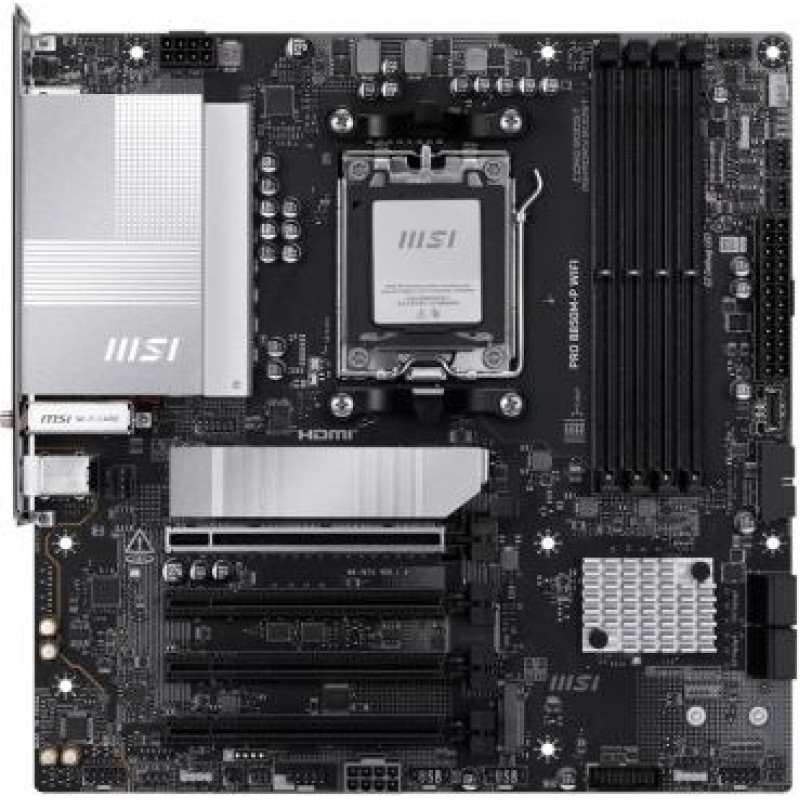

MSI Motherboard PRO B850M-P WIFI AM5 4DDR5 ATX

MSI

MSI Motherboard PRO B850M-P WIFI AM5 4DDR5 ATX

Delivery to the store takes 3 - 7 business days.
ID: 165048
Product Code: PRO B850M-P WIFI
Barcode 4711377350181
158.39€
(Ex Tax: 127.74€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIAA8B850A06
svītrkods: 4711377350181
Description
SKUKBMSIAA8B850A06
Barcode4711377350181
ModelPRO B850M-P WIFI
CPU socketSocket AM5
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B850
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8200 MHz
Max memory size256
Expansion slots3 x PCIe 3.0 x 1
Expansion slots1 x PCIe 5.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces3 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280 devices 4 x SATA 6G
Graphics1 x HDMI - Support HDMITM 2.1, maximum resolution of 4K 60Hz 1 x DisplayPort - Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Sound cardRealtek ALC897 7.1-Channel High Definition Audio
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interface1 x 10/100/1000/2500/5000 Mbit/s
Network interfaceBluetooth
Network interfaceLAN: Realtek 8126VB 5G LAN Wireless: Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
USB ports at back panel8
USB ports on motherboard9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports3
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo

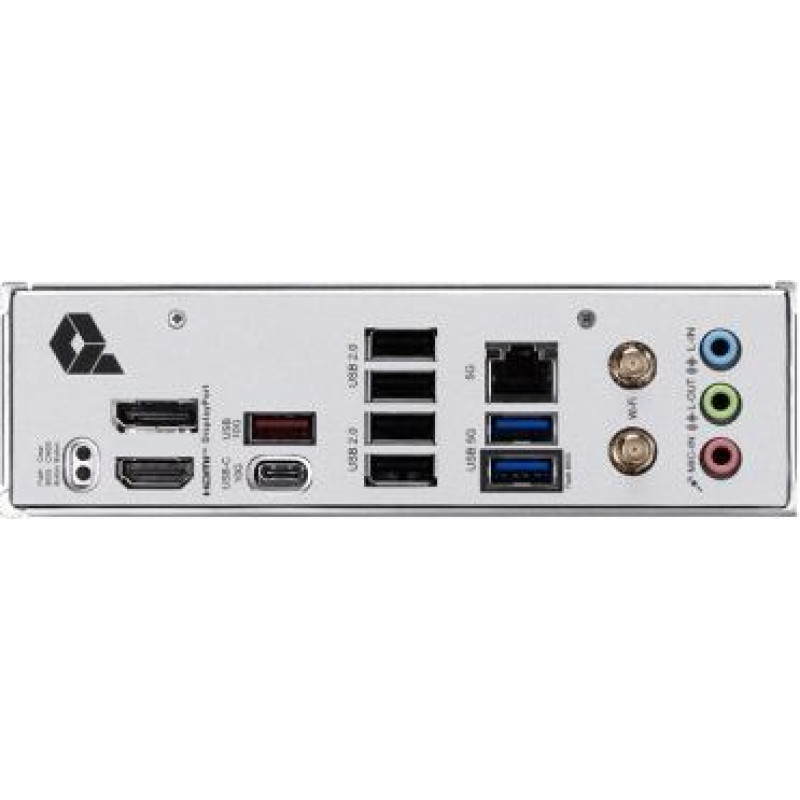

External connectors1 x Flash BIOS Button
External connectors1 x MIC
External connectors2 x USB 3.2 Gen 1 Type-A
External connectors1 x USB 3.2 Gen 2 Type-A
External connectors1 x USB 3.2 Gen 2 Type-C
External connectors2 x SMA
External connectors1 x Przycisk Clear CMOS
External connectors1 x Line Out
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x RJ-45
External connectors4 x USB 2.0
Onboard connectors3 x Addressable LED
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x EZ Memory Detection LED
Onboard connectors1 x Tuning Controller connector
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 8-pin PCIe
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors4 x USB 2.0/1.1
Onboard connectors4 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors1 x Serial port header
Onboard connectors1 x TPM header
Onboard connectors2 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors4 x EZ Debug LED
Onboard connectors1 x Chassis intrusion header
Form factormicro ATX
Dimensions243.84 x 243.84 mm
Supported operating systemsWindows 11
DesignationCE+WEEE
