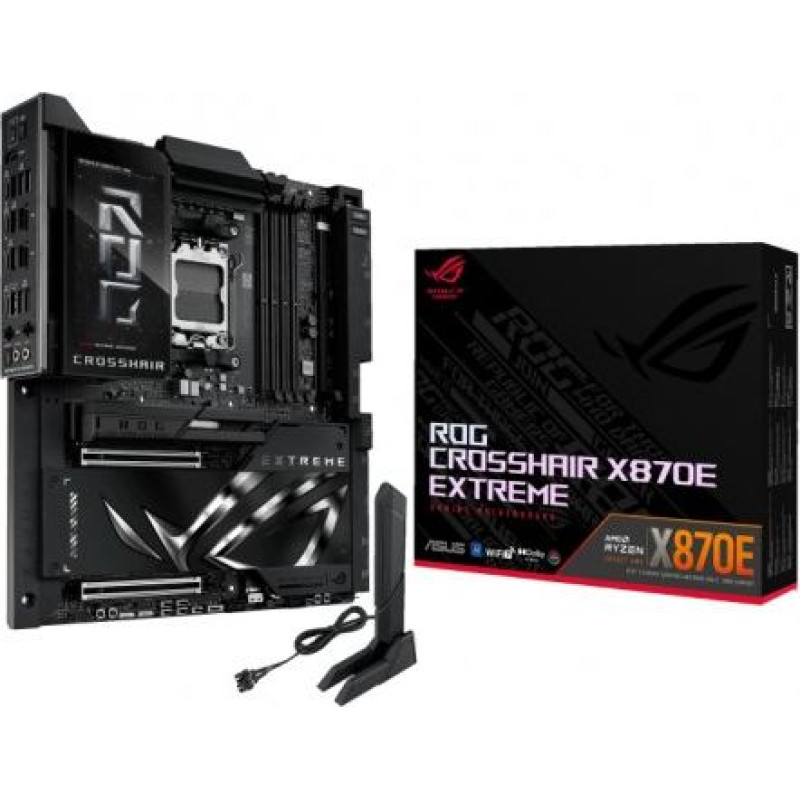

Asus Motherboard ROG CROSSHAIR X870E EXTREME

Asus Motherboard ROG CROSSHAIR X870E EXTREME

Delivery to the store takes 3 - 7 business days.
ID: 165236
Product Code: ROG CROSSHAIR X870E EXTREME
Barcode 4711387984963
1,159.46€
(Ex Tax: 935.05€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUAA8X870A08
svītrkods: 4711387984963
Description
SKUKBASUAA8X870A08
Barcode4711387984963
ModelROG CROSSHAIR X870E EXTREME
CPU socketSocket AM5
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD X870E
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency9000 MHz
Max memory size256
Expansion slots2 x PCIe x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesSupports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately.   4 x SATA 6Gb/s ports
Graphics1 x HDMITM port 2 x USB4 (40Gbps) ports support USB Type-C display outputs
Sound cardROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB SNR recording input Supports up to 32-Bit/384 kHz playback on front panel Audio Features SupremeFX Shielding Technology ESS ES9219 QUAD DAC LED-illuminated audio jacks Rear optical S/PDIF out port Premium audio capacitors
Network interface1 x 10Gbit/s 10GBase-T
Network interface1 x 10/100/1000/2500/5000 Mbit/s
Network interfaceEthernet: 1 x Realtek 5Gb Ethernet 1 x Marvell AQtion 10Gb Ethernet ASUS LANGuard   Wireless & Bluetooth Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate Bluetooth v5.4
USB ports at back panel12
USB ports on motherboard10
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports11
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors2 x USB 3.2 Gen 2 Type-C
External connectors1 x Flash BIOS Button
External connectors1 x Wi-Fi Module
External connectors1 x HDMI
External connectors1 x Line Out
External connectors1 x MIC
External connectors2 x RJ-45
External connectors1 x S/PDIF
External connectors8 x USB 3.2 Gen 2 Type-A
External connectors1 x Przycisk Clear CMOS
External connectors2 x USB4 Type-C
Onboard connectors1 x RSVD header
Onboard connectors2 x 4pin case fan liquid cooling
Onboard connectors2 x 4pin Radiator Fan headers
Onboard connectors1 x VRM Heatsink Fan header
Onboard connectors1 x Thermal sensor connector
Onboard connectors12 x ProbeIt Measurement Points
