Home Computers and equipment Computer components Motherboard Gigabyte Motherboard B840M DS3H AM5 4DDR5 HDMI/2DP mATX
Gigabyte Motherboard B840M DS3H AM5 4DDR5 HDMI/2DP mATX

GIGABYTE

Gigabyte Motherboard B840M DS3H AM5 4DDR5 HDMI/2DP mATX

Delivery to the store takes 3 - 7 business days.
ID: 166206
Product Code: B840M DS3H
Barcode 4719331868437
125.95€
(Ex Tax: 101.58€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA8B840U00
svītrkods: 4719331868437
Description
SKUKBGBAAA8B840U00
Barcode4719331868437
ModelB840M DS3H
CPU socketSocket AM5
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 9
Processor familyAMD Ryzen 5
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B840
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency6666 MHz
Memory bus frequency6600 MHz
Memory bus frequency8200 MHz
Memory bus frequency8000 MHz
Memory bus frequency7950 MHz
Memory bus frequency7900 MHz
Memory bus frequency7800 MHz
Memory bus frequency7200 MHz
Memory bus frequency7400 MHz
Memory bus frequency7600 MHz
Memory bus frequency4800 MHz
Memory bus frequency5200 MHz
Memory bus frequency5600 MHz
Memory bus frequency6000 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency4400 MHz
Max memory size256
Expansion slots2 x M.2
Expansion slots1 x PCIe 4.0 x 4
Expansion slots1 x PCIe 4.0 x 8
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x PCIe 3.0 x 4
Max. number of SATA devices4
RAIDYes
Network interface1 x 10/100/1000/2500 Mbit/s
USB ports at back panel7
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

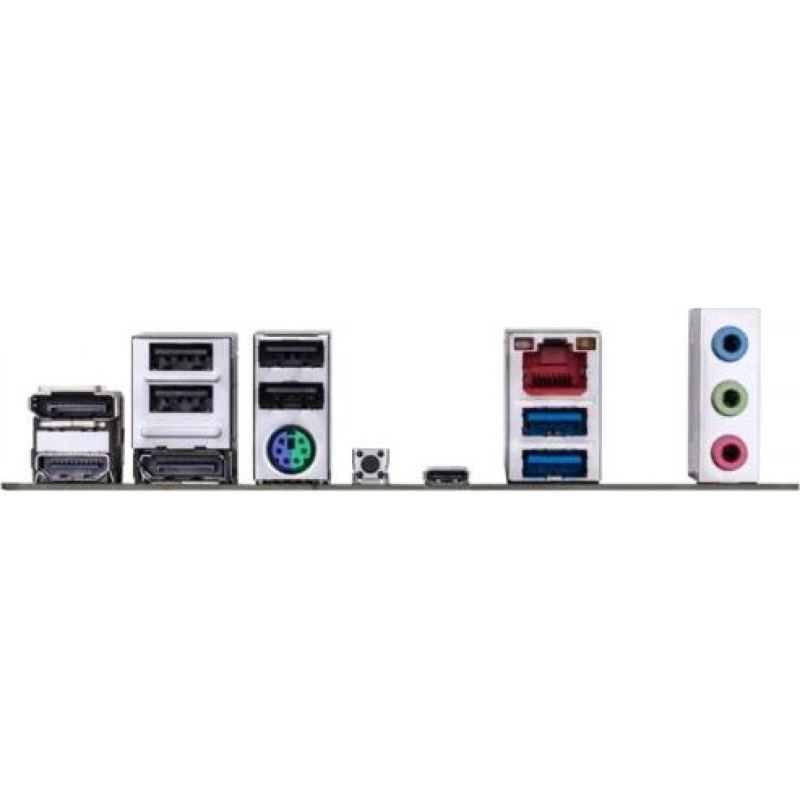

External connectors1 x Q-Flash Plus button
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors2 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors4 x USB 2.0
External connectors2 x USB 3.2 Gen 1 Type-A
External connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x Reset jumper
Onboard connectors1 x Front panel audio header
Onboard connectors1 x System panel header
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.2 Gen 1 Type-A
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x TPM header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors1 x RGB LED strip header
Onboard connectors2 x Addressable LED
Form factormicro ATX
Supported operating systemsWindows 10
Supported operating systemsWindows 11
DesignationCE+WEEE
