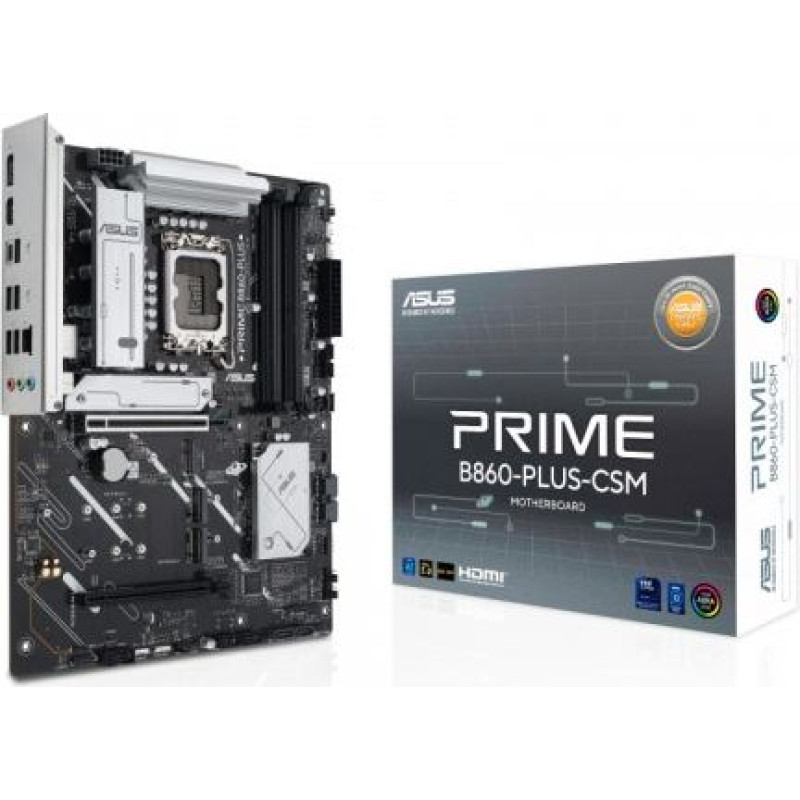

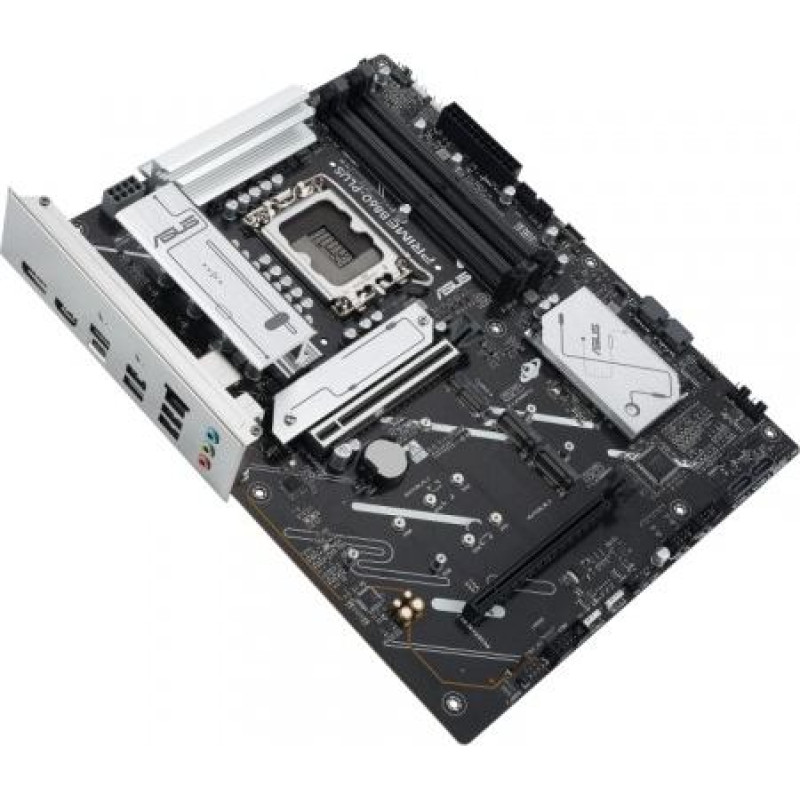

Asus Motherboard PRIME B860-PLUS-CSM

Asus Motherboard PRIME B860-PLUS-CSM

Delivery to the store takes 3 - 7 business days.
ID: 166708
Product Code: PRIME B860-PLUS-CSM
Barcode 4711387814857
198.01€
(Ex Tax: 159.68€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUIIFB860A05
svītrkods: 4711387814857
Description
SKUKBASUIIFB860A05
Barcode4711387814857
ModelPRIME B860-PLUS-CSM
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B860 Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8666 MHz
Max memory size256
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Graphics1 x DisplayPort 1 x HDMI
Sound cardRealtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceEthernet: 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)** Wi-Fi module is sold separately.
USB ports at back panel6
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors1 x USB 3.2 Gen 1 Type-A
External connectors1 x USB 3.2 Gen 2x2 Type-C
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors2 x USB 3.2 Gen 2 Type-A
External connectors2 x USB 2.0
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x RGB LED strip header
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x Thunderbolt header
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x S/PDIF Out header
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors4 x USB 2.0/1.1
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x Serial port header
Onboard connectors4 x 4pin Chassis fan
Onboard connectors3 x Addressable LED
BIOS2 x 128 Mb Flash ROM, UEFI AMI BIOS
Form factorATX
Dimensions30.5 x 24.4 cm
Accessories included2 x SATA 6Gb/s cable M.2 rubber package 2 x Screw package for M.2 SSD Screw package for M.2 Key E Quick start guide
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareWOL by PME, PXE
DesignationCE+WEEE
