Home Computers and equipment Computer components Motherboard Asus Motherboard TUF GAMING B860-PLUS WIFI s1851 4DDR5 USBC ATX

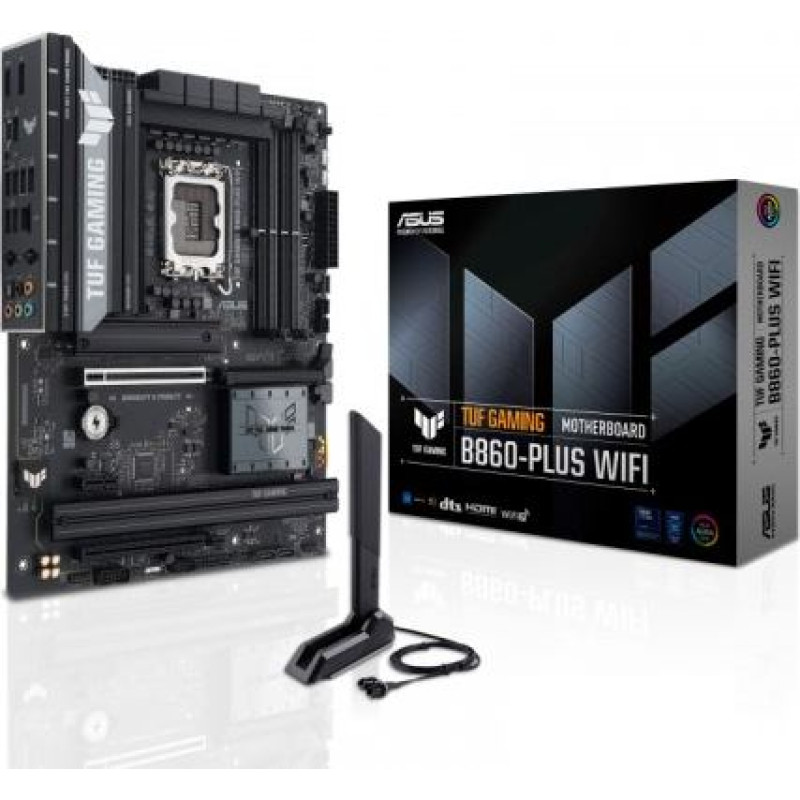

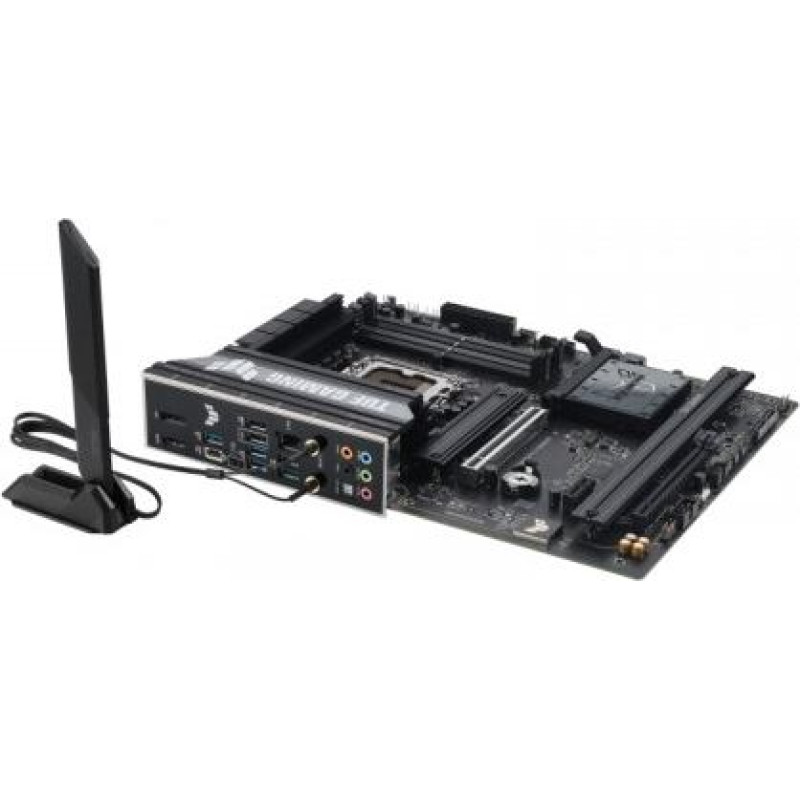

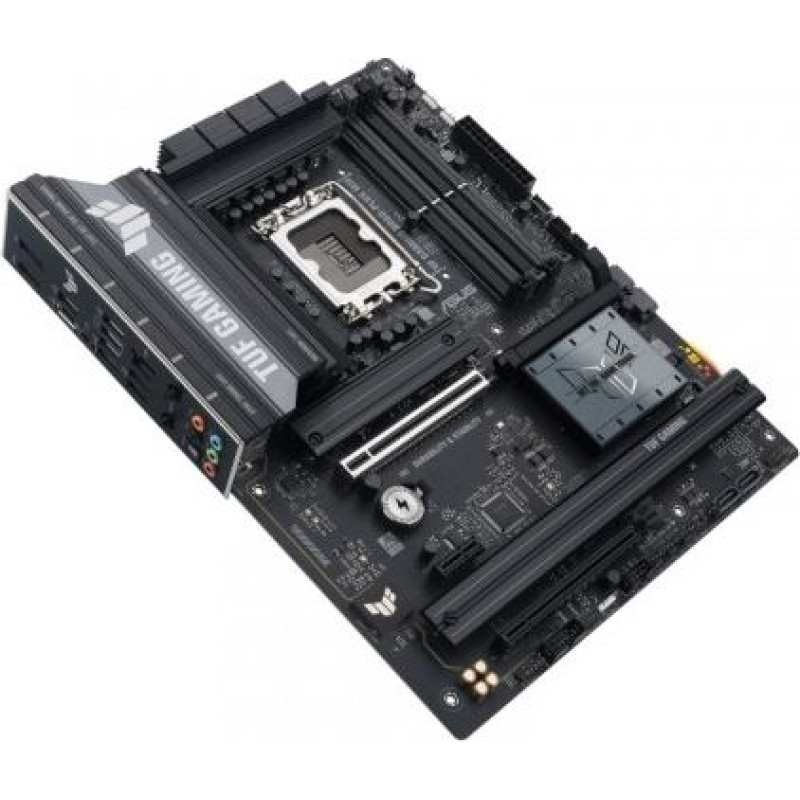

Asus Motherboard TUF GAMING B860-PLUS WIFI s1851 4DDR5 USBC ATX

Asus Motherboard TUF GAMING B860-PLUS WIFI s1851 4DDR5 USBC ATX

Delivery to the store takes 3 - 7 business days.
ID: 166710
Product Code: TUF GAMING B860-PLUS WIFI
Barcode 4711387815144
186.82€
(Ex Tax: 150.66€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUIIFB860A03
svītrkods: 4711387815144
Description
SKUKBASUIIFB860A03
Barcode4711387815144
ModelTUF GAMING B860-PLUS WIFI
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B860 Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8666 MHz
Max memory size256
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 1
Expansion slots1 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Graphics1 x DisplayPort 1 x HDMI 1 x USB 20Gbps port (USB Type-C)
Sound cardRealtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Rear optical S/PDIF out port Premium audio capacitors Dedicated audio PCB layers Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceBluetooth
Network interfaceEthernet: 1 x Realtek 2.5Gb Ethernet TUF LANGuard   Wireless & Bluetooth: 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
USB ports at back panel8
USB ports on motherboard5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports3
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo

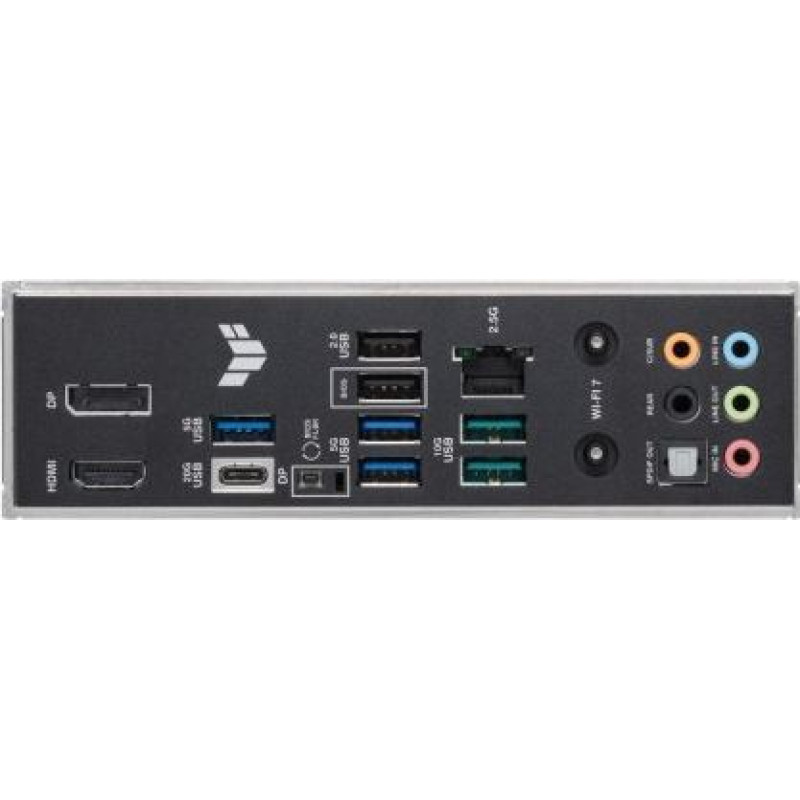

External connectors1 x DisplayPort
External connectors1 x Central Speaker / Subwoofer
External connectors1 x Rear Speaker
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x S/PDIF
External connectors2 x USB 2.0
External connectors3 x USB 3.2 Gen 1 Type-A
External connectors2 x USB 3.2 Gen 2 Type-A
External connectors1 x USB 3.2 Gen 2x2 Type-C
External connectors1 x Flash BIOS Button
External connectors1 x Wi-Fi Module
External connectors1 x HDMI
Onboard connectors1 x Chassis intrusion header
Onboard connectors3 x Addressable LED
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors4 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors2 x 8pin 12V
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors1 x Serial port header
Onboard connectors1 x Thunderbolt header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
BIOS2 x 128 Mb Flash ROM, UEFI AMI BIOS
Form factorATX
Dimensions30.5 x 24.4 cm
Accessories included2 x SATA 6Gb/s cable ASUS WiFi Q-Antenna 2 x M.2 rubber packages Screw package for M.2 SSD TUF GAMING sticker Quick start guide
Supported operating systemsWindows 11
SoftwareWOL by PME, PXE
DesignationCE+WEEE
