Home Computers and equipment Computer components Motherboard Asus Motherboard PRIME H810M-A WIFI s1851 XDDR5 USBC mATX

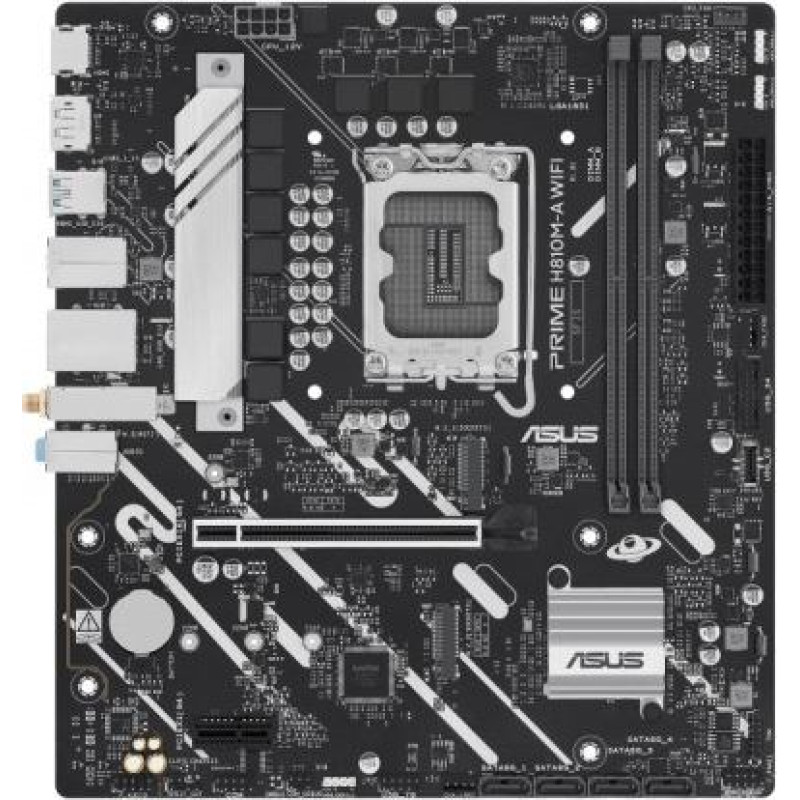

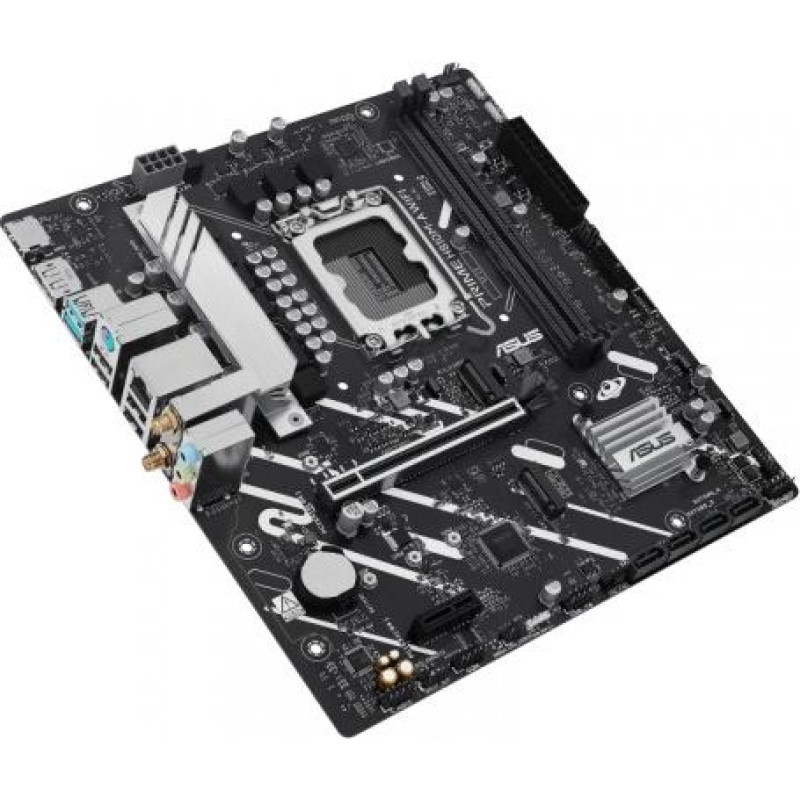

Asus Motherboard PRIME H810M-A WIFI s1851 XDDR5 USBC mATX

Asus Motherboard PRIME H810M-A WIFI s1851 XDDR5 USBC mATX

Delivery to the store takes 3 - 7 business days.
ID: 166715
Product Code: PRIME H810M-A WIFI
Barcode 4711387842522
130.18€
(Ex Tax: 104.98€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUIIFB810U00
svītrkods: 4711387842522
Description
SKUKBASUIIFB810U00
Barcode4711387842522
ModelPRIME H810M-A WIFI
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeH810 Chipset
Memory typeDDR5
Number of DDR5 slots2
Memory bus frequency6400 MHz
Max memory size128
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x PCIe 4.0 x 1
Max. number of SATA devices4
Detailed data on disk/drive interfacesTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H810 Chipset M.2_1 slot (Key M), type 2280  (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
Graphics1 x DisplayPort 1 x HDMI
Sound cardRealtek 7.1 Surround Sound High Definition Audio CODEC: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features: Audio Shielding Premium audio capacitors Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Network interface1 x 10/100/1000 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interfaceBluetooth
Network interfaceLAN: 1 x Intel 1Gb Ethernet port* ASUS LANGuard *With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.   Wireless & Bluetooth: Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.3* * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB ports at back panel6
USB ports on motherboard5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo

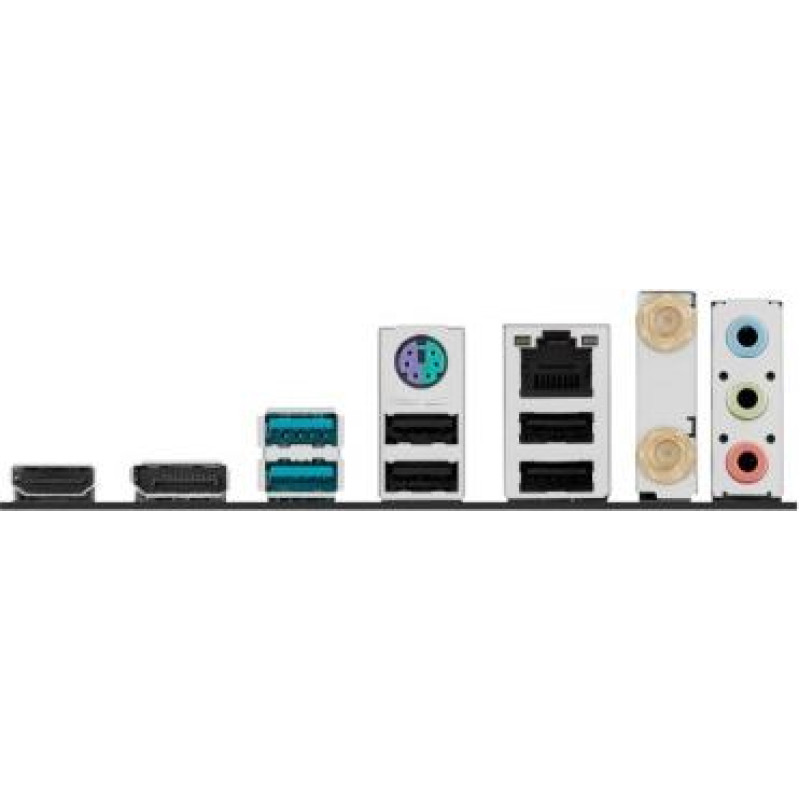

External connectors1 x Wi-Fi Module
External connectors2 x USB 3.2 Gen 2 Type-A
External connectors1 x MIC
External connectors1 x RJ-45
External connectors4 x USB 2.0
External connectors1 x Line Out
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
Onboard connectors3 x Addressable LED
Onboard connectors1 x Serial port header
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x S/PDIF Out header
Onboard connectors1 x 4pin CPU fan
BIOS256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form factormicro ATX
Dimensions24.4 x 22.2 cm

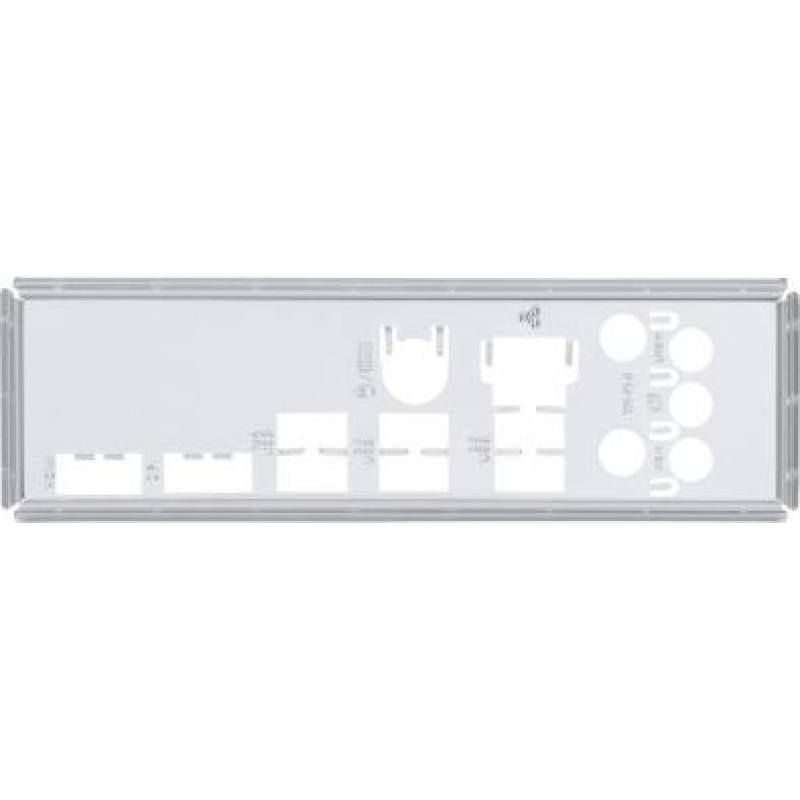

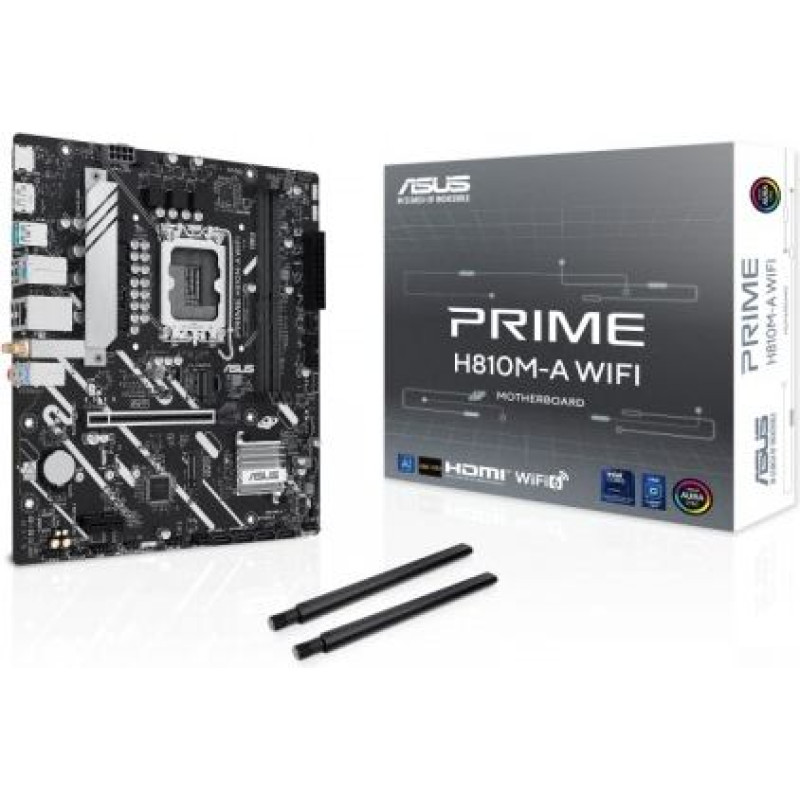

Accessories included2 x SATA 6Gb/s cables ASUS Wi-Fi moving antenna I/O shield Screw package for M.2 SSD Quick start guide
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareWOL by PME, PXE
DesignationCE+WEEE
