Gigabyte B860M DS3H

GIGABYTE

Gigabyte B860M DS3H

Delivery to the store takes 3 - 7 business days.
ID: 166716
Product Code: B860M DS3H
Barcode 4719331866709
141.54€
(Ex Tax: 114.14€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIFB860U04
svītrkods: 4719331866709
Description
SKUKBGBAIIFB860U04
Barcode4719331866709
ModelB860M DS3H
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B860 Express Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8266 MHz
Memory bus frequency8800 MHz
Memory bus frequency8400 MHz
Memory bus frequency7900 MHz
Memory bus frequency7950 MHz
Memory bus frequency8000 MHz
Memory bus frequency8200 MHz
Memory bus frequency8600 MHz
Memory bus frequency7800 MHz
Memory bus frequency5600 MHz
Memory bus frequency6400 MHz
Memory bus frequency6600 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency7200 MHz
Memory bus frequency7400 MHz
Memory bus frequency7600 MHz
Max memory size256
Expansion slots1 x PCIe 5.0 x 16
Expansion slots2 x PCIe 4.0 x 1
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU 1 x PCI Express x16 slot, supporting PCIe 5.0 and operating at x16 speed (PCIEX16) * The PCIEX16 slot only supports a graphics card or NVMe SSD. If you only want to install a single graphics card, install it in the PCIEX16 slot.Chipset 2 x PCI Express x16 slots, supporting PCIe 4.0 and operating at x1 speed (PCIEX1_2/3)
GraphicsIntegrated graphics processor supports Intel HD Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz Supports HDMI 2.1 and HDCP 2.3 2 x DisplayPort ports, supporting a maximum resolution of 3840x2160 @ 144 Hz Supports DisplayPort 2.1.
Sound cardRealtek audio codec High Definition Audio Support Audio Channels: 2/4/5.1/7.1
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel6
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports1
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

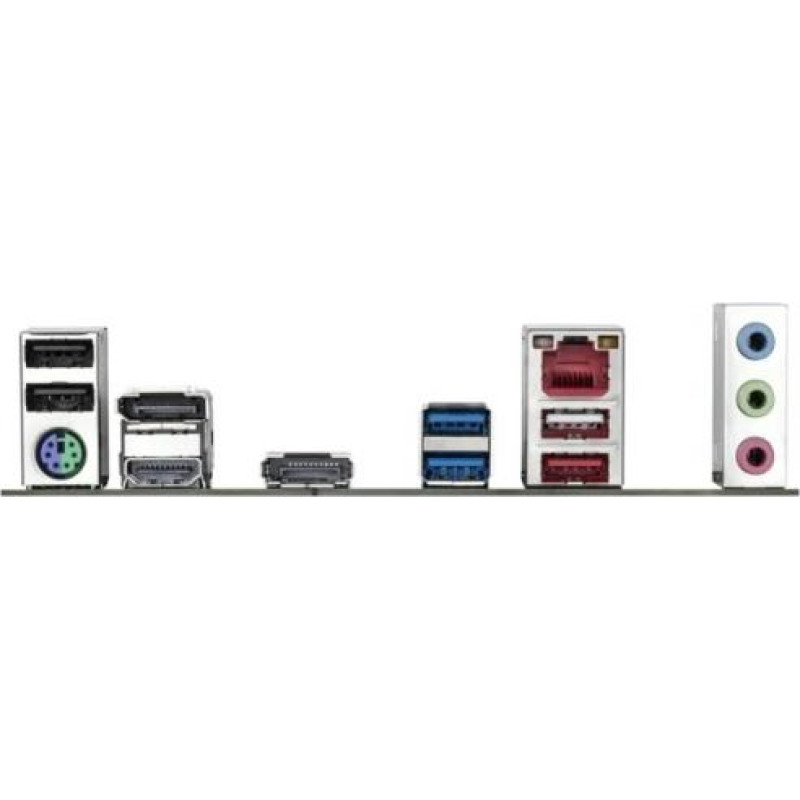

External connectors1 x PS/2 Keyboard/MouseCombo
External connectors2 x DisplayPort
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors3 x USB 2.0
External connectors2 x USB 3.0
External connectors1 x USB 3.1
External connectors1 x HDMI
External connectors1 x Line In
Onboard connectors1 x Clear CMOS button
Onboard connectors1 x Q-Flash Plus button
Onboard connectors1 x TPM header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
BIOS1 x 256 Mbit flash Using a licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factormicro ATX
Dimensions24.4 x 17.4cm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareNorton Internet Security (wersja OEM) LAN bandwidth management software
DesignationCE+WEEE
