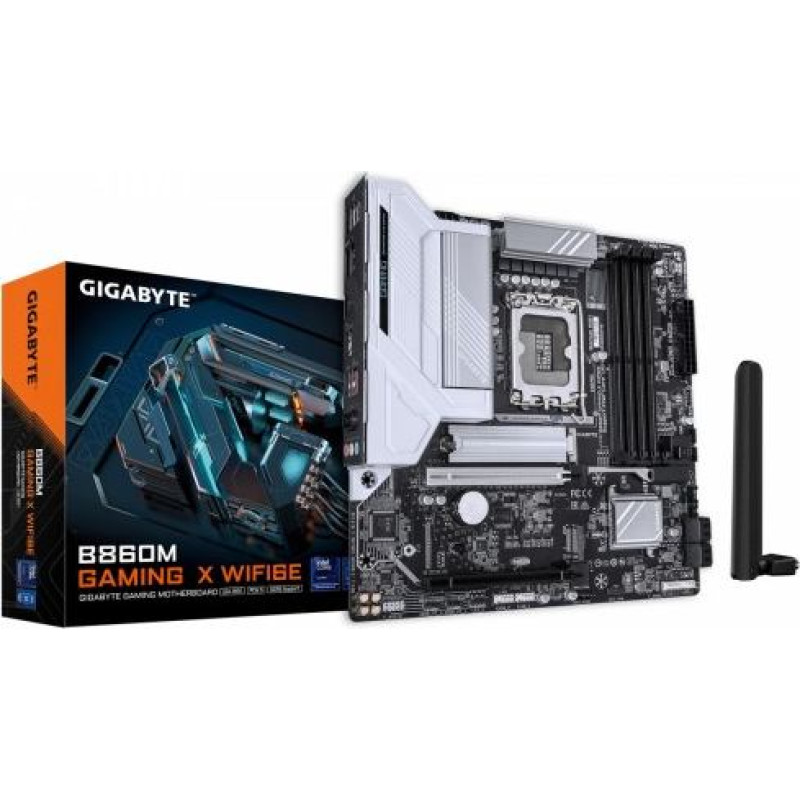

Gigabyte Motherboard B860M GAMING X WIFI6E

GIGABYTE

Gigabyte Motherboard B860M GAMING X WIFI6E

Delivery to the store takes 3 - 7 business days.
ID: 166718
Product Code: B860M GAMING X WIFI6E
Barcode 4719331867133
181.17€
(Ex Tax: 146.10€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIFB860U02
svītrkods: 4719331867133
Description
SKUKBGBAIIFB860U02
Barcode4719331867133
ModelB860M GAMING X WIFI6E
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8266 MHz
Memory bus frequency8200 MHz
Memory bus frequency8600 MHz
Memory bus frequency8800 MHz
Memory bus frequency5600 MHz
Memory bus frequency6400 MHz
Memory bus frequency6600 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency7200 MHz
Memory bus frequency7400 MHz
Memory bus frequency7600 MHz
Memory bus frequency7800 MHz
Memory bus frequency7900 MHz
Memory bus frequency7950 MHz
Memory bus frequency9200 MHz
Memory bus frequency8000 MHz
Memory bus frequency8400 MHz
Max memory size256
Expansion slots1 x PCIe 4.0 x 4
Expansion slots1 x PCIe 5.0 x 16
Expansion slots2 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesExpansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Storage Interface CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
GraphicsIntegrated graphics processor - Intel HD Graphics support: 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz *Supports DisplayPort 2.1. 1 x DisplayPort port, supporting a maximum resolution of 3840x2160@144 Hz *Supports DisplayPort 2.1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz *Supports HDMI 2.1 and HDCP 2.3. (Graphics specifications may vary depending on processor support.) Supports up to three displays simultaneously
Sound card    Realtek Audio CODEC    High Definition Audio    2/4/5.1/7.1-channel
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interfaceBluetooth
Network interfaceLAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless communication module Intel Wi-Fi 6E AX211 (PCB rev. 1.0/2.0) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1/2.1) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 160MHz wireless standard
USB ports at back panel9
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

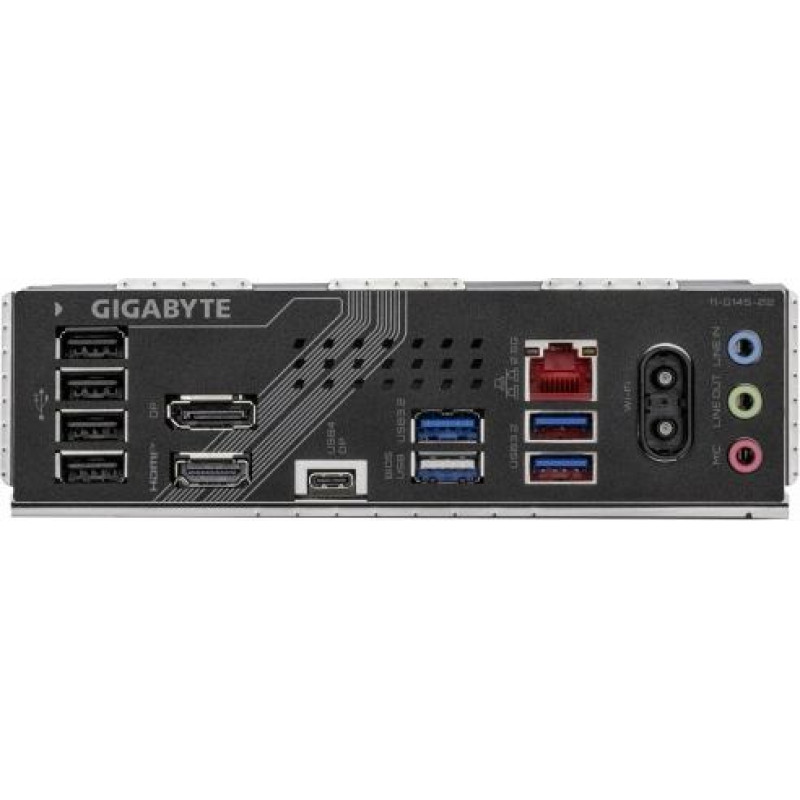

External connectors1 x Line In
External connectors1 x HDMI
External connectors1 x MIC
External connectors1 x RJ-45
External connectors5 x USB 2.0
External connectors3 x USB 3.2 Gen 1 Type-A
External connectors1 x USB4 Type-C
External connectors2 x SMA
External connectors1 x Line Out
External connectors1 x DisplayPort
Onboard connectors1 x TPM header
Onboard connectors3 x Addressable LED
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors2 x Thunderbolt
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors1 x Reset jumper
Onboard connectors1 x Q-Flash Plus button
Onboard connectors1 x RGB LED strip header
BIOS    1 x 256 Mbit flash     Use of licensed AMI UEFI BIOS     PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factormicro ATX
Dimensions24.4 cm x 24.4 cm
SoftwareNorton Internet Security (OEM version) LAN bandwidth management software
DesignationCE+WEEE
