Home Computers and equipment Computer components Motherboard Gigabyte Motherboard B850 A ELITE WIFI7

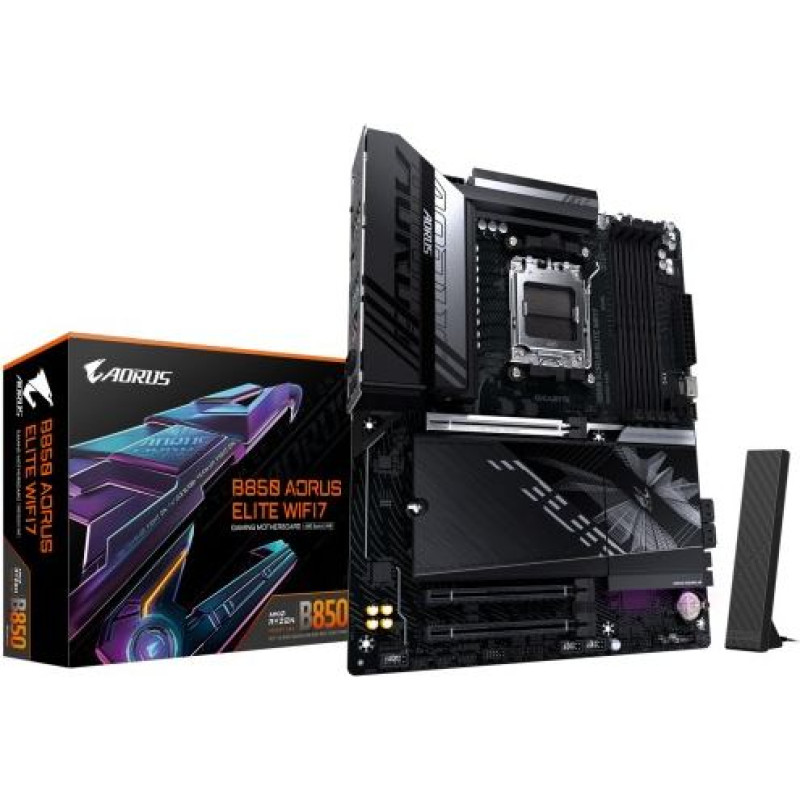

Gigabyte Motherboard B850 A ELITE WIFI7

GIGABYTE

Gigabyte Motherboard B850 A ELITE WIFI7

Delivery to the store takes 3 - 7 business days.
ID: 166905
Product Code: B850 A ELITE WF7
Barcode 4719331866105
215.96€
(Ex Tax: 174.16€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA8B850A00
svītrkods: 4719331866105
Description
SKUKBGBAAA8B850A00
Barcode4719331866105
ModelB850 A ELITE WIFI7
CPU socketSocket AM5
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 9
Processor familyAMD Ryzen 5
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B850
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8000 MHz
Memory bus frequency7900 MHz
Memory bus frequency7950 MHz
Memory bus frequency8200 MHz
Memory bus frequency7800 MHz
Memory bus frequency4800 MHz
Memory bus frequency5200 MHz
Memory bus frequency5600 MHz
Memory bus frequency5800 MHz
Memory bus frequency6000 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency6600 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency7200 MHz
Memory bus frequency7400 MHz
Memory bus frequency7600 MHz
Memory bus frequency4400 MHz
Max memory size256
Expansion slots3 x M.2
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 4
Expansion slots1 x PCIe 4.0 x 8
Expansion slots1 x PCIe x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces1 x M.2 connector (M2A_CPU), integrated with the processor, supporting Socket 3, M, type 25110/22110/2580/2280 SSDs:AMD Ryzen 9000/7000 Series processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen 8000-Phoenix 1 Series processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000-Phoenix 2 Series processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated with the processor, supporting Socket 3, M, type 25110/22110/2580/2280 SSDs:AMD Ryzen 9000/7000 Series processors support PCIe 4.0 SSDs x4/x2AMD Ryzen 8000 Series-Phoenix 1 processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 2 processors support PCIe 4.0 x2 SSDs1 M.2 connector (M2C_SB), integrated into the chipset, supporting Socket 3, M Key, Type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs4 SATA 6 Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices*RAID 5 is only available on AMD Ryzen 9000 Series processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devices
GraphicsIntegrated graphics processor - AMD Radeon graphics support 1 x DisplayPort, supporting a maximum resolution of 3840x2160 @ 144 Hz * Supports DisplayPort 1.4 and HDR. 1 x Front HDMI port, supporting a maximum resolution of 1920x1080 @ 30 Hz * Supports HDMI 1.4.
Sound cardRealtek audio codec High Definition Audio Support 2/4/5.1/7.1 audio channels * Audio jack functionality can be changed via audio software. To configure 7.1-channel audio, access the audio software's audio settings. S/PDIF Out Support
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceBluetooth
Network interfaceLocal Network Realtek 2.5GbE LAN Chip (2.5 Gb/s/1 Gb/s/100 Mb/s) Wireless Communication Module Realtek Wi-Fi 7 RTL8922AE Network Adapter 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports the 11be 160MHz wireless standard
USB ports at back panel12
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports4
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x DisplayPort
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x S/PDIF
External connectors4 x USB 2.0
External connectors5 x USB 3.2 Gen 1 Type-A
External connectors2 x USB 3.2 Gen 2 Type-A
External connectors1 x USB 3.2 Gen 2 Type-C
External connectors2 x SMA
External connectors1 x Q-Flash Plus button
Onboard connectors1 x Reset jumper
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x Addressable LED
Onboard connectors1 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors1 x HDMI
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Power button
Onboard connectors1 x Reset button
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 4pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
BIOS1 x 256 Mbit flash  Use of licensed AMI UEFI BIOS  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factorATX
Dimensions30.5 cm x 24.4 cm
Supported operating systemsWindows 11
DesignationCE+WEEE
