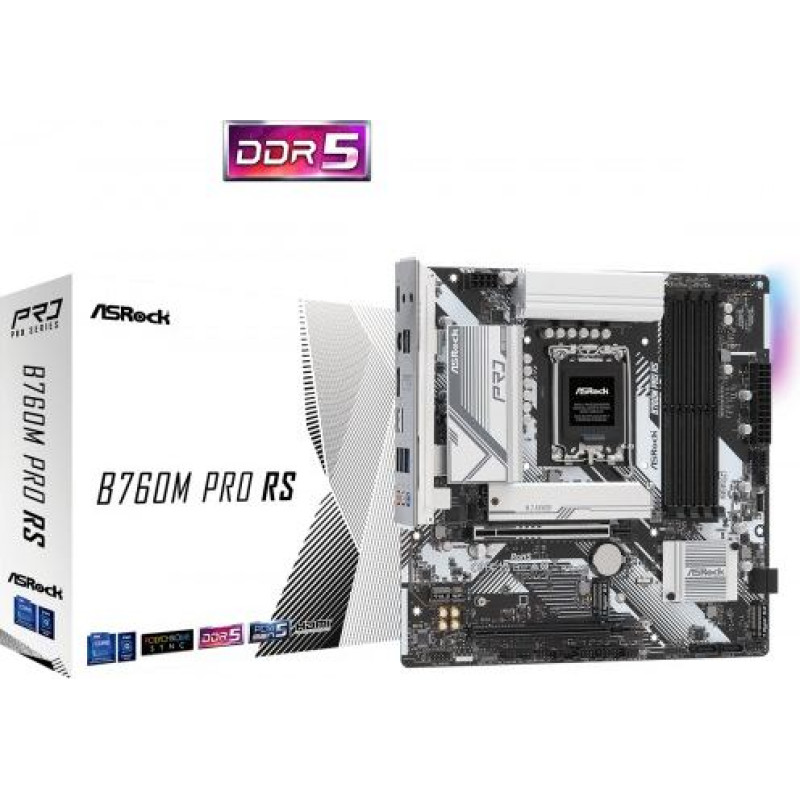

Asrock Motherboard B760M Pro RS s1700 4DDR5 DP/HDMI mATX

Asrock Motherboard B760M Pro RS s1700 4DDR5 DP/HDMI mATX

Delivery to the store takes 3 - 7 business days.
ID: 167068
Product Code: B760M PRO RS
Barcode 4710483942723
121.16€
(Ex Tax: 97.71€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASRIIEB760U07
svītrkods: 4710483942723
Description
SKUKBASRIIEB760U07
Barcode4710483942723
ModelB760M PRO RS
CPU socketLGA1700
Processor familyIntel Core
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B760
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency3600 MHz
Memory bus frequency6000 MHz
Memory bus frequency4800 MHz
Memory bus frequency7200 MHz
Memory bus frequency5600 MHz
Memory bus frequency4400 MHz
Memory bus frequency4000 MHz
Max memory size256
Expansion slots1 x PCIe 3.0 x 16
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x M.2
Max. number of SATA devices3
RAIDYes
Detailed data on disk/drive interfacesCPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors*Supports Intel Volume Management Device (VMD)Supports NVMe SSD as boot disksRAID- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
GraphicsIntel Xe Graphics Architecture (Gen 12)  1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz  1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Sound card7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interface1 x 10/100/1000/2500 Mbit/s
Network interface2.5 Gigabit LAN 10/100/1000/2500 Mbps  Dragon RTL8125BG  Supports Dragon 2.5G LAN Software  Smart Auto Adjust Bandwidth Control  Visual User Friendly UI  Visual Network Usage Statistics  Optimized Default Setting for Game, Browser, and Streaming Modes  User Customized Priority Control
USB ports at back panel6
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports7
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors2 x SMA
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors2 x USB 2.0
External connectors3 x USB 3.2 Gen 1 Type-A
External connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x Front panel audio header
Onboard connectors1 x TPM header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors4 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB C
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x Addressable LED
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x Thunderbolt header
BIOS128Mb AMI UEFI Legal BIOS with GUI support
Form factormicro ATX
Dimensions24.4 cm x 24.4 cm
Accessories included1 x User Manual 2 x SATA Data Cables 4 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareSoftware  ASRock Motherboard Utility (A-Tuning)  ASRock Dragon 2.5G LAN Software  ASRock Polychrome SYNC* UEFI  ASRock EZ Mode  ASRock Full HD UEFI  ASRock My Favorites in UEFI  ASRock Auto Driver Installer  ASRock Instant Flash  ASRock Easy RAID Installer
DesignationCE+WEEE
