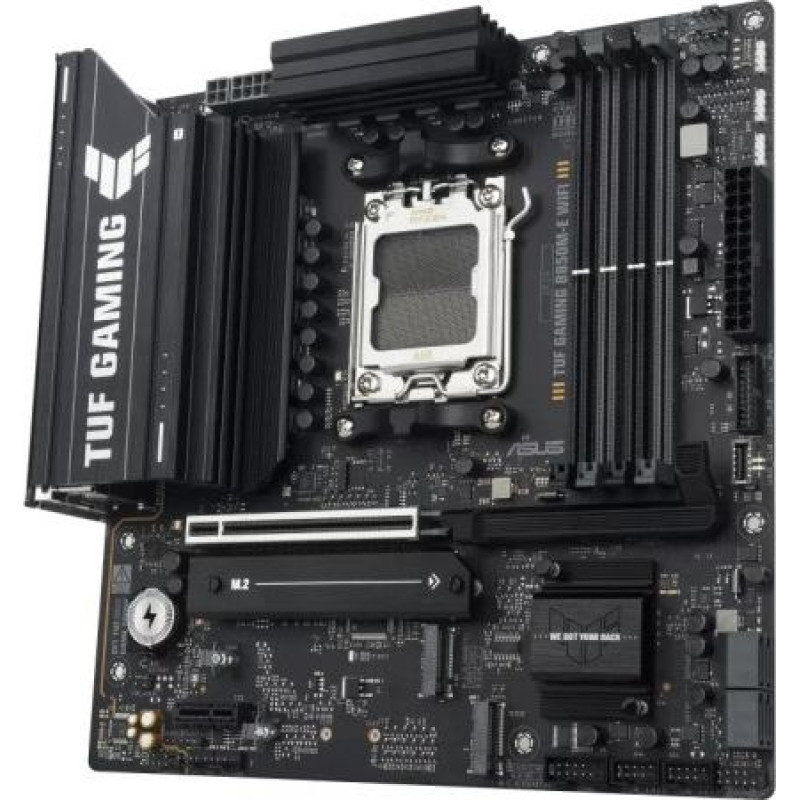

Asus Motherboard TUF GAMING B850M-E WIFI 4DDR5 DP/HDMI mATX

Asus Motherboard TUF GAMING B850M-E WIFI 4DDR5 DP/HDMI mATX

Delivery to the store takes 3 - 7 business days.
ID: 167140
Product Code: TUF GAMING B850M-E WIFI
Barcode 4711636068499
153.03€
(Ex Tax: 123.41€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUAA8B850U02
svītrkods: 4711636068499
Description
SKUKBASUAA8B850U02
Barcode4711636068499
ModelTUF GAMING B850M-E WIFI
CPU socketSocket AM5
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B850 Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8000 MHz
Max memory size256
Expansion slots1 x PCIe 4.0 x 1
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x PCIe 5.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Graphics2 x DisplayPort 1 x HDMI port
Sound cardRealtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interfaceBluetooth
Network interfaceEthernet: 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless & Bluetooth: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3
USB ports at back panel8
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo

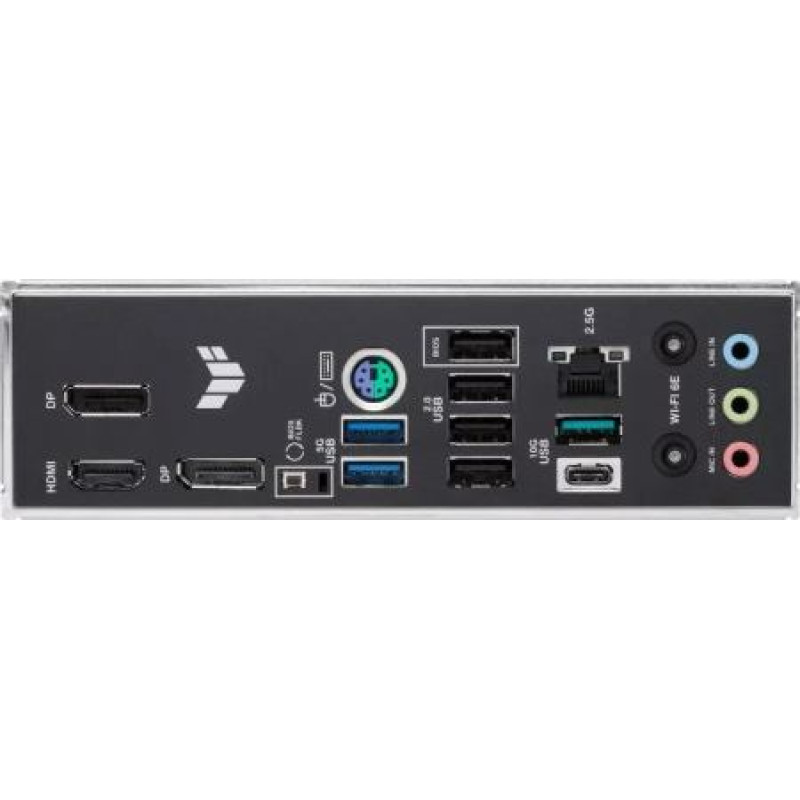

External connectors1 x Wi-Fi Module
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors4 x USB 2.0
External connectors2 x USB 3.2 Gen 1 Type-A
External connectors1 x USB 3.2 Gen 2 Type-A
External connectors1 x USB 3.2 Gen 2 Type-C
External connectors1 x USB BIOS Flashback button
External connectors2 x DisplayPort
External connectors1 x PS/2 Keyboard/MouseCombo
Onboard connectors3 x Addressable LED
Onboard connectors1 x 4pin 12V power
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors4 x USB 2.0/1.1
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x Serial port header
Onboard connectors1 x System panel header
Onboard connectors2 x 4pin Chassis fan
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x 4pin wentylator OPT CPU
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Form factormicro ATX
Dimensions24.4 x 24.4 cm
Accessories included2 x SATA 6Gb/s cable ASUS WiFi Q-Antenna TUF Gaming sticker M.2 Rubber Package Screw package for M.2 SSD Quick start guide
Supported operating systemsWindows 11
Supported operating systemsWindows 10
SoftwareASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 2+ DIGI+ VRM ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial)   UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey
DesignationCE+WEEE
