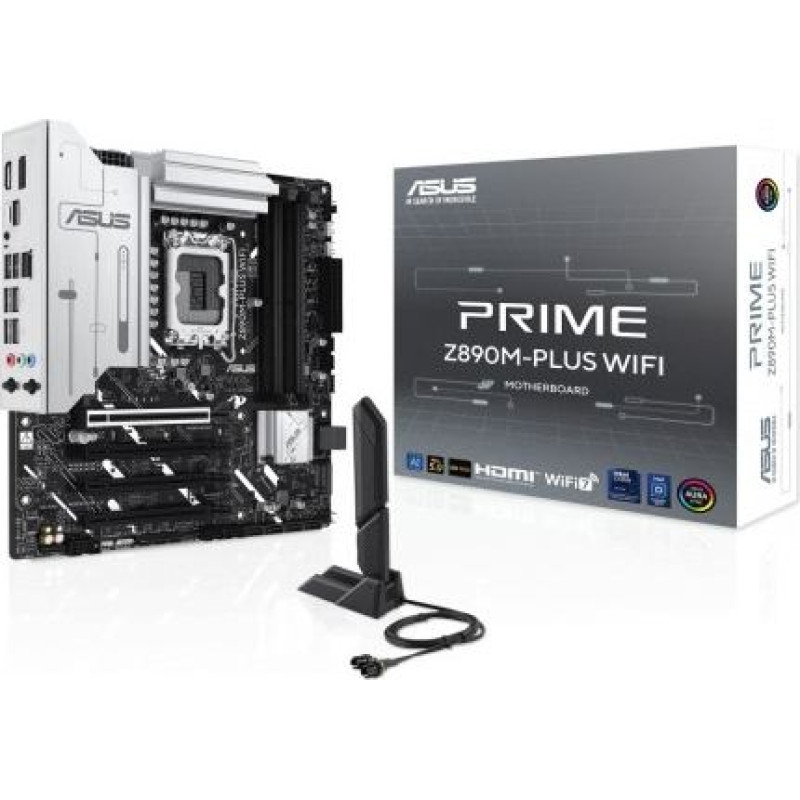

Home Computers and equipment Computer components Motherboard Asus Motherboard PRIME Z890M-PLUS WIFI S 1851 4DDR5 TB4/DP mATX /90MB1J80-M0EAY0
Asus Motherboard PRIME Z890M-PLUS WIFI S 1851 4DDR5 TB4/DP mATX /90MB1J80-M0EAY0

Asus Motherboard PRIME Z890M-PLUS WIFI S 1851 4DDR5 TB4/DP mATX /90MB1J80-M0EAY0

Delivery to the store takes 3 - 7 business days.
ID: 167278
Product Code: PRIME Z890M-PLUS WIFI
Barcode 4711387755419
252.80€
(Ex Tax: 203.87€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUIIFZ890U00
svītrkods: 4711387755419
Description
SKUKBASUIIFZ890U00
Barcode4711387755419
ModelPRIME Z890M-PLUS WIFI
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel Z890 Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency7600 MHz
Max memory size192
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 16
Expansion slots2 x PCIe 4.0 x 16
Expansion slots3 x M.2
Max. number of SATA devices6
RAIDYes
Detailed data on disk/drive interfacesIntel Core Ultra Processors*M.2_1 (M-Key) socket, type 2280 (supports PCIe 5.0 x4 mode)Intel Z890 ChipsetM.2_2 (M-Key) socket, type 2280 (supports PCIe 4.0 x4 mode)M.2_3 (M-Key) socket, type 2280 (supports PCIe 4.0 x4 mode)6 SATA 6 Gb/s ports* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, the M.2 socket on the processor only supports RAID 0/1/5.
Graphics1 x DisplayPort** 1 x HDMI port*** 1 x 20 Gbps USB port (USB Type-C) supports DisplayPort video output**** *Graphics specifications may vary depending on processor type. For updates, visit www.intel.com.**Supports up to 4K@60Hz as per DisplayPort 1.4 specification.***Supports 4K@60Hz as per HDMI 2.1 specification.****Supports up to 4K@120Hz as per DisplayPort 1.4 specification.***** VGA resolution support depends on processor or graphics card resolution.
Sound cardRealtek 7.1 Surround Sound High Definition Audio CODEC* Supports: jack detection, streaming, and front panel jack remapping Supports playback up to 24-bit/192 kHz Audio Features Audio Shielding Premium Audio Capacitors Dedicated PCB Audio Layers *7.1 Surround Sound audio output requires a chassis with an HD audio module on the front panel.
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceBluetooth
Network interfaceEthernet 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wireless and Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency bands** Supports the 160 MHz Wi-Fi 7 band, up to 2.9 Gbps transfer speeds. Bluetooth v5.4*** *Wi-Fi features may vary by operating system.For Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, only Wi-Fi 6 is supported.**The 6 GHz Wi-Fi frequency band and bandwidth regulations may vary by country.***Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB ports at back panel8
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors4 x USB 3.0
External connectors1 x RJ-45
External connectors2 x USB 2.0
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x USB 3.1
External connectors1 x USB 3.1 Type-C
External connectors1 x USB BIOS Flashback button
External connectors1 x Wi-Fi Module
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors1 x S/PDIF Out header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x Thunderbolt header
Onboard connectors1 x USB C
Onboard connectors1 x Serial port header
Onboard connectors4 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors6 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x 4pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x Addressable LED
BIOS256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form factormicro ATX
Dimensions24.4 cm x 24.4 cm
Accessories included2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 3 x M.2 SSD screw packs 1 x Quick Start Guide
Supported operating systemsWindows 11
SoftwareASUS Exclusive Software  Armory Crate  - Aura Sync  - Fan Xpert 4 (with AI Cooling II)  - Power Saving  ASUS DriverHub  ASUS GlideX  TurboV Core  ASUS CPU-Z  Norton 360 for Deluxe (60 Days Free Trial)  WinRAR (40 Days Free Trial)  UEFI BIOS  ASUS EZ DIY  - ASUS CrashFree BIOS 3  - ASUS EZ Flash 3  - ASUS UEFI BIOS EZ Mode  - ASUS MyHotkey
DesignationCE+WEEE
