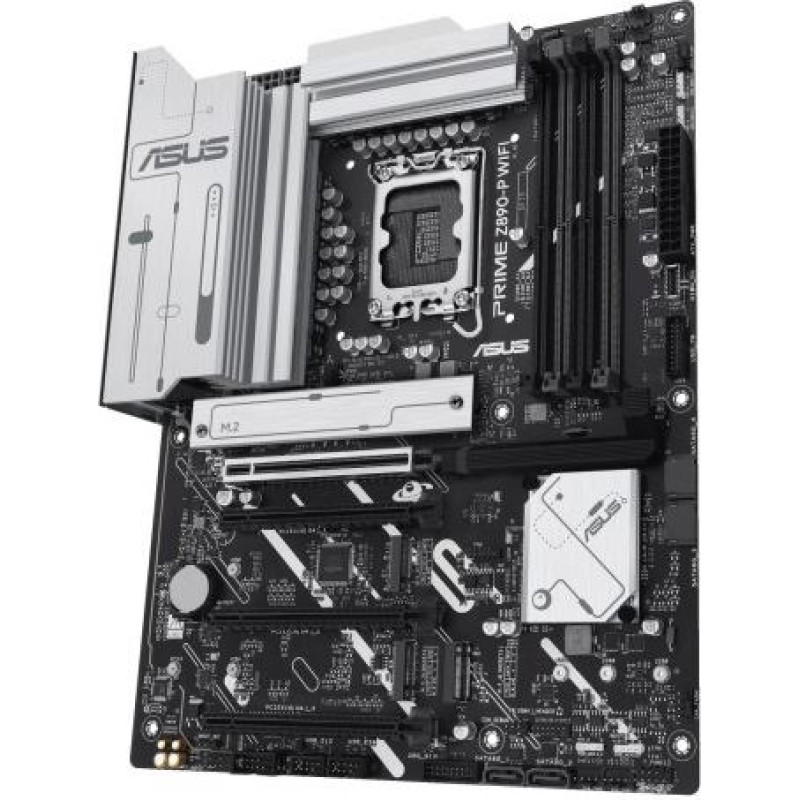

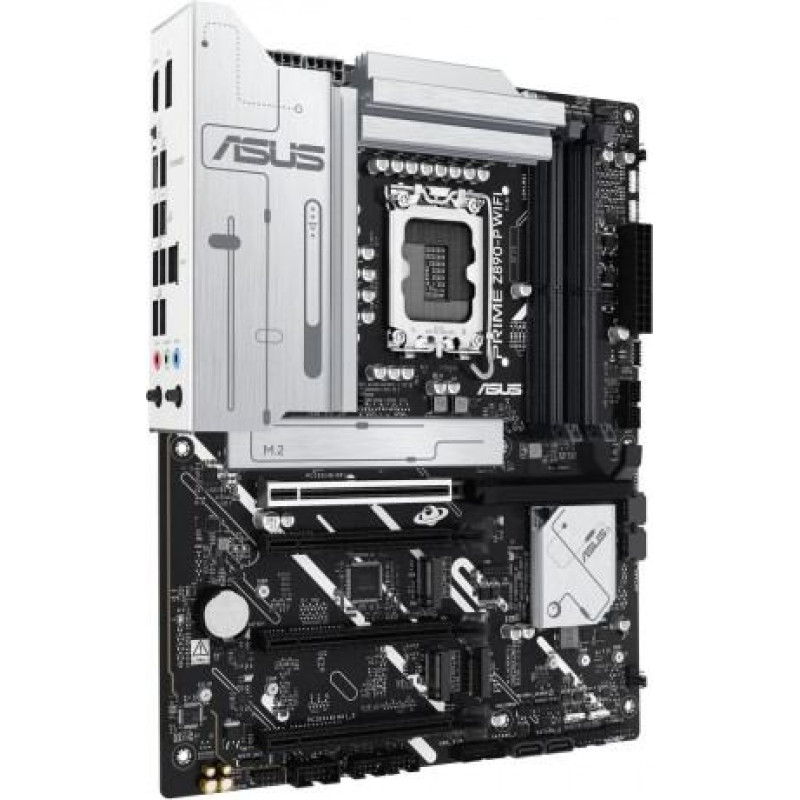

Asus Motherboard PRIME Z890-P WIFI S1851 4DDR5 HDMI/DP/TB4 ATX /90MB1I70-M0EAY0

Asus Motherboard PRIME Z890-P WIFI S1851 4DDR5 HDMI/DP/TB4 ATX /90MB1I70-M0EAY0

Out Of Stock
ID: 167284
Product Code: PRIME Z890-P WIFI
Barcode 4711387754818
262.96€
(Ex Tax: 212.06€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUIIFZ890A01
svītrkods: 4711387754818
Description
SKUKBASUIIFZ890A01
Barcode4711387754818
ModelPRIME Z890-P WIFI
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel Z890 Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency7600 MHz
Max memory size192
Expansion slots2 x PCIe 4.0 x 16
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 16
Expansion slots4 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesIntel Core Ultra Processors(series 2)*1 x PCIe 5.0 x16 slotIntel Z890 Chipset2 x PCIe 4.0 x16 slots (support x4 mode)1 x PCIe 4.0 x16 slot (supports x1 mode)* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*Intel Core Ultra Processors(series 2)*M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)Intel Z890 ChipsetM.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Graphics1 x DisplayPort** 1 x HDMI port*** 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video output**** * Graphics specifications may vary depending on processor type. For updates, visit www.intel.com.** Supports up to 4K@60Hz according to the DisplayPort 1.4 specification.*** Supports 4K@60Hz according to the HDMI 2.1 specification.**** In Thunderbolt 4 mode, supports up to 8K@60Hz x1 with DSC, with a maximum total bandwidth of up to 23.8 Gbps. For supported resolutions, see the DisplayPort 2.1 specification.**** In DP alt mode, supports up to UHBR20.***** VGA resolution support depends on the resolution of the processor or graphics card.
Sound cardRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: jack detection, streaming, and front panel jack remapping- Supports up to 24-bit/192 kHz playbackAudio Features- Audio Shielding- Premium Audio Capacitors- Dedicated PCB Audio Layers* 7.1 Surround Sound audio output requires a chassis with an HD audio module on the front panel.
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceBluetooth
Network interfaceEthernet 1 x Realtek 2.5Gb Ethernet ASUS LANGuard" Wireless & Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4*** *Wi-Fi features may vary by operating system.For Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, please note that there is no driver available; for details, refer to the Wi-Fi chipset vendor's website.**The 6GHz Wi-Fi frequency band and bandwidth regulations may vary by country.***Version Bluetooth may vary, the latest specifications can be found on the Wi-Fi module manufacturer's website.
USB ports at back panel8
USB ports on motherboard9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports3
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors1 x RJ-45
External connectors1 x USB 3.1 Type-C
External connectors1 x USB 3.1
External connectors2 x USB 3.0
External connectors1 x Line Out
External connectors1 x MIC
External connectors4 x USB 2.0
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x DisplayPort
External connectors1 x USB BIOS Flashback button
External connectors1 x Wi-Fi Module
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Thunderbolt header
Onboard connectors1 x TPM header
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors4 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x S/PDIF Out header
Onboard connectors2 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors4 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors2 x 8pin 12V
Onboard connectors1 x Serial port header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x Addressable LED
BIOS256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form factorATX
Dimensions 30.5 cm x 24.4 cm
Accessories included2 x SATA 6Gb/s cables ASUS WiFi Q-Antenna M.2 rubber boot 2 x M.2 SSD screw packs Quick start guide
Supported operating systemsWindows 11
SoftwareASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- Power SavingASUS DriverHubASUS GlideXASUS CPU-ZTurboV CoreNorton 360 Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyNPU Boost** This feature only supports Intel K series processors
DesignationCE+WEEE
