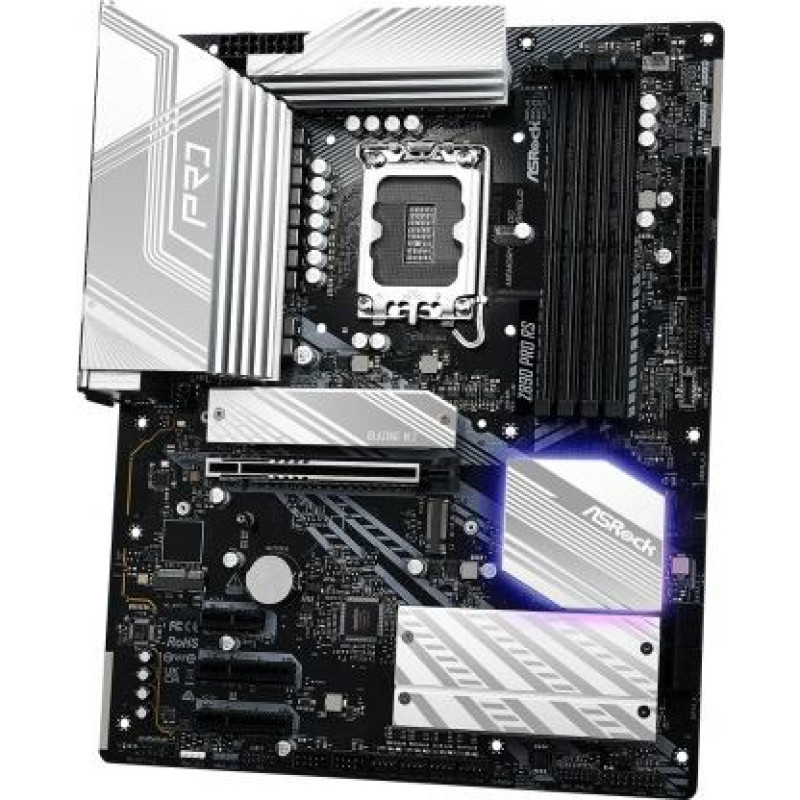

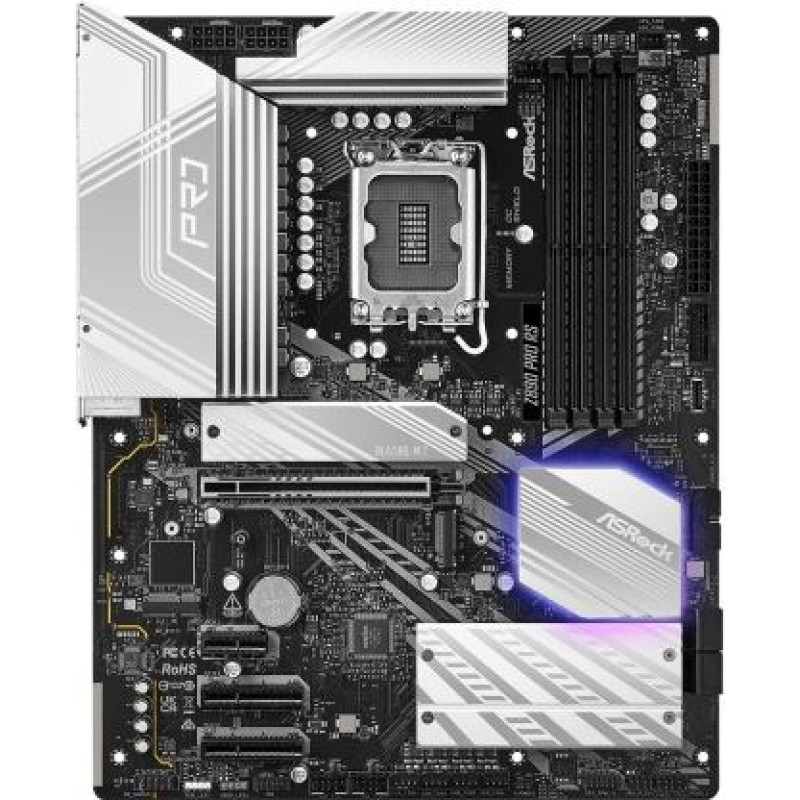

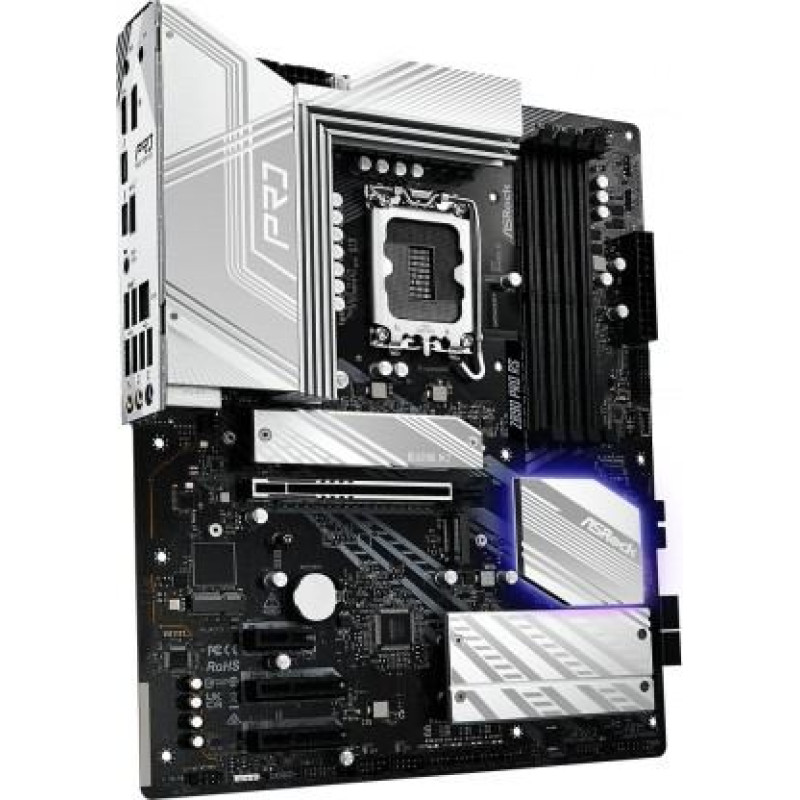

Asrock Motherboard Z890 PRO RS ATX

Asrock Motherboard Z890 PRO RS ATX

Delivery to the store takes 3 - 7 business days.
ID: 167345
Product Code: Z890 PRO RS
Barcode 4710483947452
205.45€
(Ex Tax: 165.68€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASRIIFZ890A09
svītrkods: 4710483947452
Description
SKUKBASRIIFZ890A09
Barcode4710483947452
ModelZ890 PRO RS
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel Z890
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency5600 MHz
Memory bus frequency6533 MHz
Memory bus frequency4800 MHz
Memory bus frequency4400 MHz
Memory bus frequency6800 MHz
Memory bus frequency8666 MHz
Max memory size256
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 1
Expansion slots2 x PCIe 4.0 x 4
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*- 4 x SATA3 6.0 Gb/s Connectors
GraphicsIntel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Sound card7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interface1 x 10/100/1000/2500 Mbit/s
Network interface2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
USB ports at back panel9
USB ports on motherboard9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports4
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors2 x Thunderbolt 4
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors4 x USB 2.0
External connectors2 x USB 3.2 Gen 1 Type-A
External connectors1 x DisplayPort
External connectors1 x USB 3.2 Gen 2 Type-A
External connectors2 x SMA
External connectors1 x Flash BIOS Button
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB C
Onboard connectors1 x TPM header
Onboard connectors1 x Front panel audio header
Onboard connectors2 x 4pin wentylator CPU
Onboard connectors5 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors2 x 8pin 12V
Onboard connectors1 x RGB LED strip header
Onboard connectors1 x Power LED and Speaker Header
Onboard connectors3 x Addressable LED
Form factorATX
Dimensions30.5 cm x 24.4 cm
Accessories included2 x SATA data cables 2 x M.2 socket screws M.2 socket spacer
Supported operating systemsWindows 11
SoftwareSoftware ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Other informationCertifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply required)
DesignationCE+WEEE
