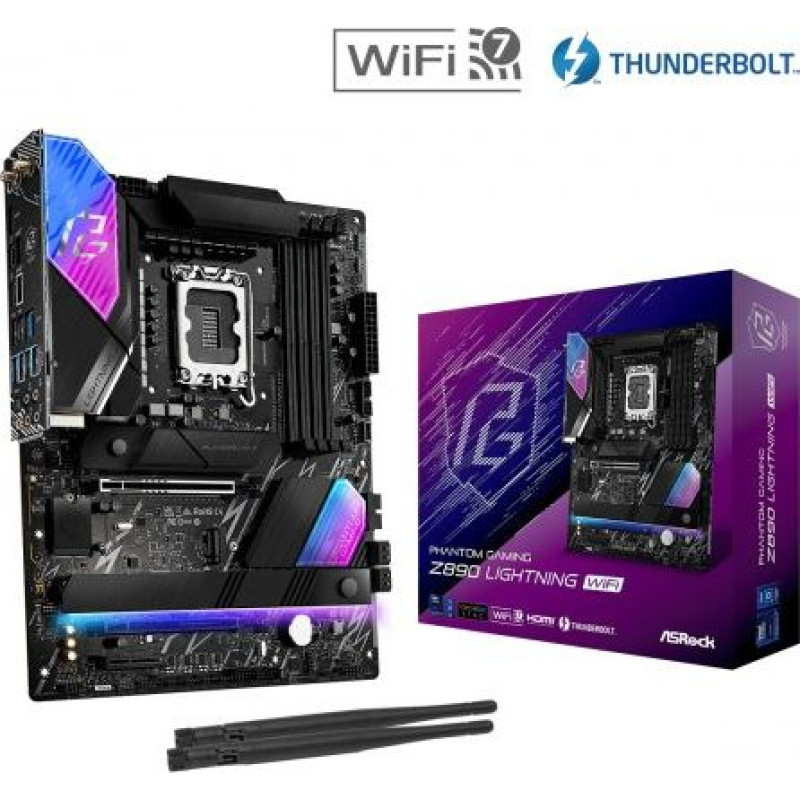

Asrock Motherboard Z890 LIGHTNING WIFI ATX

Asrock Motherboard Z890 LIGHTNING WIFI ATX

Delivery to the store takes 3 - 7 business days.
ID: 167349
Product Code: Z890 LIGHTNING WIFI
Barcode 4710483947513
254.17€
(Ex Tax: 204.98€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASRIIFZ890A05
svītrkods: 4710483947513
Description
SKUKBASRIIFZ890A05
Barcode4710483947513
ModelZ890 LIGHTNING WIFI
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel Z890
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency9066 MHz
Memory bus frequency6800 MHz
Memory bus frequency5800 MHz
Memory bus frequency5600 MHz
Memory bus frequency4800 MHz
Memory bus frequency4400 MHz
Max memory size256
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x M.2
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 4
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors
GraphicsIntel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Sound card7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceBluetooth
Network interfaceLAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Killer E3100G Supports Killer LAN Software Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 320MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
USB ports at back panel10
USB ports on motherboard9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports5
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors2 x Thunderbolt 4
External connectors1 x HDMI
External connectors1 x Central Speaker / Subwoofer
External connectors1 x Rear Speaker
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x S/PDIF
External connectors2 x USB 3.2 Gen 2 Type-A
External connectors2 x USB 2.0
External connectors4 x USB 3.2 Gen 1 Type-A
External connectors2 x SMA
External connectors1 x Flash BIOS Button
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x Thermistor Cable Header
Onboard connectors1 x RGB LED strip header
Onboard connectors5 x 4pin Chassis fan
Onboard connectors2 x 8pin 12V
Onboard connectors1 x Power led header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x TPM header
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB C
Onboard connectors2 x 4pin wentylator CPU
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors3 x Addressable LED
BIOS256Mb AMI UEFI Legal BIOS with GUI support
Form factorATX
Dimensions30.5 cm x 24.4 cm
Accessories included2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas ARGB Splitter Cable Thermistor Cable
Supported operating systemsWindows 11
SoftwareSoftware ASRock Motherboard Utility (Phantom Gaming Tuning) Killer Control Center ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Other informationCertifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply required)
DesignationCE+WEEE
