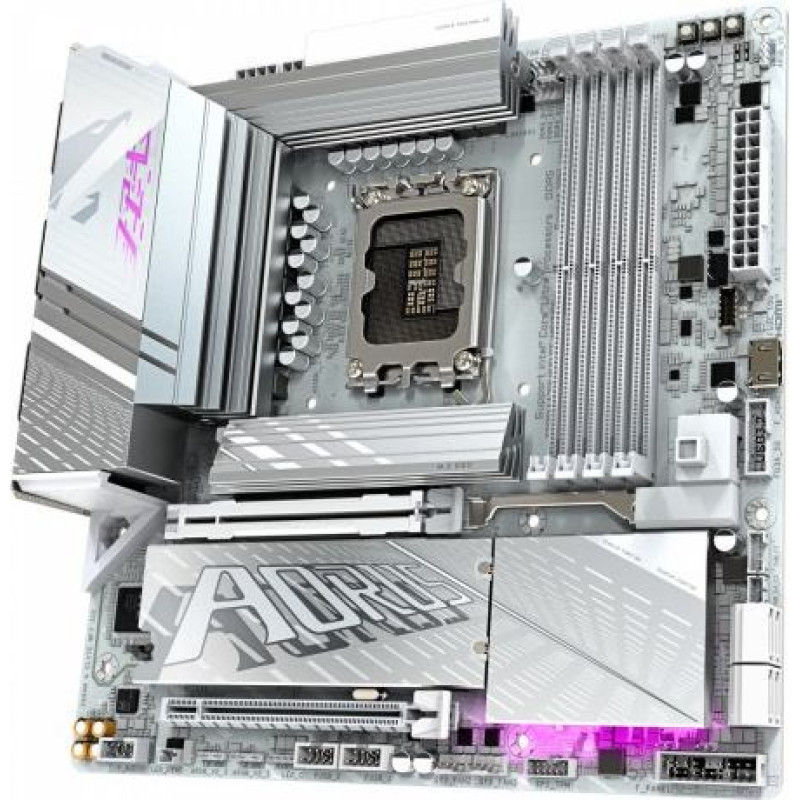

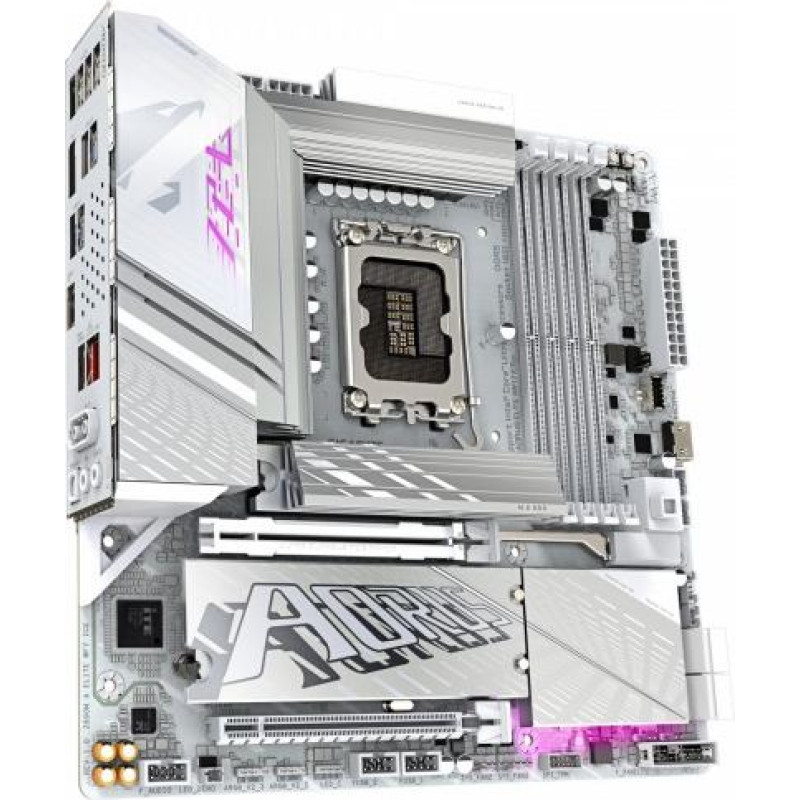

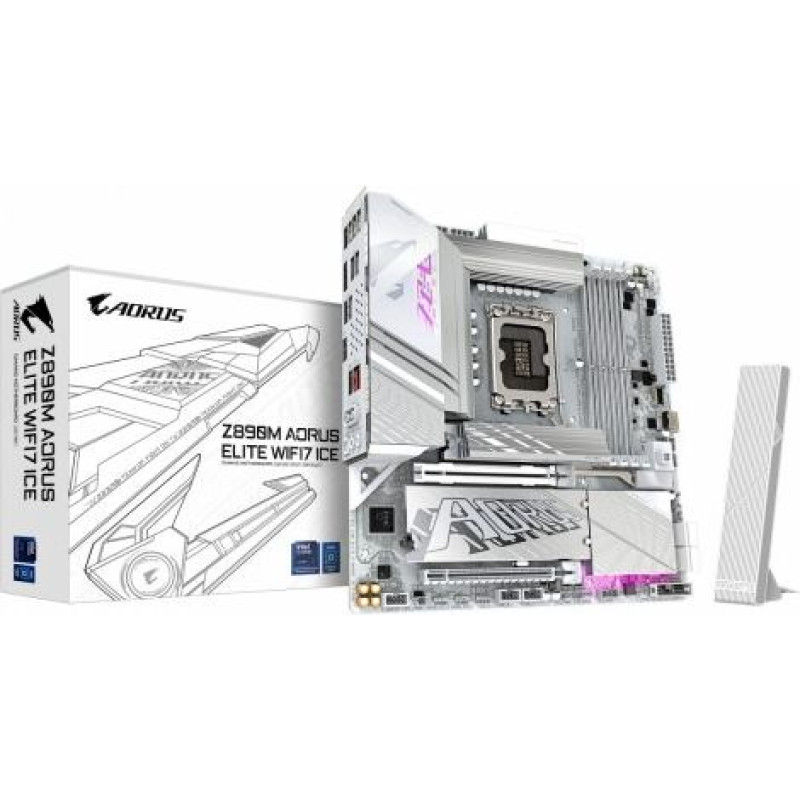

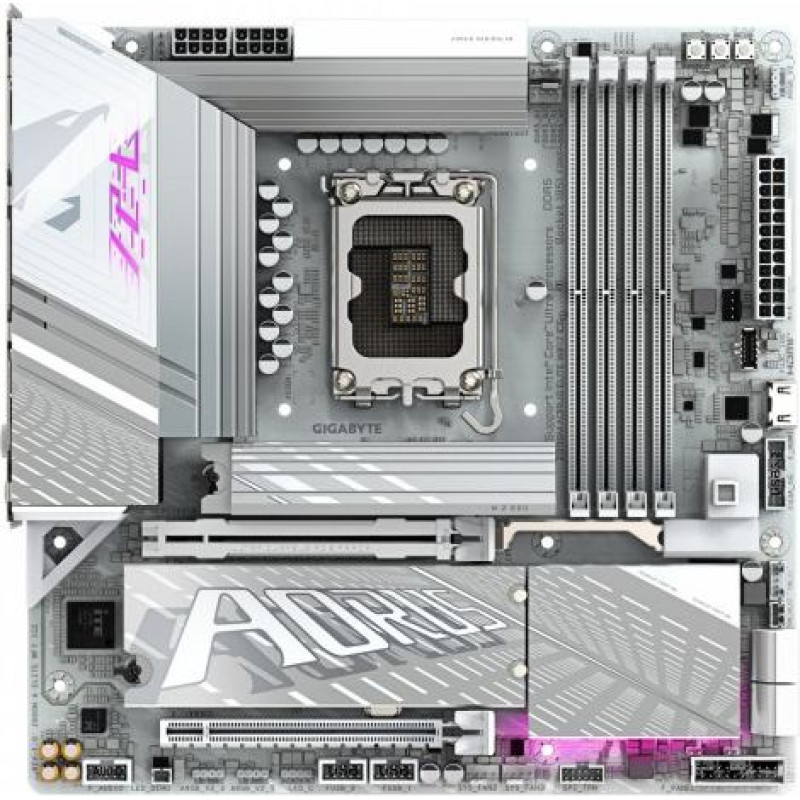

Gigabyte Motherboard Z890M A ELITE WF7 ICE

GIGABYTE

Gigabyte Motherboard Z890M A ELITE WF7 ICE

Delivery to the store takes 3 - 7 business days.
ID: 167357
Product Code: Z890M A ELITE WF7 ICE
Barcode 4719331865269
239.78€
(Ex Tax: 193.37€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIFZ890U01
svītrkods: 4719331865269
Description
SKUKBGBAIIFZ890U01
Barcode4719331865269
ModelZ890M A ELITE WF7 ICE
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUYes
Chipset manufacturerIntel
Chipset typeIntel Z890 Express Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency9066 MHz
Memory bus frequency5600 MHz
Memory bus frequency5800 MHz
Memory bus frequency6000 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency6600 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency7200 MHz
Memory bus frequency7400 MHz
Memory bus frequency7600 MHz
Memory bus frequency7800 MHz
Memory bus frequency7900 MHz
Memory bus frequency7950 MHz
Memory bus frequency8000 MHz
Memory bus frequency8200 MHz
Memory bus frequency8266 MHz
Memory bus frequency8400 MHz
Memory bus frequency8800 MHz
Memory bus frequency8933 MHz
Memory bus frequency8600 MHz
Memory bus frequency9200 MHz
Max memory size256
Expansion slots3 x M.2
Expansion slots1 x PCIe 4.0 x 4
Expansion slots1 x PCIe x 16
Expansion slots1 x PCIe 5.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesExpansion SlotsCPU:- 1 PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot only supports a graphics card or NVMe SSD. If you only want to install one graphics card, you must install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 speed (PCIEX4)Storage InterfaceCPU:- 1 x M.2 connector (Socket 3, M-key, supports 2580/2280 PCIe 5.0 x4/x2 SSDs) (M2A_CPU)- 1 x M.2 connector (Socket 3, M-key, supports 2580/2280 PCIe 4.0 x4/x2 SSDs) (M2B_CPU)Chipset:- 1 x M.2 connector (Socket 3, M-key, supports 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs) (M2Q_SB)- 4 x SATA 6 Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
GraphicsIntegrated graphics processor - Intel HD Graphics support: 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support DisplayPort 2.1 version 1 x DisplayPort port, supporting a maximum resolution of 3840x2160@144 Hz * Support DisplayPort 2.1 version 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support HDMI 1.4 version (Graphics specifications may vary depending on CPU support.) Supports up to 3 displays simultaneously
Sound cardRealtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * Audio jack functionality can be changed via audio software. To configure 7.1-channel audio, you must access the audio software for audio settings. S/PDIF output support
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceBluetooth
Network interfaceLAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
USB ports at back panel10
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports5
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

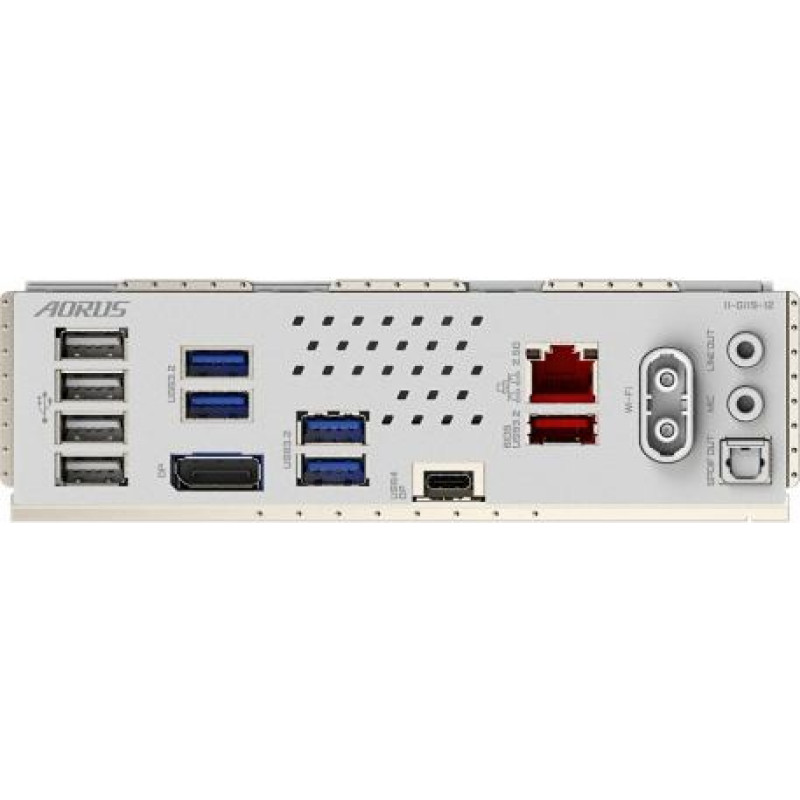

External connectors1 x USB4 Type-C
External connectors2 x SMA
External connectors1 x S/PDIF
External connectors4 x USB 2.0
External connectors4 x USB 3.2 Gen 1 Type-A
External connectors1 x USB 3.2 Gen 2 Type-A
External connectors1 x MIC
External connectors1 x DisplayPort
External connectors1 x Line Out
External connectors1 x RJ-45
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x Addressable LED
Onboard connectors1 x HDMI
Onboard connectors2 x Thunderbolt
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Power button
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors2 x 8pin 12V
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors1 x Reset button
Onboard connectors1 x Reset jumper
Onboard connectors1 x Q-Flash Plus button
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factormicro ATX
Dimensions24.4 cm x 24.4 cm
Supported operating systemsWindows 11
SoftwareNorton Internet Security (OEM version) LAN bandwidth management software
DesignationCE+WEEE
