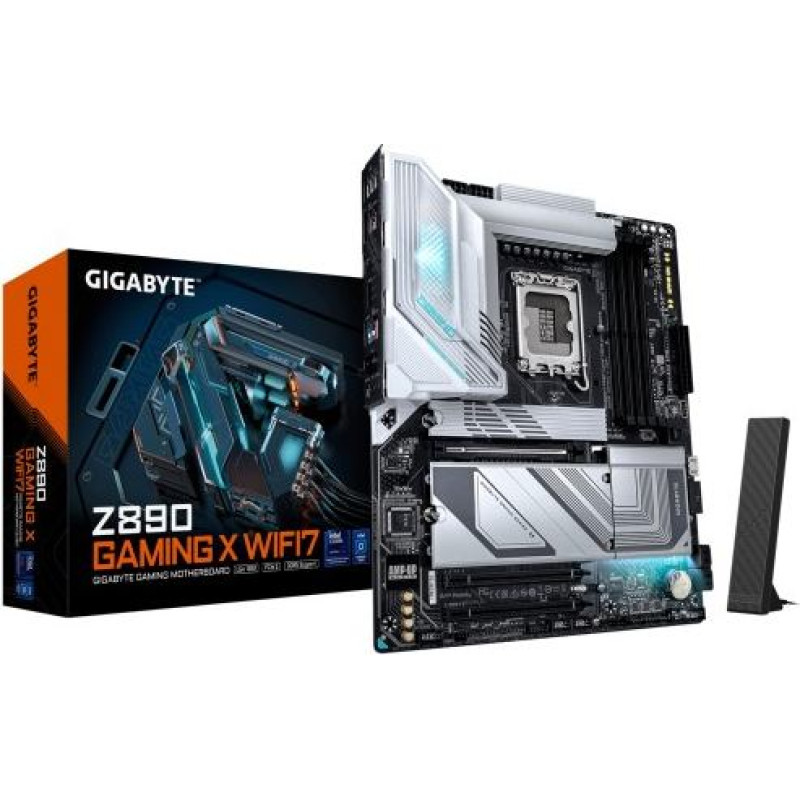

Gigabyte Motherboard Z890 GAMING X WIFI7 s1851 4DDR5 DP/TB4 ATX

GIGABYTE

Gigabyte Motherboard Z890 GAMING X WIFI7 s1851 4DDR5 DP/TB4 ATX

Delivery to the store takes 3 - 7 business days.
ID: 167359
Product Code: Z890 GAMING X WIFI7
Barcode 4719331864941
249.43€
(Ex Tax: 201.16€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIFZ890A07
svītrkods: 4719331864941
Description
SKUKBGBAIIFZ890A07
Barcode4719331864941
ModelZ890 GAMING X WIFI7
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel Z890 Express
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency6000 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency5800 MHz
Memory bus frequency5600 MHz
Memory bus frequency6600 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency7200 MHz
Memory bus frequency7400 MHz
Memory bus frequency7600 MHz
Memory bus frequency7800 MHz
Memory bus frequency7900 MHz
Memory bus frequency7950 MHz
Memory bus frequency8000 MHz
Memory bus frequency8200 MHz
Memory bus frequency8266 MHz
Memory bus frequency8400 MHz
Memory bus frequency8600 MHz
Memory bus frequency8800 MHz
Max memory size256
Expansion slots1 x PCIe 5.0 x 16
Expansion slots2 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU: 1 x M.2 connector (Socket 3, M-key, Type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M-key, Type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M-key, Type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M-key, Type 22110/2280 SATA and Type 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA connector 6Gb/s Support for RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devicesSupport for RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
GraphicsIntegrated graphics processor - Intel HD Graphics support 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video output and a maximum resolution of 3840x2160@144 Hz. Support DisplayPort 2.1 version. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz. Support DisplayPort 2.1 version. 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz. Support HDMI 1.4. (Graphics specifications may vary depending on CPU support.)Support for up to 3 displays simultaneously.
Sound cardRealtek audio codec High Definition Audio Support Number of audio channels 2/4/5.1/7.1 S/PDIF Out Support
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceBluetooth
Network interfaceLAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless communication:MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard
USB ports at back panel10
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports3
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

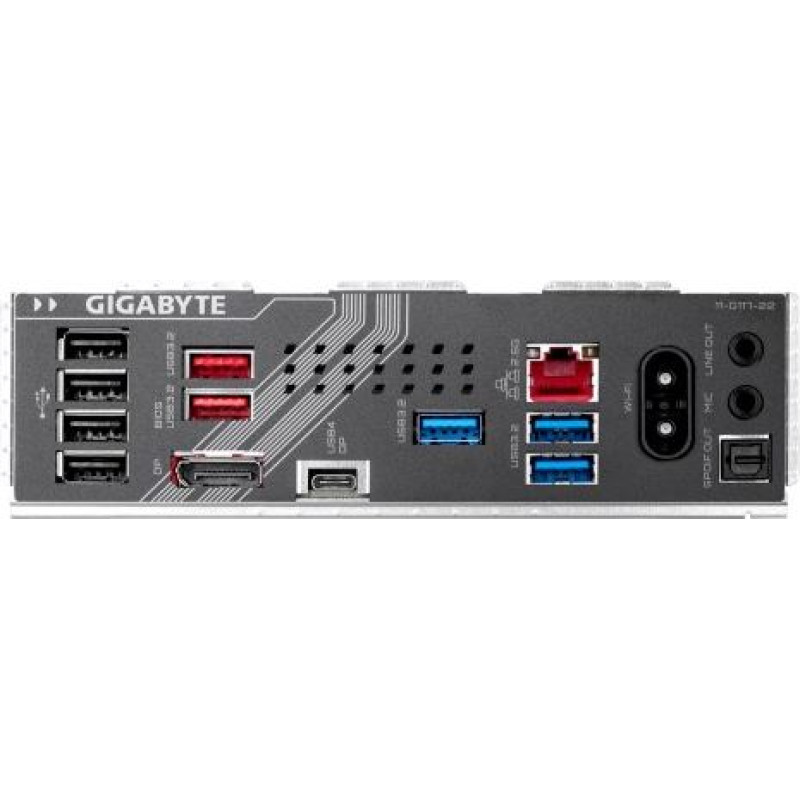

External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x S/PDIF
External connectors4 x USB 2.0
External connectors3 x USB 3.2 Gen 1 Type-A
External connectors2 x USB 3.2 Gen 2 Type-A
External connectors1 x USB4 Type-C
External connectors1 x DisplayPort
External connectors2 x SMA
Onboard connectors1 x Power button
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors1 x HDMI
Onboard connectors2 x Thunderbolt
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors2 x 8pin 12V
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors4 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors4 x USB 2.0/1.1
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x TPM header
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Reset button
Onboard connectors1 x Reset jumper
Onboard connectors1 x Q-Flash Plus button
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x Addressable LED
BIOS1 x 256 Mbit flash Using licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factorATX
Dimensions30.5 x 24.4 cm
Supported operating systemsWindows 11
SoftwareNorton Internet Security (OEM version) LAN Bandwidth Management Software
DesignationCE+WEEE
