Asus Motherboard ROG STRIX X870-F GAMING WIFI 4DDR5 HDMI/USB-C/DP

Asus Motherboard ROG STRIX X870-F GAMING WIFI 4DDR5 HDMI/USB-C/DP

Delivery to the store takes 3 - 7 business days.
ID: 167435
Product Code: ROG STRIX X870-F GAMING WIFI
Barcode 4711387732045
474.78€
(Ex Tax: 382.89€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUAA8X870A07
svītrkods: 4711387732045
Description
SKUKBASUAA8X870A07
Barcode4711387732045
ModelROG STRIX X870-F GAMING WIFI
CPU socketSocket AM5
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 9
Processor familyAMD Ryzen 3
Processor familyAMD Ryzen 5
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD X870
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8000 MHz
Max memory size192
Expansion slots1 x PCIe 5.0 x 16
Expansion slots4 x M.2
Expansion slots2 x PCIe 4.0 x 16
Max. number of SATA devices2
RAIDYes
Detailed data on disk/drive interfacesSupports 4 x M.2 slots and 2 x SATA 6Gb/s ports*AMD Ryzen 9000 and 7000 Series Desktop Processors*M.2_1 (M-Key) Socket Type 2242/2260/2280 (Supports PCIe 5.0 x4 mode)M.2_2 (M-Key) Socket Type 2242/2260/2280/22110 (Supports PCIe 5.0 x4 mode)**AMD Ryzen 8000 Series Desktop Processors**M.2_1 (M-Key) Socket Type 2242/2260/2280 (Supports PCIe 4.0 x4/x2 mode)M.2_2 (M-Key) Socket Type 2242/2260/2280/22110 (not supported)****AMD X870 ChipsetM.2_3 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode)***M.2_4 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode)2 x SATA 6Gb/s ports* AMD RAIDXpert2 technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 function is only supported by AMD Ryzen 9000 series processors.** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied by SSD, PCIEX16(G5) will only operate at x8 mode.*** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied by SSD, PCIEX16(G4) will be disabled.**** M.2_2 will be disabled when using AMD Ryzen 8000 series desktop processors.
Graphics1 x DisplayPort** 1 x HDMI port*** 2 x USB4 (40Gbps) ports support USB Type-C display outputs**** * Please refer to AMD processor specifications.** Supports up to 8K@30Hz according to DisplayPort 1.4 specification.*** Supports 4K@60Hz according to HDMI 2.1 specification.**** Supports up to 4K@60Hz according to DisplayPort 1.4a specification**** VGA resolution support depends on CPU or graphics card resolution.
Sound cardROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance detection for front and rear headphone outputs- Supports: jack detection, streaming, front panel microphone jack repurposing- High-quality stereo playback output SNR 120 dB and recording input SNR 110 dB- Supports up to 32-bit/384 kHz playback on the front panel"Audio Features- SupremeFX Shielding Technology- Savitech SV3H712 Amplifier- Rear optical S/PDIF output port- Premium audio capacitors- Audio shield* The LINE OUT port on the rear panel does not support surround sound. If you want to enjoy surround sound, connect your audio output device to the audio jack on the front panel of the chassis or use a USB audio device.
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceBluetooth
Network interfaceEthernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency band** Supports Wi-Fi 7 320 MHz band, up to 6.5 Gbps transfer speed. Bluetooth v5.4*** *Wi-Fi features may vary by OSFor Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, please note that there is no driver available, please refer to the Wi-Fi chipset vendor's website for details.**6GHz Wi-Fi frequency band and bandwidth regulations may vary by country.***Bluetooth version may vary. Please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB ports at back panel12
USB ports on motherboard9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports9
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

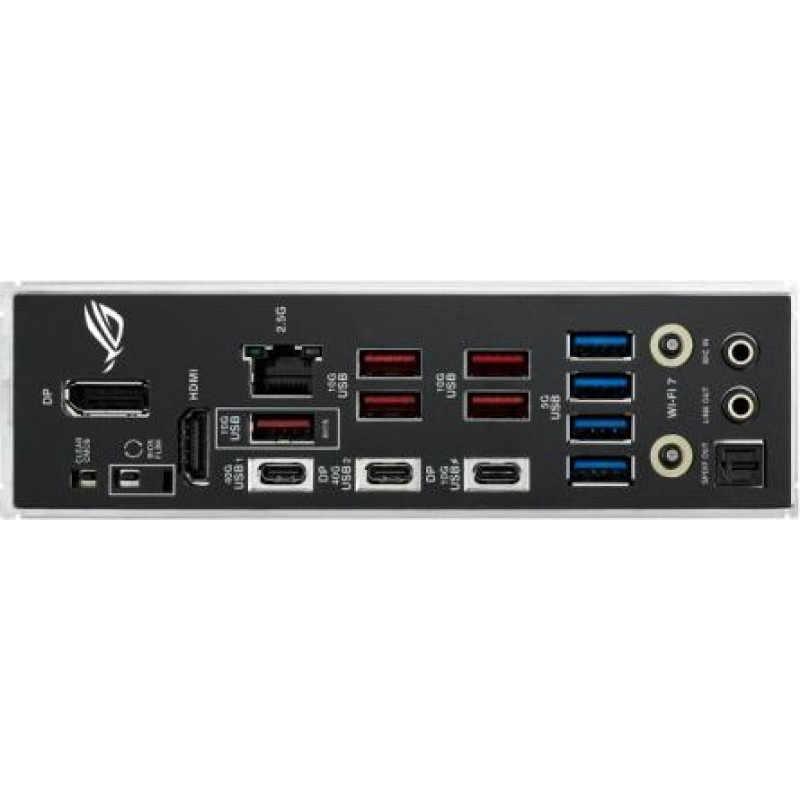

External connectors1 x HDMI
External connectors5 x USB 3.1
External connectors1 x USB 3.1 Type-C
External connectors4 x USB 3.0
External connectors1 x RJ-45
External connectors1 x S/PDIF
External connectors1 x Line Out (front)
External connectors1 x MIC (front)
External connectors1 x DisplayPort
External connectors2 x USB4 Type-C
External connectors1 x Przycisk Clear CMOS
External connectors1 x Flash BIOS Button
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x Front panel audio header
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors5 x 4pin Chassis fan
Onboard connectors1 x USB C
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors2 x USB 3.0 header
Onboard connectors1 x System panel header
Onboard connectors4 x M.2
Onboard connectors2 x SATA III 6Gb/s
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x CPU mode switch
Onboard connectors1 x Thermal sensor connector
Onboard connectors1x CPU/DRAM overvoltage jumper
Onboard connectors3 x Addressable LED
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Form factorATX
Dimensions30.5 cm x 24.4 cm

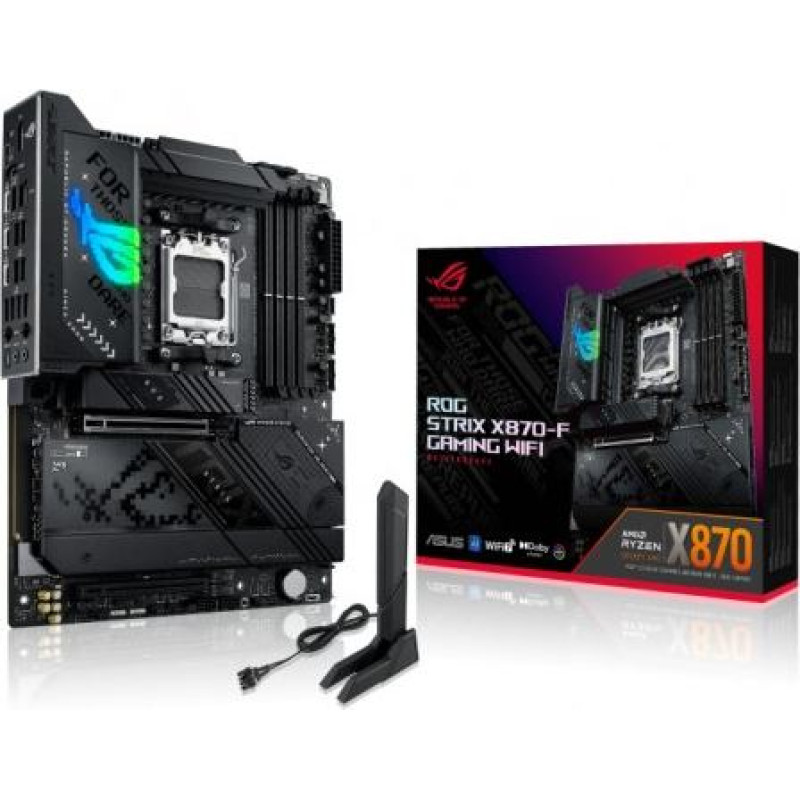

Accessories included2 x SATA 6Gb/s Cables M.2 22110 Thermal Pad ASUS WiFi Q-Antenna Cable Tie Pack M.2 Q-Latch Pack M.2 Q-Slide Pack ROG Keychain ROG Strix Stickers 4 x M.2 Rubber Packs Quick Start Guide
Supported operating systemsWindows 11
SoftwareROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive SoftwareArmory Crate- AIDA64 Extreme (60 days free trial)- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)-GameFirst- HWiNFO- Power SavingASUS Driver HubASUS GlideXUSB Wattage WatcherTurboV CoreAdobe Creative Cloud (Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyDynamic OC SwitcherFlexKey
DesignationCE+WEEE
