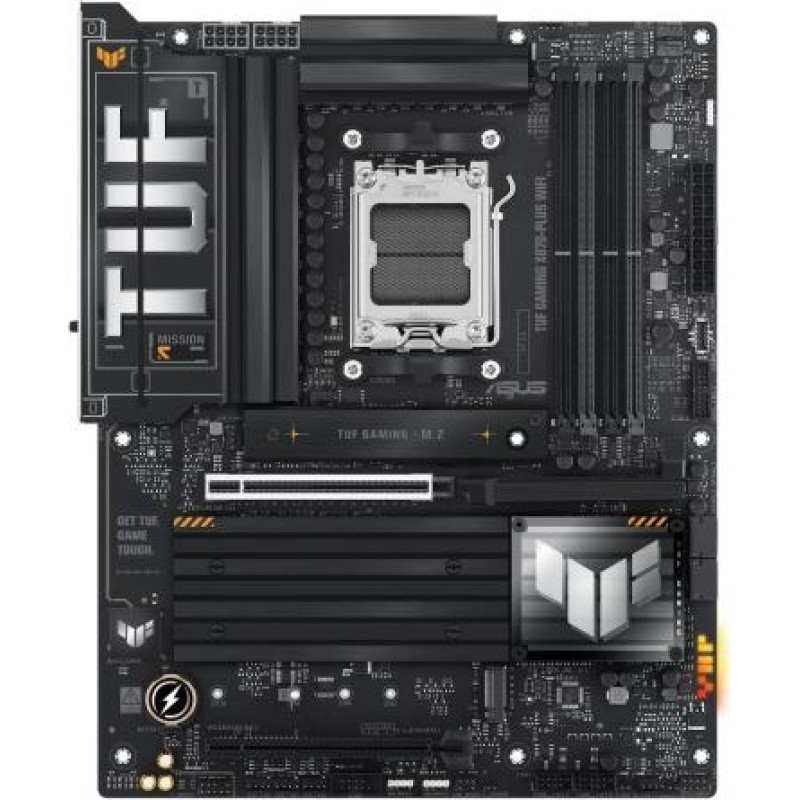

Asus Motherboard TUF GAMING X870-PLUS WI FI AM5 4DDR5 HDMI/USB-C

Asus Motherboard TUF GAMING X870-PLUS WI FI AM5 4DDR5 HDMI/USB-C

Delivery to the store takes 3 - 7 business days.
ID: 167440
Product Code: TUF GAMING X870-PLUS WIFI
Barcode 4711387723609
342.25€
(Ex Tax: 276.00€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUAA8X870A01
svītrkods: 4711387723609
Description
SKUKBASUAA8X870A01
Barcode4711387723609
ModelTUF GAMING X870-PLUS WIFI
CPU socketSocket AM5
Processor familyAMD Ryzen 3
Processor familyAMD Ryzen 5
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 9
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD X870 Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8000 MHz
Max memory size192
Expansion slots1 x PCIe 5.0 x 16
Expansion slots2 x PCIe 4.0 x 16
Expansion slots4 x M.2
Max. number of SATA devices2
RAIDYes
Sound cardRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC- Impedance detection for front and rear headphone outputs- Internal audio amplifier to enhance the highest sound quality for headphones and speakers- Supports: jack detection, streaming, front panel jack repurposing- High quality stereo playback output SNR 120 dB and recording input SNR 113 dB (line in)- Supports up to 32-bit/192 kHz playback*Audio Features- Audio Shielding- Premium audio capacitors- Dedicated PCB audio layers- Audio cover- Unique de-pop circuit* Due to HDA bandwidth limitations, 32-bit/192 kHz is not supported for 7.1 Surround Sound.
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceBluetooth
Network interfaceEthernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless & Bluetooth WiFi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating systemFor Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.For Windows 10, please note that no driver is available, please refer to the Wi-Fi chipset vendor's website for details.**Wi-Fi 6GHz frequency band and bandwidth regulators may vary between countries.***The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB ports at back panel10
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports6
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors1 x USB 2.0
External connectors3 x USB 3.1
External connectors1 x HDMI
External connectors1 x Central Speaker / Subwoofer
External connectors1 x Rear Speaker
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors4 x USB 3.0
External connectors2 x USB 3.1 Type-C
External connectors1 x USB BIOS Flashback button
Onboard connectors1 x Front panel audio header
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x Serial port header
Onboard connectors1 x System panel header
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors4 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors2 x SATA III 6Gb/s
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x Thermal sensor connector
Onboard connectors3 x Addressable LED
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Form factorATX
Accessories included2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 2 x M.2 rubber packaging 1 x M.2 SSD screw packaging 1 x TUF GAMING sticker 1 x Quick Start Guide
Supported operating systemsWindows 11
SoftwareASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- Power SavingASUS DriverHubASUS GlideXUSB Wattage WatcherTurboV CoreTUF GAMING CPU-ZDTS Audio ProcessingNorton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- ASUS MyHotkey
DesignationCE+WEEE
