Home Computers and equipment Computer components Motherboard Gigabyte B650M S2H Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

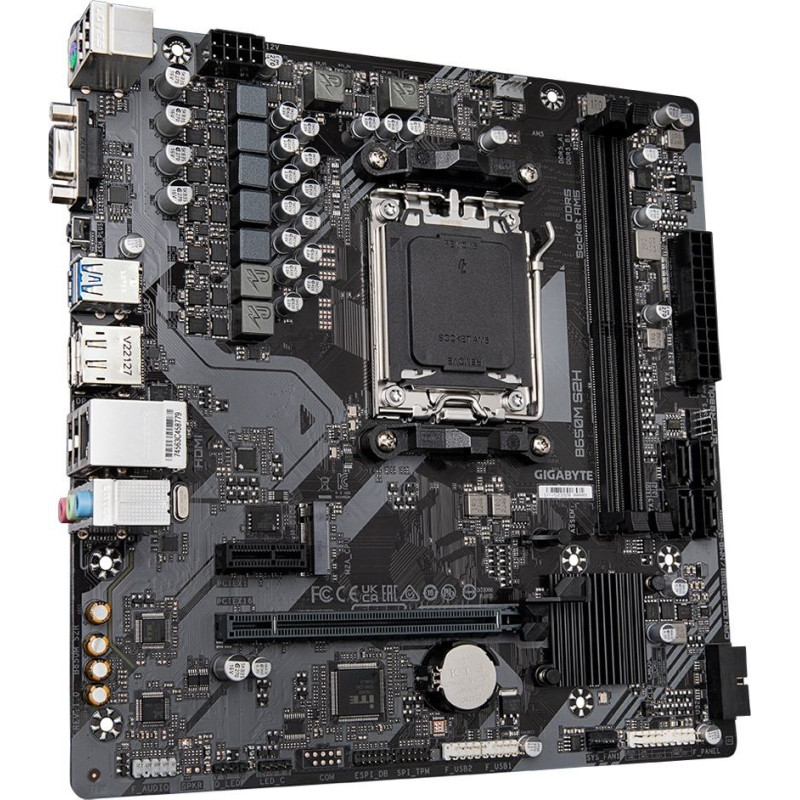

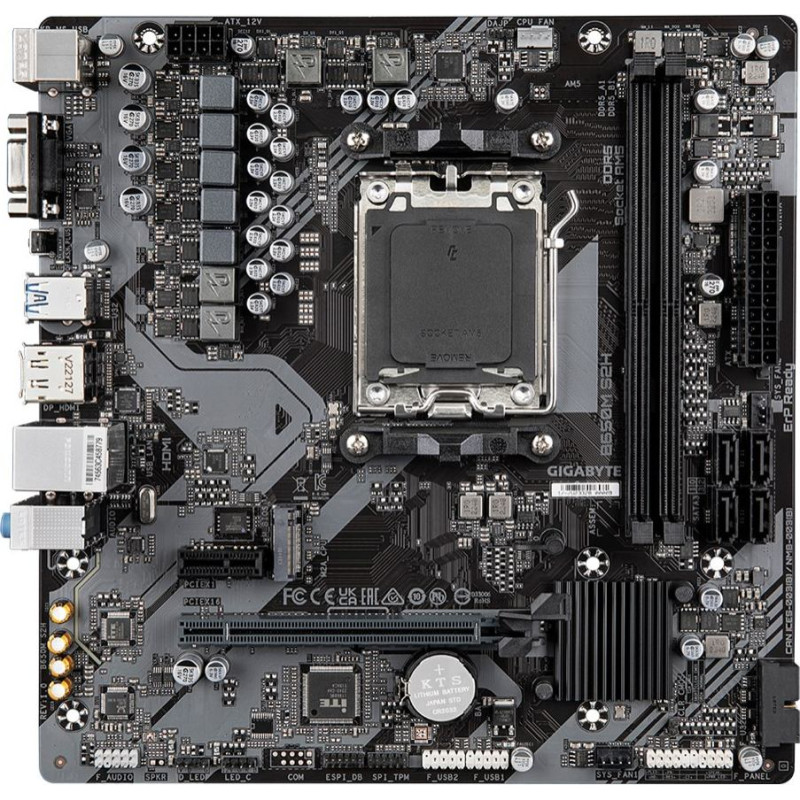

Gigabyte B650M S2H Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

GIGABYTE

Gigabyte B650M S2H Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Delivery to the store takes 3 - 7 business days.
ID: 167579
Product Code: B650M S2H
Barcode 4719331856298
92.72€
(Ex Tax: 74.78€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Processor socketSocket AM5
Supported processor socketsSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 9000 Series
HDCPYes
Maximum resolution4096 x 2160 pixels
DirectX version12.0
Parallel processing technology supportNot supported
Motherboard form factormicro ATX
Motherboard chipsetAMD B650
PC health monitoringVoltage
Windows operating systems supportedWindows 11 x64
Motherboard chipset familyAMD
Audio chipRealtek ALC897
Cooling typePassive
Product colourBronze
Power source typeATX
Audio output channels7.1 channels
Supported memory clock speed (max)6400 MHz
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Maximum internal memory per slot64 GB
ECC сompatibilityNon-ECC
Number of memory slots2
Supported memory clock speeds6200
Maximum internal memory128 GB
Unbuffered memoryYes
Memory channelsDual-channel
Depth225 mm
Height35 mm
Width230 mm
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiNo
LAN controllerRealtek RTL8111H
RGB LED pin headerYes
12V power connectorYes
Number of CPU fan connectors1
Number of EPS power connectors (8-pin)1
Number of SATA III connectors4
Number of chassis fan connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
ATX Power connector (24-pin)Yes
EPS power connector (8-pin)Yes
Number of RGB LED pin headers2
Front panel audio connectorYes
TPM connectorYes
Front panel connectorYes
USB 2.0 connectors2
CPU fan connectorYes
Desktop Management Interface (DMI) version2.7
Clear CMOS jumperYes
BIOS typeUEFI AMI
Package width265 mm
Package weight917 g
Package height54 mm
Package depth265 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Screws includedYes
Batteries includedYes
Number of HDDs supported4
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID levels10
RAID supportYes
Number of storage drives supported5
Headphone outputs1
Line-inYes
VGA (D-Sub) ports quantity1
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
DisplayPort version1.4
HDMI version2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
PS/2 ports quantity1
HDMI ports quantity1
USB 2.0 ports quantity4
Microphone inYes
PCI Express x16 (Gen 4.x) slots1
PCI Express x1 (Gen 3.x) slots1
Number of M.2 (M) slots1
1st M.2 largest key size2580
1st M.2 highest PCI Express generation4.0
Number of battery cells1
Lithium weight per battery0.07 g
Battery weight3 g
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Products per shipping (inner) case1 pc(s)
Country of originChina
WarningsDispose of in accordance with local regulations for electronic waste.
