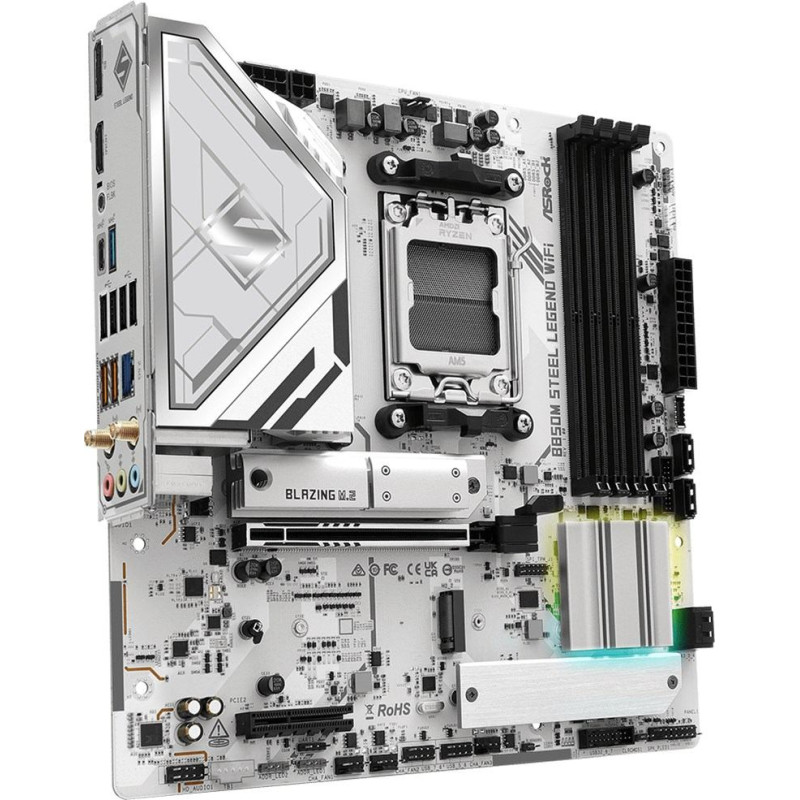

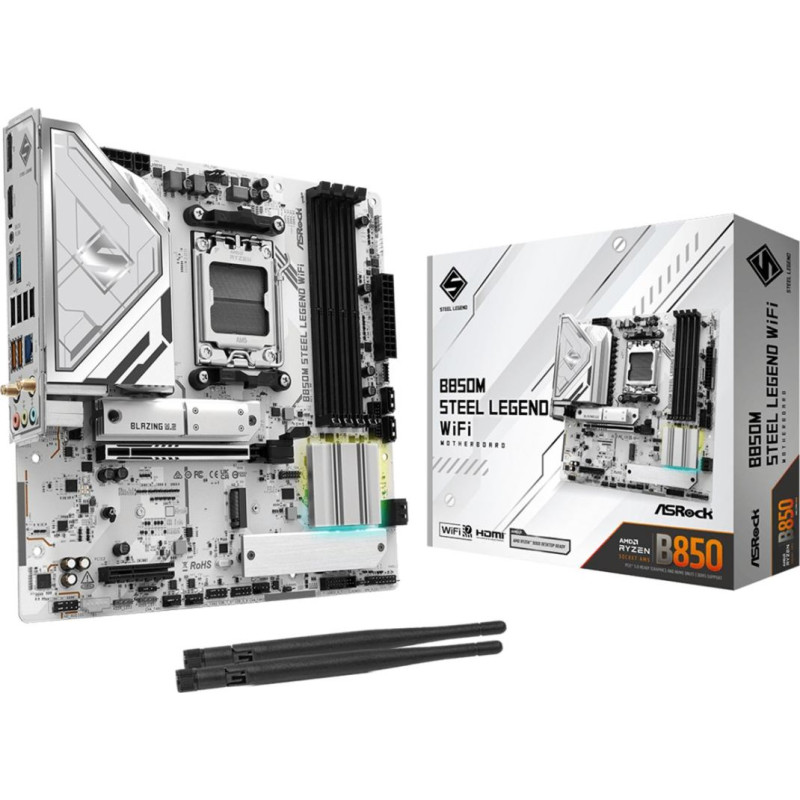

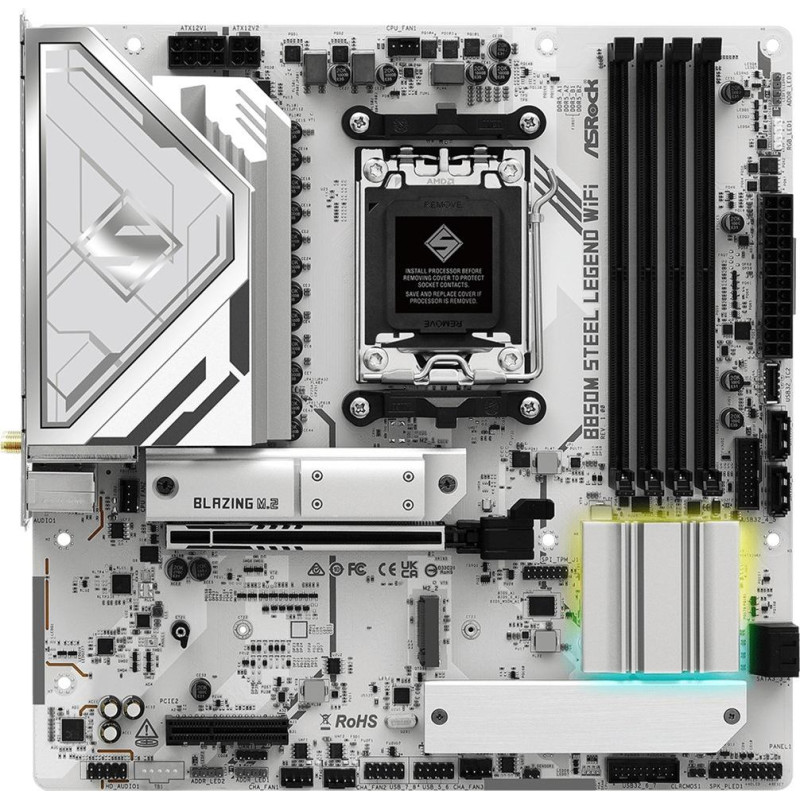

Asrock B850M Steel Legend WiFi AMD B850 Socket AM5 micro ATX

Asrock B850M Steel Legend WiFi AMD B850 Socket AM5 micro ATX

Delivery to the store takes 3 - 7 business days.
ID: 167584
Product Code: B850M STEEL LEGEND WIFI
Barcode 4711581490499
153.41€
(Ex Tax: 123.72€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 9000 Series
Processor socketSocket AM5
HDCPYes
Maximum resolution3840 x 2160 pixels
Parallel processing technology supportNot supported
CertificationFCC, CE, ErP/EuP
Motherboard chipset familyAMD
Audio chipRealtek ALC1220
Windows operating systems supportedWindows 11 x64
Audio output channels7.1 channels
Motherboard form factormicro ATX
Product colourWhite
Motherboard chipsetAMD B850
Memory channelsDual-channel
Maximum internal memory256 GB
Unbuffered memoryYes
Supported memory typesDDR5-SDRAM
Number of memory slots4
ECC сompatibilityECC & Non-ECC
Memory slots typeDIMM
Depth244 mm
Width244 mm
Top Wi-Fi standardWi-Fi 7 (802.11be)
BluetoothYes
LAN controllerDragon RTL8125BG
Wi-Fi standards802.11g
Bluetooth version5.4
Wi-FiYes
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
ATX Power connector (24-pin)Yes
TPM connectorYes
Number of chassis fan connectors3
CPU fan connectorYes
Number of SATA III connectors4
EPS power connector (8-pin)Yes
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
USB 2.0 connectors2
12V power connectorYes
Number of EPS power connectors (8-pin)1
Number of RGB LED pin headers1
Number of CPU fan connectors2
RGB LED pin headerYes
BIOS typeUEFI AMI
Cables includedSATA
Screws includedYes
M.2 standoff includedYes
Antenna includedYes
RAID levels10
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
RAID supportYes
Supported storage drive typesHDD & SSD
Number of storage drives supported7
HDMI version2.1
DisplayPort version1.4
USB connector typeUSB Type-C
DisplayPorts quantity1
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Headphone outputs3
WiFi-AP antenna jack2
Microphone inYes
Line-inYes
Number of M.2 (M) slots3
2nd M.2 largest key size2280
1st M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
PCI Express x16 (Gen 5.x) slots1
2nd M.2 highest PCI Express generation4.0
PCI Express x4 (Gen 4.x) slots1
WarningsDispose of in accordance with local regulations for electronic waste.
