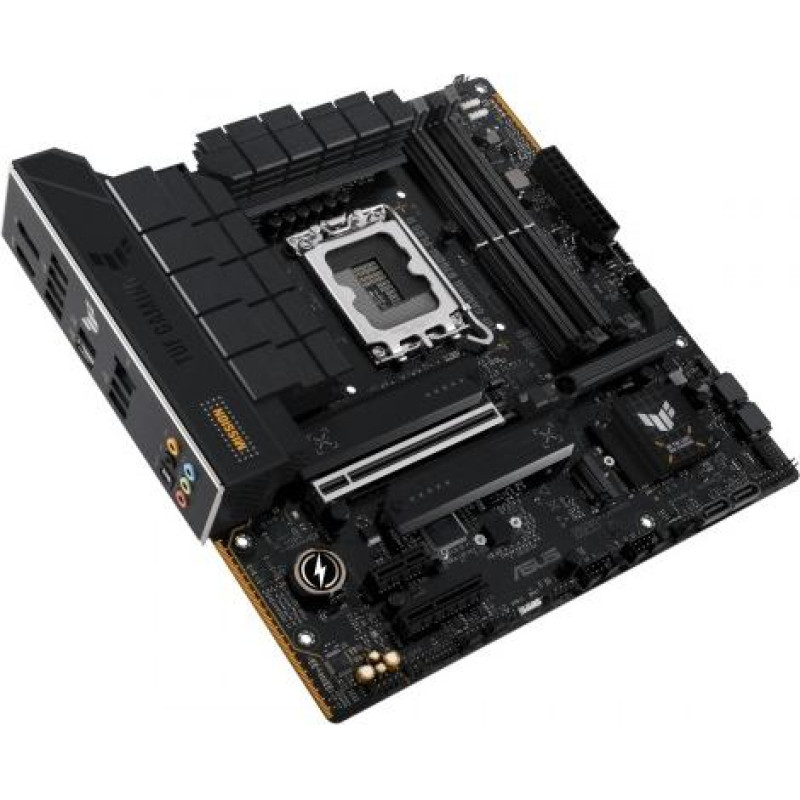

Asus TUF GAMING B760M-PLUS II s1700 4DDR5 HDMI mAT

Asus TUF GAMING B760M-PLUS II s1700 4DDR5 HDMI mAT

Delivery to the store takes 3 - 7 business days.
ID: 167877
Product Code: TUF GAMING B760M-PLUS II
Barcode 4711387469798
147.72€
(Ex Tax: 119.13€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUIIEB760U08
svītrkods: 4711387469798
Description
SKUKBASUIIEB760U08
Barcode4711387469798
CPU socketLGA1700
Processor familyIntel Celeron
Processor familyIntel Pentium
Processor familyIntel Core
Integrated CPUNo
Chipset manufacturerIntel
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency4800 MHz
Memory bus frequency5000 MHz
Memory bus frequency5200 MHz
Memory bus frequency5400 MHz
Memory bus frequency7400 MHz
Memory bus frequency7200 MHz
Memory bus frequency7000 MHz
Memory bus frequency6800 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency6600 MHz
Memory bus frequency6000 MHz
Memory bus frequency5800 MHz
Memory bus frequency5600 MHz
Memory bus frequency7800 MHz
Memory bus frequency7600 MHz
Memory bus frequency133 MHz
Max memory size192
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 4
Expansion slots1 x PCIe 3.0 x 1
Max. number of SATA devices4
RAIDYes
Network interface1 x 10/100/1000/2500 Mbit/s
USB ports at back panel8
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x USB 3.0 Type-C
External connectors1 x USB 3.1
External connectors1 x Central Speaker / Subwoofer
External connectors1 x Rear Speaker
External connectors1 x Line In
External connectors2 x USB 3.0
External connectors4 x USB 2.0
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x S/PDIF
External connectors1 x RJ-45
External connectors1 x HDMI
External connectors1 x DisplayPort
Onboard connectors1 x USB 3.0 header
Onboard connectors3 x USB 2.0/1.1 header
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors3 x M.2
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors2 x 8pin 12V
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x USB C
Onboard connectors1 x Thunderbolt header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Form factormicro ATX
Supported operating systemsWindows 10
Supported operating systemsWindows 11
DesignationCE+WEEE
