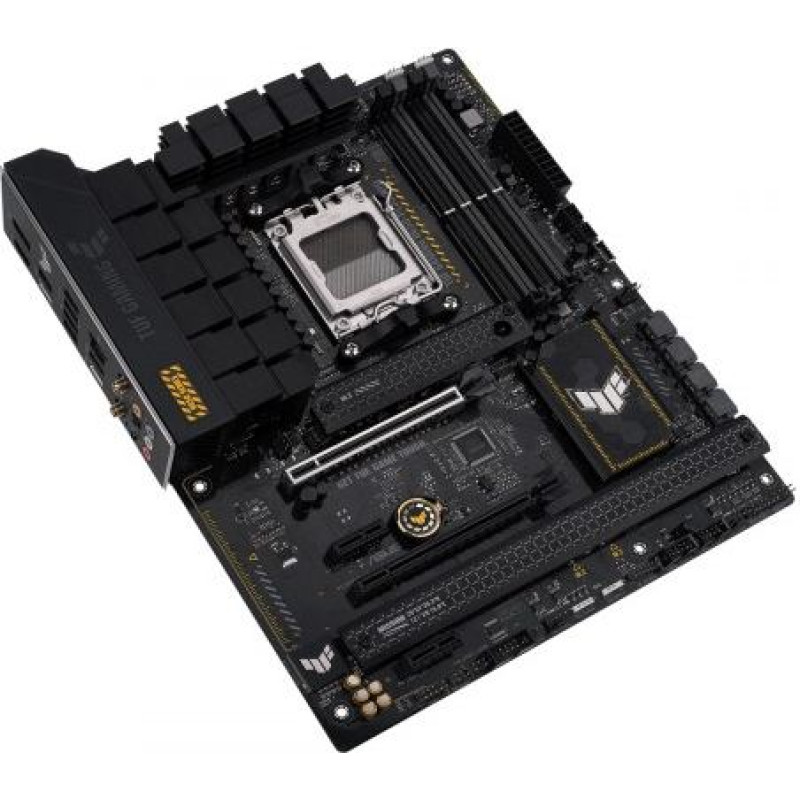

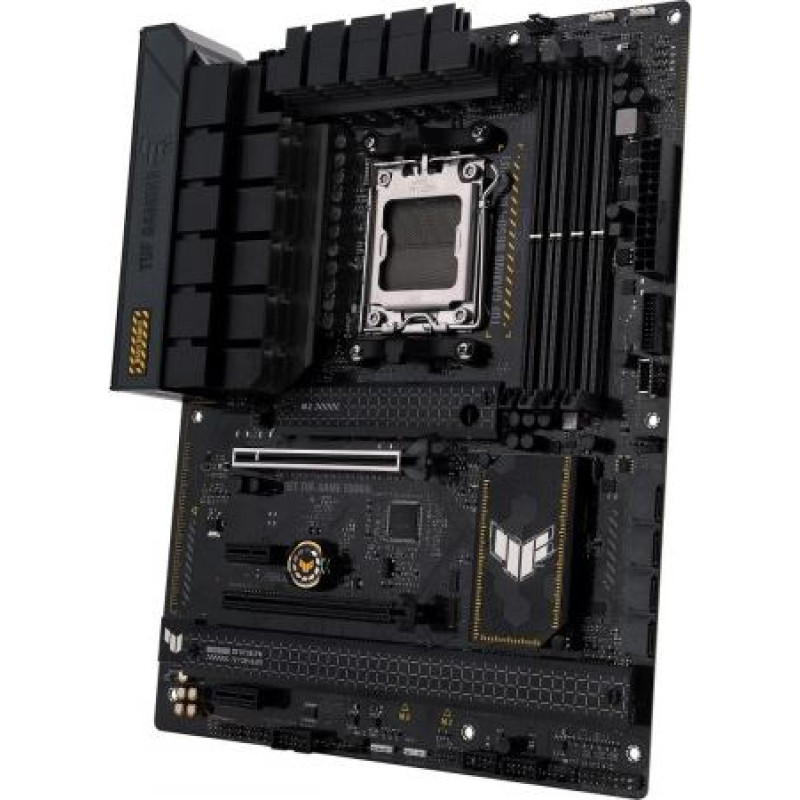

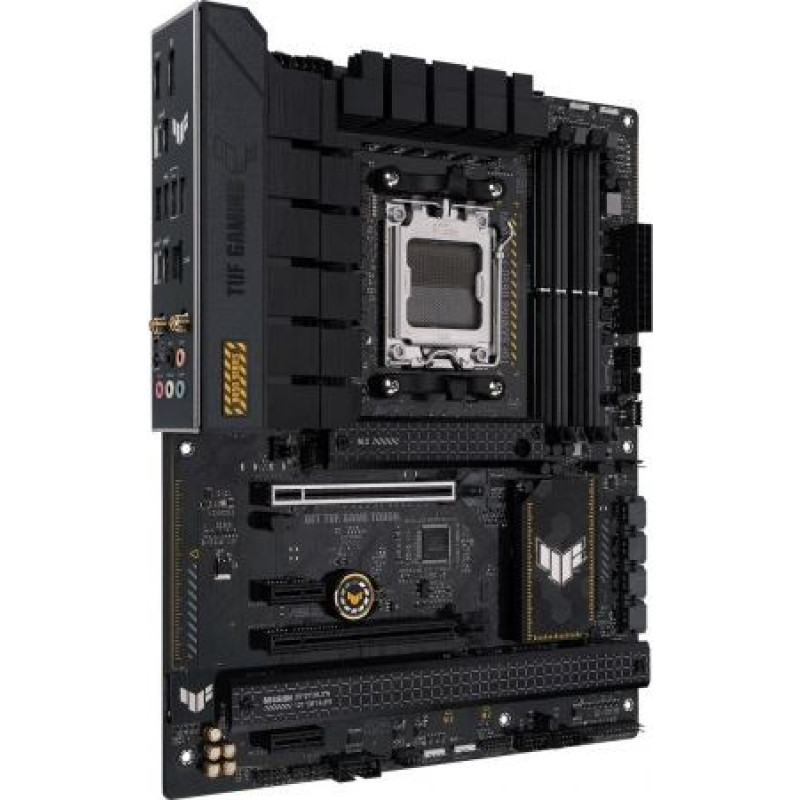

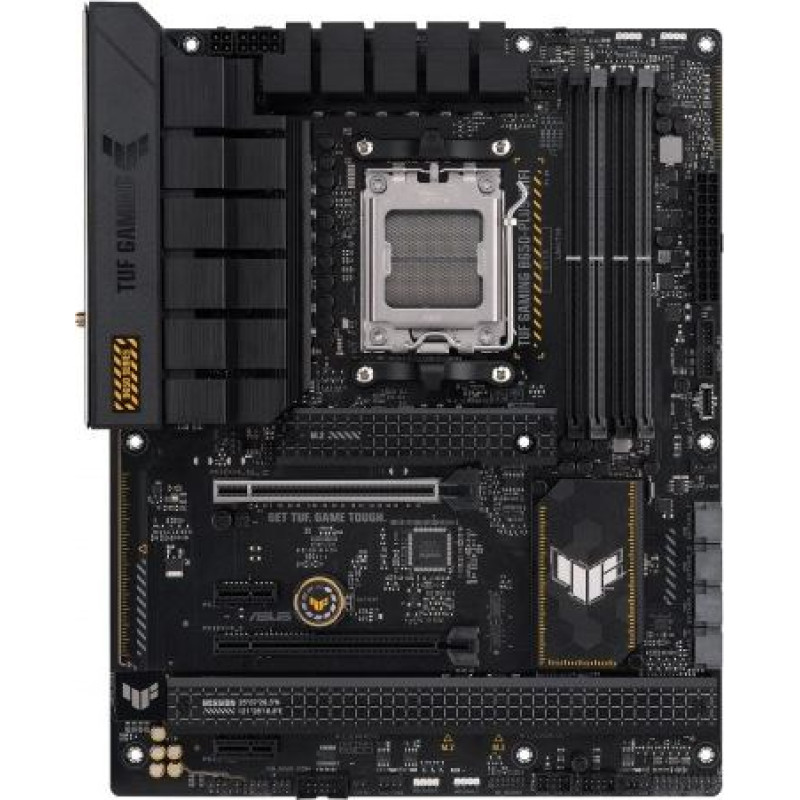

Asus TUF GAMING B650-PLUS WIFI AM5 4DDR5 ATX

Asus TUF GAMING B650-PLUS WIFI AM5 4DDR5 ATX

Delivery to the store takes 3 - 7 business days.
ID: 167881
Product Code: TUF GAMING B650-PLUS WIFI
Barcode 4711081912651
183.15€
(Ex Tax: 147.70€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUAA8B650A02
svītrkods: 4711081912651
Description
SKUKBASUAA8B650A02
Barcode4711081912651
CPU socketSocket AM5
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B650
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency5200 MHz
Memory bus frequency5400 MHz
Memory bus frequency5600 MHz
Memory bus frequency5800 MHz
Memory bus frequency6000 MHz
Memory bus frequency7200 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency6600 MHz
Memory bus frequency6400 MHz
Memory bus frequency6200 MHz
Memory bus frequency5000 MHz
Memory bus frequency7600 MHz
Memory bus frequency4800 MHz
Max memory size128
Expansion slots1 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesSupports 3 M.2 slots and 4 SATA 6Gb/s ports in total AMD Ryzen 7000 Series Desktop Processors M.2_1 (M-Key) Socket Type 2242/2260/2280 (Supports PCIe 5.0 x4 mode) M.2_2 (M-Key) Socket Type 2242/2260/2280/22110 (Supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (M-Key) Socket Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode) M.2_2 (M-Key) Socket Type 2242/2260/2280 (Supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 (M-Key) Socket, Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode)*** 4x SATA 6Gb/s ports *AMD RAIDXpert2 technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU type. ***M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is full.
Graphics1 x DisplayPort port * 1 x HDMI port ** * Supports up to 8K@60Hz as per DisplayPort 1.4 specification. ** Supports 4K@60Hz as per HDMI 2.1 specification. *** VGA resolution support depends on the resolution of the processors or graphics cards.
Sound cardRealtek 7.1 surround high-definition audio codec* Supports: jack detection, multi-stream streaming, front panel jack remapping Supports up to 24-bit/192 kHz playback Audio Features Audio Shielding Power pre-regulator reduces power input noise to ensure consistent performance High-grade audio capacitors Dedicated audio PCB layers Audio Cover Unique de-pop circuit * Due to HDA bandwidth limitations, 32-bit/192 kHz audio is not supported for 7.1 surround sound. ** A chassis with an HD audio module on the front panel is required to support 7.1 surround sound audio output.
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interfaceBluetooth
Network interface1 x Realtek 2.5Gb Ethernet TUF LANGuard
USB ports at back panel8
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports2
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Central Speaker / Subwoofer
External connectors1 x Rear Speaker
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors4 x USB 2.0
External connectors2 x USB 3.0
External connectors2 x SMA
External connectors2 x USB 3.1 Type-C
External connectors1 x Flash BIOS Button
Onboard connectors1 x USB C
Onboard connectors1 x Thunderbolt header
Onboard connectors3 x M.2
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors1 x 4pin 12V power
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Serial port header
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Form factorATX
Dimensions30.5 x 24.4 cm
Supported operating systemsWindows 11
Supported operating systemsWindows 10
DesignationCE+WEEE
