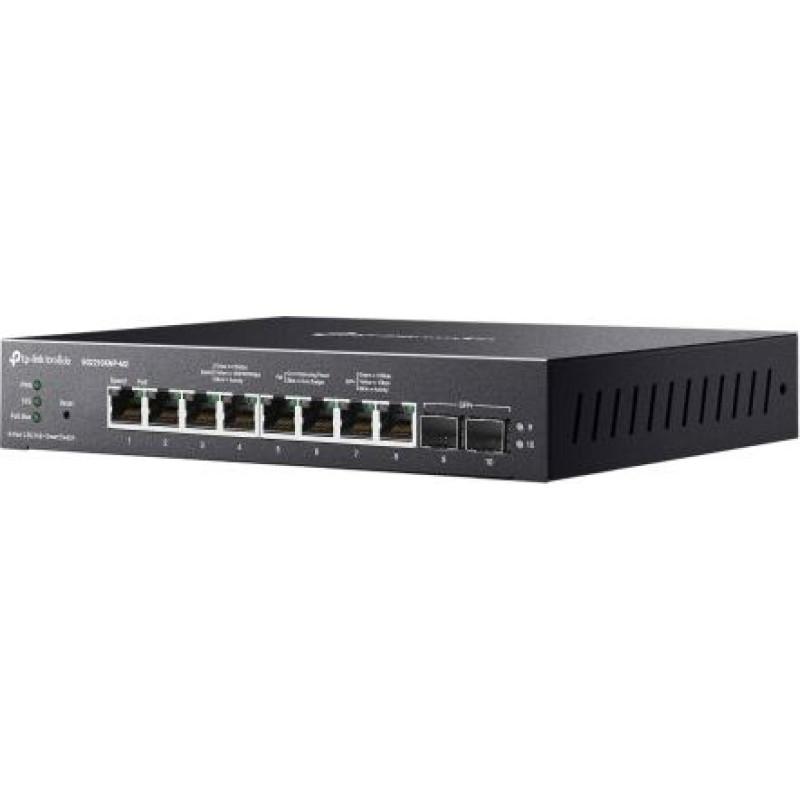

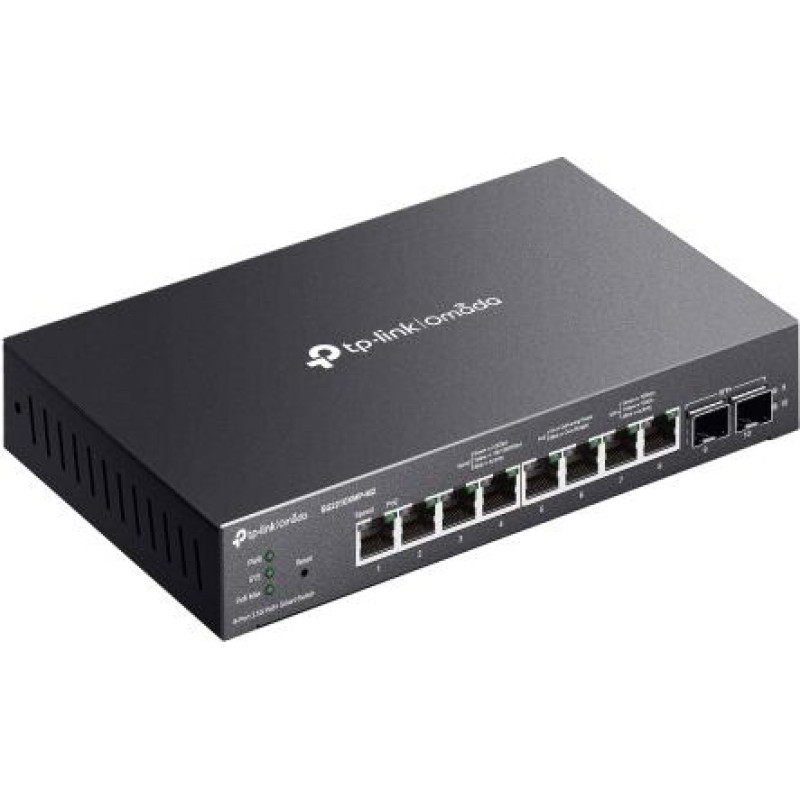

Tp-Link SG2210XMP-M2 sw itch 8x2.5GE PoE+ 2SFP+

Tp-Link SG2210XMP-M2 sw itch 8x2.5GE PoE+ 2SFP+

Delivery to the store takes 3 - 7 business days.
ID: 168052
Product Code: SG2210XMP-M2
Barcode 4895252504774
301.43€
(Ex Tax: 243.09€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: NUTPLSZ8P000005
svītrkods: 4895252504774
Description
SKUNUTPLSZ8P000005
Barcode4895252504774
Switch classSMART
ApplicationHome and small office
Switch layerL2
Switch layerL2+
Network architectureGigabitEthernet
Number of 10/100 Mbps portsNone
Number of 10/100/1000 Mbps portsNone
10/100/1000/2500 Mbps portsNone
Number of 10Gb portsNone
Number of PoE ports (PoE & PoE+)None
Number of PoE+ ports8
Number of PoE++ ports1
Number of COMBO portsNone
Number of SFP portsNone
Number of SFP+ ports2
SFP28 ports1
Number of SFP56 portsNone
Number of QSFP+ portsNone
Console portNo
Forwarding modeStore-and-forward
Throughput80
Forwarding rate59.52
Packet buffer12
MAC address table size16000
Support for Jumbo framesYes
Jumbo frame size9
StackabilityNo
VLANVLAN Groups Maximum 4K VLAN Groups 802.1Q VLAN Tagging MAC VLAN Address: 12 Entries VLAN Protocol GVRP Voice VLAN
QoS802.1p CoS/DSCP Prioritization Support 8 Priority Queues Priority Schedule Mode: SP (Strict Priority) WRR (Weighted Round Robin) Queue Weight Configuration Bandwidth Control Port/Flow-Based Rate Limiting Smoother Operation Storm Control Multiple Control Modes (kbps/rate) Broadcast/Multicast/Unknown-Unicast Transmission Control
SecurityIP-MAC-Port Binding AAA 802.1X Authentication Port-Based Authentication MAC Address (Host)-Based Authentication Available Authentication Methods: PAP/EAP-MD5 MAB Guest VLAN Radius Authentication and Authorization IP/IPv6 and MAC Address Binding 512 Possible Entries DHCP Snooping DHCPv6 Snooping ARP Inspection ND Attack Detection ND Snooping Source IP Protection 253 Possible Entries Source IP + Source MAC Source IPv6 Protection 183 Possible Entries Source IPv6 + Source MAC DoS Protection DHCP Filter Protection of ports by their static/dynamic/fixed configuration Up to 64 MAC addresses per port Storm Control Broadcast/Multicast/Unicast Port Isolation Secure Web Management via HTTPS with SSLv3/TLS 1.2 encryption Secure CLI Management with SSHv1/SSHv2 encryption Access Control based on IP/Port/MAC
L2 features32 IP Interfaces: IPv4/IPv6 Interface Support Static Routing: 32 IPv4/IPv6 Static Routes DHCP Server DHCP Relay DHCP Interface Relay DHCP VLAN Relay DHCP L2 Relay Static ARP Proxy ARP Gratuitous ARP Link Aggregation Spanning Tree Protocol Loopback Detection 802.3x Flow Control Mirroring Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED
Other functionsAdvanced Features: Automatic Device Discovery Batch Configuration Batch Software Update Intelligent Network Monitoring Anomalous Event Alerts Unified Configuration Reboot Scheduler
Chassis typeRack
FanNo
Power supplyExternal
Power consumption71.5
Environment requirementsPermissible operating temperature: 0~40 (32~104); Permissible storage temperature: -40~70 (-40~158); Permissible air humidity: 10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing
CertificatesCE, FCC, RoHS
Accessories includedSG2210XHP-M2 Power Supply Quick Installation Guide Rubber Feet
Power supplyPower supply 53.5V DC / 3.37A
Dimensions226 × 131 × 35 mm
DesignationCE+WEEE
