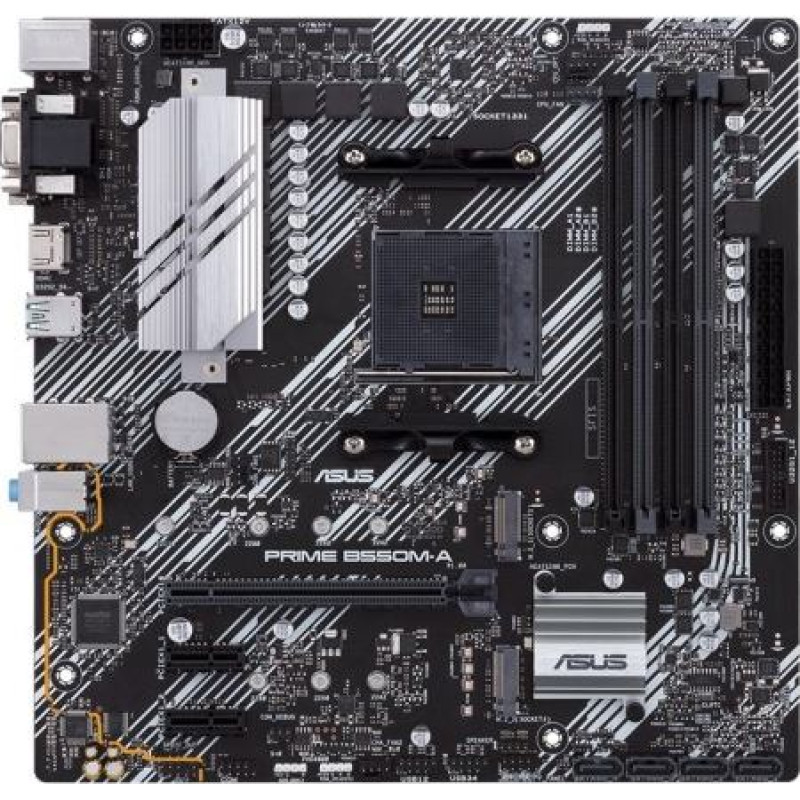

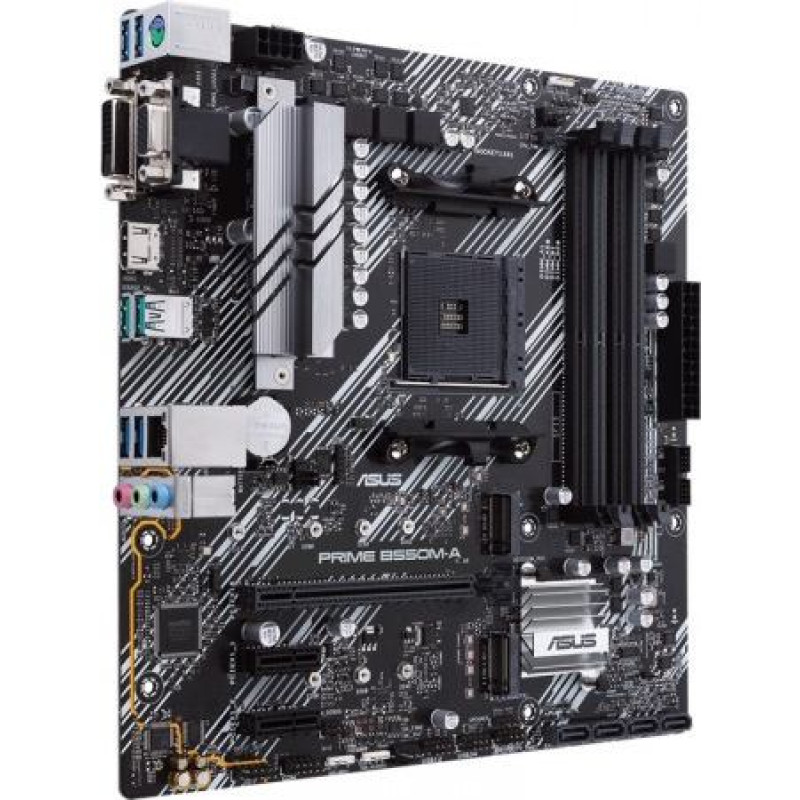

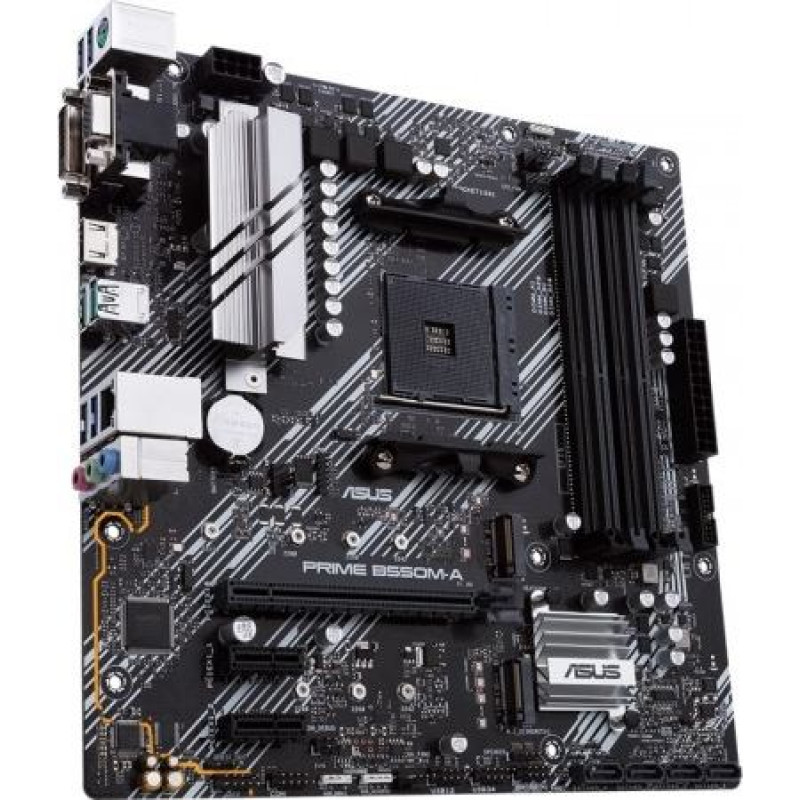

Asus PRIME B550M-A/CSM AM4 4DDR4 HDMI M.2 mATX

Asus PRIME B550M-A/CSM AM4 4DDR4 HDMI M.2 mATX

Delivery to the store takes 3 - 7 business days.
ID: 168230
Product Code: PRIME B550M-A/CSM
Barcode 4718017755535
127.55€
(Ex Tax: 102.86€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUAA7B550U03
svītrkods: 4718017755535
Description
SKUKBASUAA7B550U03
Barcode4718017755535
ModelPrime B550
CPU socketSocket AM4
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B550
Memory typeDDR4
Number of DDR4 slots4
Memory bus frequency4133 MHz
Memory bus frequency4266 MHz
Memory bus frequency4333 MHz
Memory bus frequency4400 MHz
Memory bus frequency4600 MHz
Memory bus frequency4000 MHz
Memory bus frequency3866 MHz
Memory bus frequency3733 MHz
Memory bus frequency3466 MHz
Memory bus frequency3600 MHz
Memory bus frequency3333 MHz
Memory bus frequency3200 MHz
Memory bus frequency3000 MHz
Memory bus frequency2933 MHz
Memory bus frequency2800 MHz
Memory bus frequency2666 MHz
Memory bus frequency4800 MHz
Memory bus frequency2400 MHz
Memory bus frequency4866 MHz
Memory bus frequency2133 MHz
Max memory size128
Expansion slots2 x PCIe 3.0 x 1
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x PCIe 3.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesIn total, it supports 2 M.2 slots and 4 SATA 6 Gb/s ports AMD Ryzen 5000/3000 series desktop processors: 1 x M.2_1 slot 3, M-key, type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) support for storage devices AMD Ryzen 5000 G-Series/ 4000 G-Series Processors: 1 x M.2_1 slot 3, M-key, type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) support for storage devices AMD B550 Chipset: 1 x M.2_2 slot 3, M-key, type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) support for storage devices 4 SATA 6 Gb/s ports Support for Raids 0, 1, 10
Graphics1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ)
Sound cardRealtek ALC887/897 7.1 surround High Definition audio codec Supports: jack detection, multi-streaming, front panel jack reassignment, up to 24-bit/192kHz playback Sound function: LED backlit design Audio shielding Dedicated audio PCB layers High-quality audio capacitors
Network interfaceRealtek RTL8111H 1Gb Ethernet
USB ports at back panel6
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo

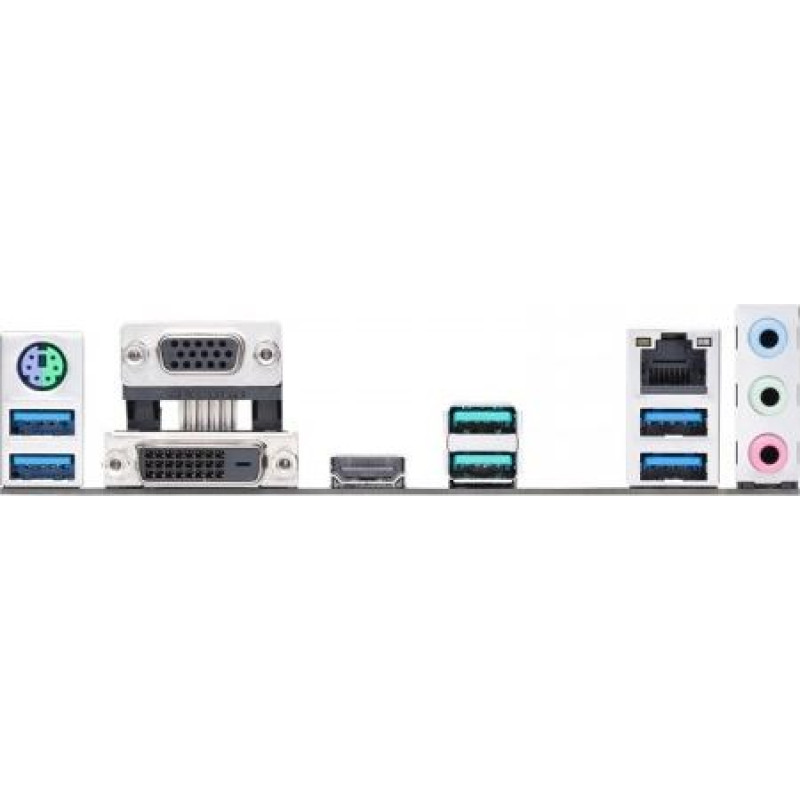

External connectors1 x D-Sub
External connectors4 x USB 3.0
External connectors1 x RJ-45
External connectors1 x MIC
External connectors1 x Line Out
External connectors1 x DVI-D
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors2 x USB 3.1
Onboard connectors1 x S/PDIF Out header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Form factormicro ATX
Dimensions24.4 x 24.4 cm
Accessories included1 x ACC Express Activation Key Card I/O cover 2 SATA 6 Gb/s cables 1 x DVD User manual 1 x M.2 SSD Screw Pack
Supported operating systemsWindows 10
DesignationCE+WEEE
