Home Computers and equipment Computer components Motherboard MSI Motherboard PRO H610M-E s1700 2DDR5 HDMI M.2 mATX
MSI Motherboard PRO H610M-E s1700 2DDR5 HDMI M.2 mATX

MSI

MSI Motherboard PRO H610M-E s1700 2DDR5 HDMI M.2 mATX

Out Of Stock
ID: 168231
Product Code: PRO H610M-E
Barcode 4711377125147
61.03€
(Ex Tax: 49.22€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIIIEH610U03
svītrkods: 4711377125147
Description
SKUKBMSIIIEH610U03
Barcode4711377125147
ModelPRO H610M-E
CPU socketLGA1700
Processor familyIntel Celeron
Processor familyIntel Core i3
Processor familyIntel Core i5
Processor familyIntel Core i7
Processor familyIntel Pentium Gold
Processor familyIntel Core i9
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel H610
Memory typeDDR5
Number of DDR5 slots2
Memory bus frequency5600 MHz
Max memory size96
Expansion slots1 x PCIe 3.0 x 1
Expansion slots1 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDNo
Detailed data on disk/drive interfaces1 x M.2 - M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G
Graphics1 x HDMI - Supports HDMI 1.4 with HDR, maximum resolution 4K 30 Hz 1 x VGA
Sound cardRealtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface1 x 10/100/1000 Mbit/s
Network interfaceRealtek RTL8111H Gigabit LAN
USB ports at back panel6
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo

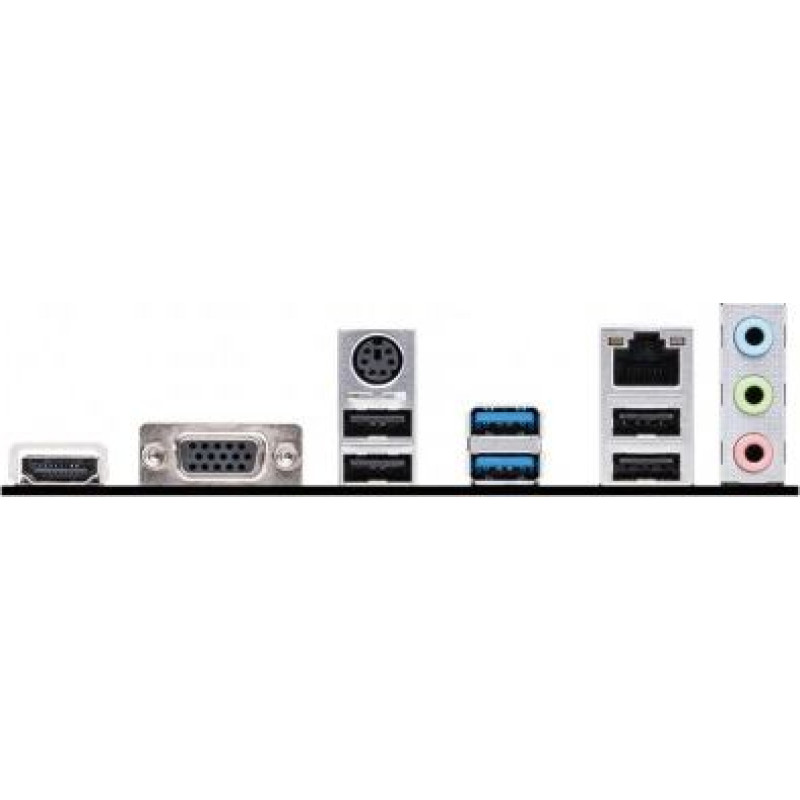

External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x D-Sub
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors4 x USB 2.0
External connectors2 x USB 3.0
Onboard connectors1 x Front panel audio header
Onboard connectors1 x TPM header
Onboard connectors2 x System panel header
Onboard connectors1 x 4pin CPU fan
Onboard connectors2 x 4pin Chassis fan
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors4 x USB 2.0/1.1
Onboard connectors2 x USB 3.0 header
Onboard connectors1 x Serial port header
Onboard connectors4 x EZ Debug LED
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x RGB LED strip header
Form factormicro ATX
Dimensions200 x 236.16 mm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
DesignationCE+WEEE
