Gigabyte B650M S2H AM5 2DDR5 HDMI/DP M2 m.ATX

GIGABYTE

Gigabyte B650M S2H AM5 2DDR5 HDMI/DP M2 m.ATX

Delivery to the store takes 3 - 7 business days.
ID: 168669
Product Code: B650M S2H
Barcode 4719331856298
93.81€
(Ex Tax: 75.65€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA8B650U04
svītrkods: 4719331856298
Description
SKUKBGBAAA8B650U04
Barcode4719331856298
ModelB650M S2H
CPU socketSocket AM5
Processor familyAMD Ryzen 9
Processor familyAMD Ryzen 5
Processor familyAMD Ryzen 7
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B650
Memory typeDDR5
Number of DDR5 slots2
Memory bus frequency5600 MHz
Memory bus frequency5200 MHz
Memory bus frequency4400 MHz
Memory bus frequency4800 MHz
Memory bus frequency6200 MHz
Memory bus frequency6000 MHz
Memory bus frequency6400 MHz
Max memory size96
Expansion slots1 x PCIe 3.0 x 1
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesPROCESSOR: 1 x M.2 connector (Socket 3, M key, supports 2580 PCIe 4.0 x4/x2 SSDs) Chipset: 4 SATA 6 Gb/s connectors RAID 0, RAID 1 and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1 and RAID 10 support for SATA storage devices
GraphicsIntegrated graphics processor: 1 x D-Sub port supporting a maximum resolution of 1920x1200@60 Hz 1 x DisplayPort supporting a maximum resolution of 3840x2160 at 144 Hz * Support for DisplayPort version 1.4. 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz * Support HDMI 2.1 and HDCP 2.3 versions. ** Support for native HDMI 2.1 TMDS compliant ports. (Graphics specifications may vary depending on processor support.) Support for up to 3 displays simultaneously
Sound cardRealtek audio CODEC High quality sound 2/4/5.1/7.1-channel * You can change the functionality of the audio jack using audio software. To configure 7.1 channel audio, go to your audio software for audio settings.
Network interface1 x 10/100/1000 Mbit/s
Network interfaceRealtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB ports at back panel6
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

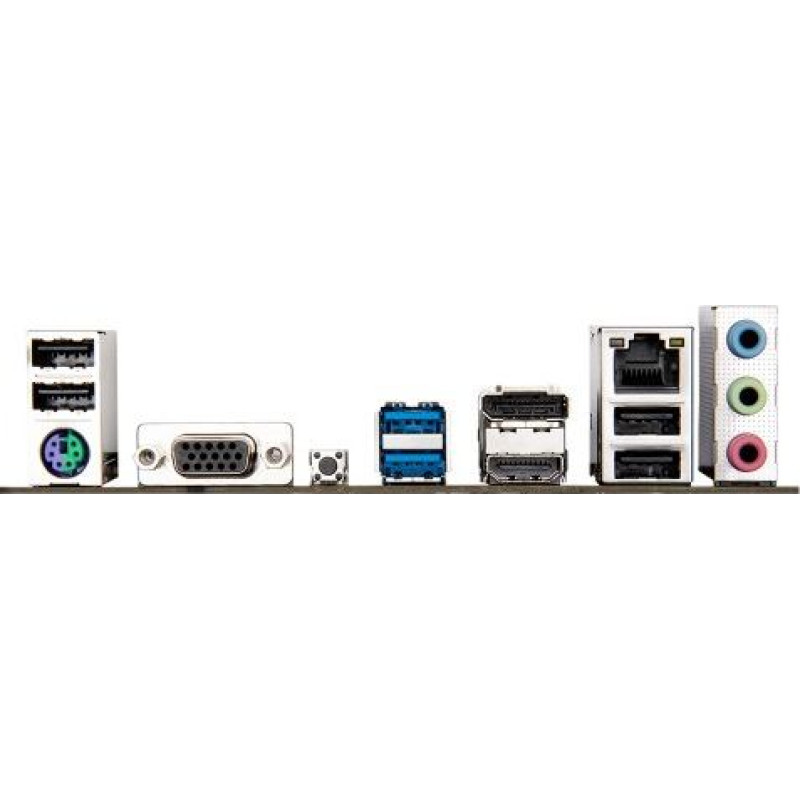

External connectors1 x MIC
External connectors1 x RJ-45
External connectors4 x USB 2.0
External connectors2 x USB 3.0
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x D-Sub
External connectors1 x Q-Flash Plus button
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors2 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x M.2
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factormicro ATX
Dimensions23 x 22.5 cm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareNorton Internet Security (OEM version) LAN Bandwidth Management Software
Other informationGIGABYTE Control Center (GCC) Support * Available applications in GCC may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications. Q-Flash support Support for Q-Flash Plus
DesignationCE+WEEE
