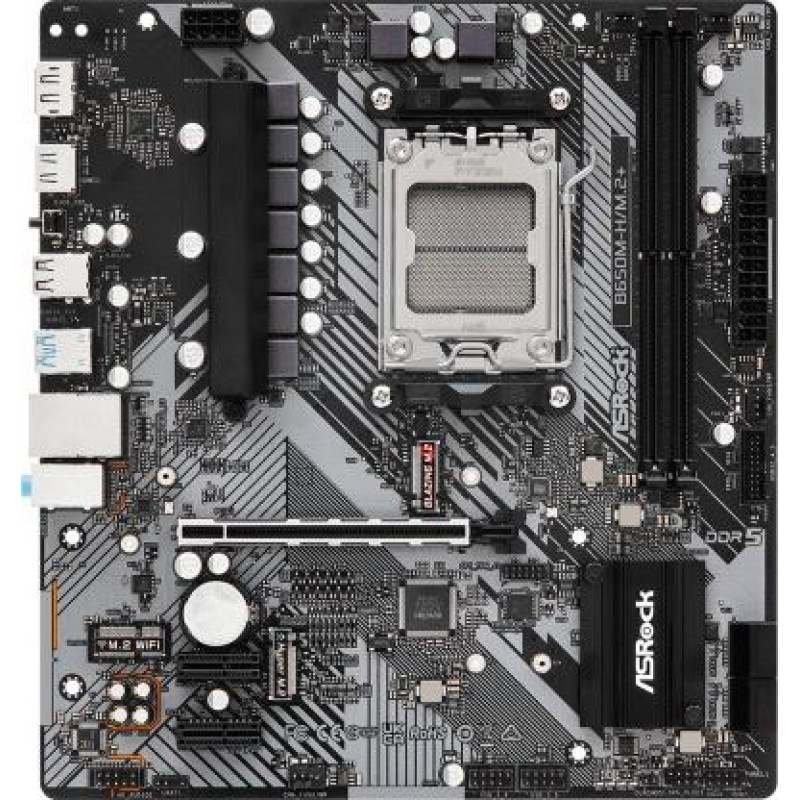

Asrock B650M-H/M.2 + AM5 2DDR5 HDMI/DP mATX

Asrock B650M-H/M.2 + AM5 2DDR5 HDMI/DP mATX

Delivery to the store takes 3 - 7 business days.
ID: 168670
Product Code: B650M-H/M.2+
Barcode 4710483943768
83.53€
(Ex Tax: 67.36€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASRAA8B650U03
svītrkods: 4710483943768
Description
SKUKBASRAA8B650U03
Barcode4710483943768
ModelB650M-H/M.2+
CPU socketSocket AM5
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 5
Processor familyAMD Ryzen 9
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B650
Memory typeDDR5
Number of DDR5 slots2
Memory bus frequency6400 MHz
Max memory size96
Expansion slots1 x M.2
Expansion slots1 x PCIe 4.0 x 16
Expansion slots2 x PCIe 4.0 x 1
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesPROCESSOR: 1 x Blazing M.2 slot (M2_1, M key), supports 2280 PCIe Gen5x4 mode (128Gb/s)* 1 x Hyper M.2 slot (M2_2, M key), supports 2260/2280 PCIe Gen4x4 mode (64Gb/s)* Chipset: 4 SATA3 6.0 Gb/s connectors Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
GraphicsIntegrated AMD RDNA 2 graphics (Actual support may vary by processor) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120 Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120 Hz
Sound card7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interface1 x 10/100/1000 Mbit/s
Network interfaceGigabit LAN 10/100/1000 Mb/s Realtek RTL8111H
USB ports at back panel6
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x USB BIOS Flashback button
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors2 x USB 2.0
External connectors3 x USB 3.0
External connectors2 x SMA
External connectors1 x USB 3.1 Type-C
Onboard connectors1 x 4pin CPU fan
Onboard connectors3 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x TPM header
Onboard connectors1 x Front panel audio header
BIOS256Mb AMI UEFI Legal BIOS with GUI support
Form factorATX
Dimensions24.4 x 22.6 cm
Accessories includedUser manual I/O cover 2 x SATA data cables 3 x M.2 screws
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareSoftware ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI ASRock Full HD UEFI ASRock automatic driver installer ASRock Instant Flash
Other informationCertificates FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
DesignationCE+WEEE
