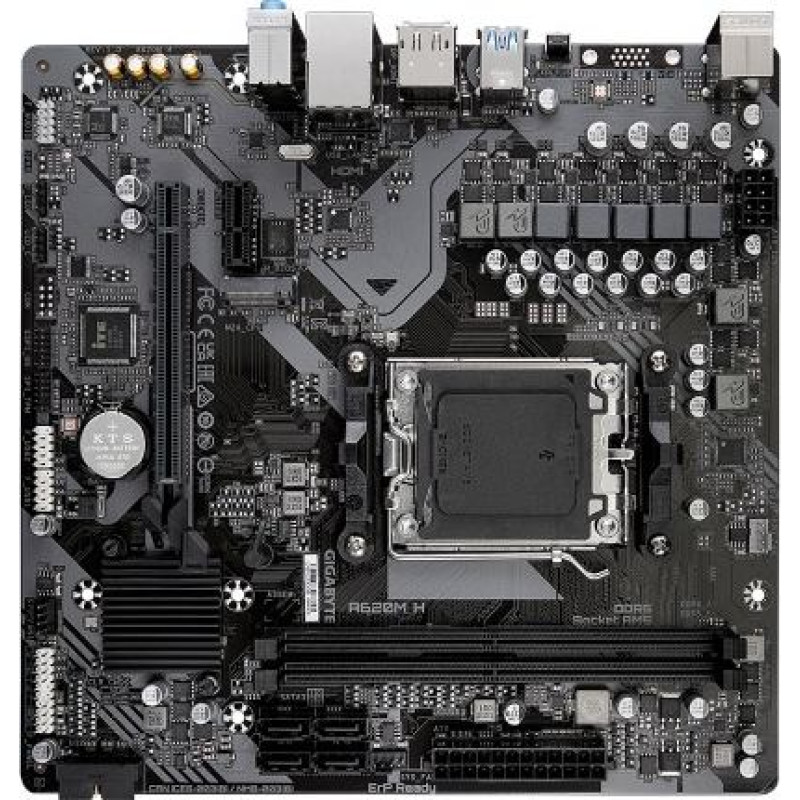

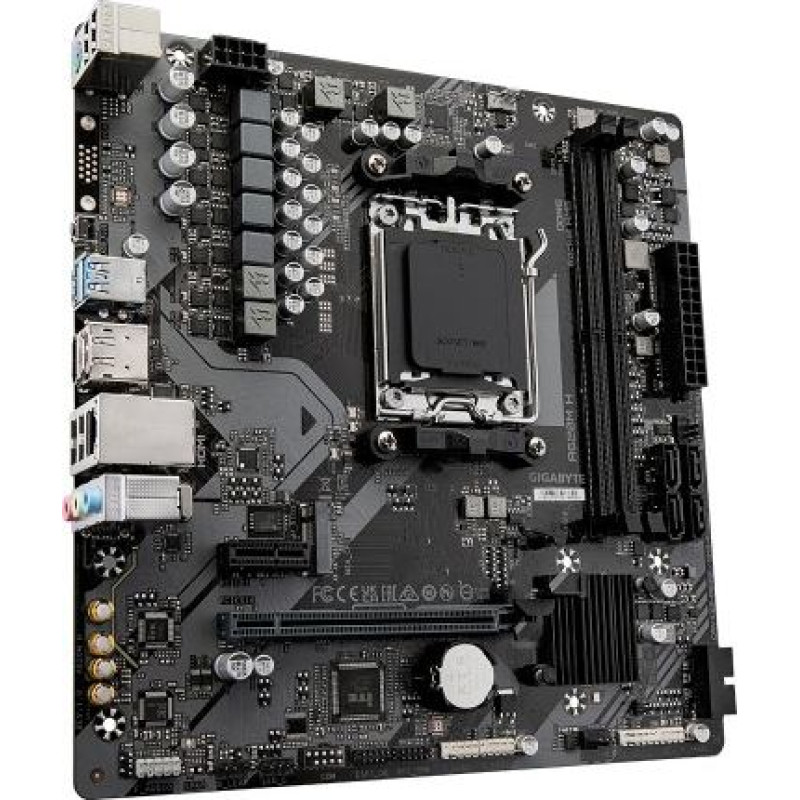

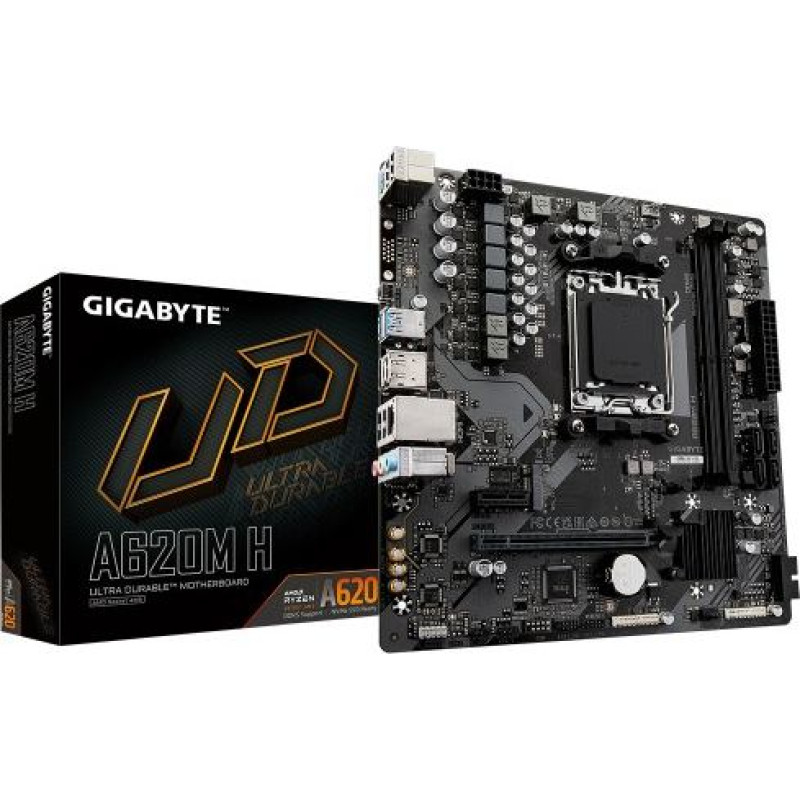

Gigabyte A620M H AM5 2DDR5 HDMI/DP M.2 mATX

GIGABYTE

Gigabyte A620M H AM5 2DDR5 HDMI/DP M.2 mATX

Delivery to the store takes 3 - 7 business days.
ID: 168674
Product Code: A620M H 2.0
Barcode 4719331855512
77.24€
(Ex Tax: 62.29€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA8A620U05
svītrkods: 4719331855512
Description
SKUKBGBAAA8A620U05
Barcode4719331855512
ModelA620M H
CPU socketSocket AM5
Processor familyAMD Ryzen 5
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 9
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD A620
Memory typeDDR5
Number of DDR5 slots2
Memory bus frequency4800 MHz
Memory bus frequency5200 MHz
Memory bus frequency6000 MHz
Memory bus frequency5600 MHz
Memory bus frequency6200 MHz
Memory bus frequency133 MHz
Memory bus frequency4400 MHz
Memory bus frequency6400 MHz
Max memory size96
Expansion slots1 x PCIe 3.0 x 1
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics1 x DisplayPort, supporting a maximum resolution of 3840 x 2160 at 144 Hz * Support for DisplayPort version 1.4. 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support for HDMI 2.1 and HDCP 2.3 versions. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on processor support.) Support for up to 3 displays simultaneously
Sound cardRealtek audio codec High quality sound 2/4/5.1/7.1-channel * Audio jack functionality can be changed via audio software. To configure 7.1 channel audio, go to your audio software to set up the sound.
Network interface1 x 10/100/1000 Mbit/s
Network interfaceRealtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB ports at back panel6
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

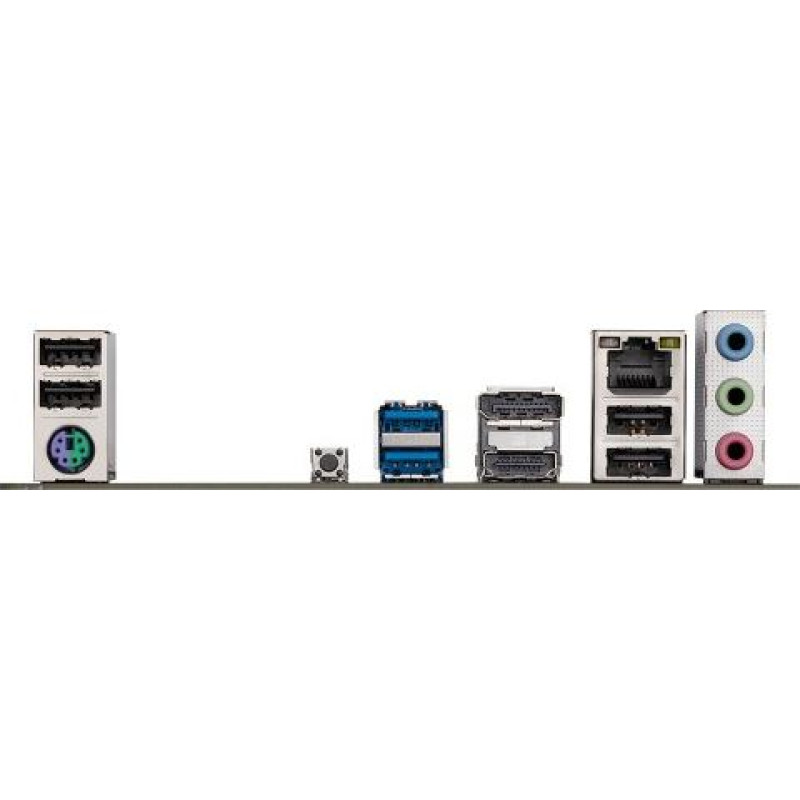

External connectors1 x DisplayPort
External connectors1 x Line Out
External connectors1 x MIC
External connectors4 x USB 2.0
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x RJ-45
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x Q-Flash Plus button
External connectors2 x USB 3.0
Onboard connectors1 x TPM header
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x 4pin CPU fan
Onboard connectors2 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x System panel header
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factormicro ATX
Dimensions23 x 22.5cm
Supported operating systemsWindows 11
Supported operating systemsWindows 10
SoftwareNorton Internet Security (OEM version) LAN Bandwidth Management Software
Other informationVoltage detection Temperature detection Fan speed detection Cooling water flow rate detection Fan failure warning * Whether fan speed control is supported depends on the installed fan.
DesignationCE+WEEE
