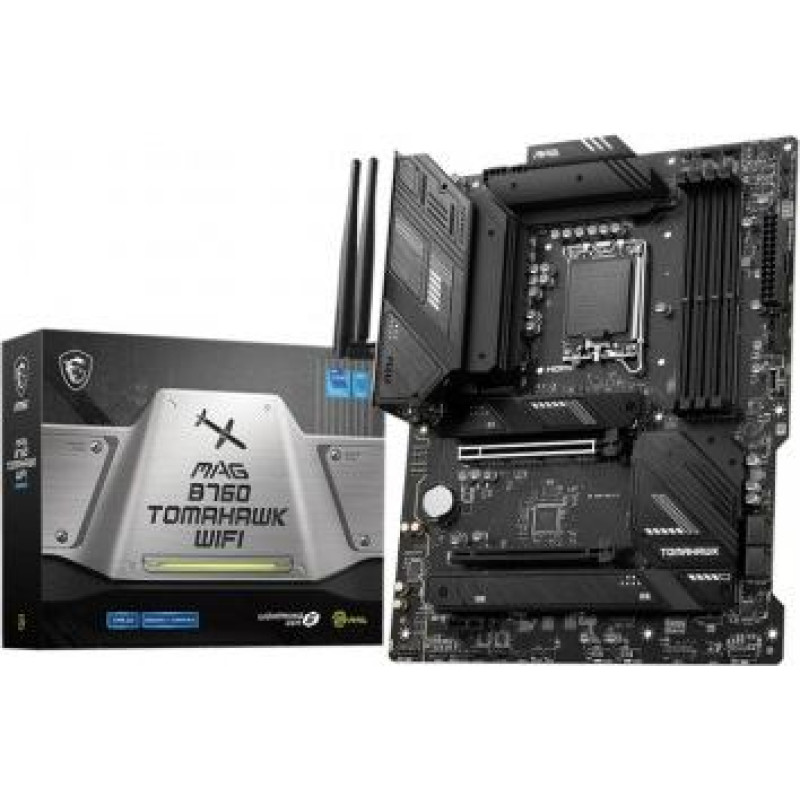

MSI Motherboard MAG B760 TOMAHAWK WIFI s1700 4DDR4 DP/HDMI ATX

MSI

MSI Motherboard MAG B760 TOMAHAWK WIFI s1700 4DDR4 DP/HDMI ATX

Delivery to the store takes 3 - 7 business days.
ID: 168679
Product Code: MAG B760 TOMAHAWK WIFI
Barcode 4711377034210
168.09€
(Ex Tax: 135.56€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIIIEB760A03
svītrkods: 4711377034210
Description
SKUKBMSIIIEB760A03
Barcode4711377034210
ModelMAG B760 TOMAHAWK WIFI
CPU socketLGA1700
Processor familyIntel Celeron
Processor familyIntel Core
Processor familyIntel Pentium Gold
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B760
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency6000 MHz
Memory bus frequency5800 MHz
Memory bus frequency5200 MHz
Memory bus frequency5400 MHz
Memory bus frequency5600 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency6600 MHz
Memory bus frequency5000 MHz
Memory bus frequency4800 MHz
Max memory size192
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCI
Expansion slots1 x PCIe x 1
Expansion slots2 x PCIe x 16
Expansion slots2 x PCIe 3.0 x 4
Expansion slots3 x PCIe 4.0 x 1
Expansion slots3 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces3x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G
Graphics1x HDMI HDMITM 2.1 support with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort DP 1.4 support, maximum resolution of 8K 60Hz*. *Only available for processors with integrated graphics. Graphics specifications may vary depending on the processor installed.
Sound cardRealtek ALC897 codec 7.1 channel high performance USB audio Supports S/PDIF output
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceRealtek 2.5 Gbps LAN WIRELESS / BLUETOOTH Intel Wi-Fi 6E Wireless module is pre-installed in M.2 slot (Key-E). Supports MU-MIMO TX/RX, 2.4 GHz / 5 GHz / 6 GHz* (160 MHz) up to 2.4 Gbps Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth 5.3, FIPS, FISMA * 6E 6GHz Wi-Fi may depend on regulations in each country and will be ready on Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
USB ports at back panel9
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports2
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports6
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors4 x USB 3.1
External connectors4 x USB 2.0
External connectors1 x Side Speaker
External connectors1 x Rear Speaker
External connectors1 x RJ-45
External connectors1 x S/PDIF
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x USB 3.1 Type-C
Onboard connectors1 x Front panel audio header
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors4 x USB 2.0/1.1
Onboard connectors2 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x TPM header
Onboard connectors2 x System panel header
Onboard connectors2 x RGB LED Strip
Onboard connectors2 x 4pin wentylator CPU
Form factorATX
Dimensions243.84 x 304.8 mm
Accessories includedQuick Installation Guide SATA cable EZ M.2 clip Cable stickers WiFi antenna European Union regulatory notice
Supported operating systemsWindows 11
DesignationCE+WEEE
