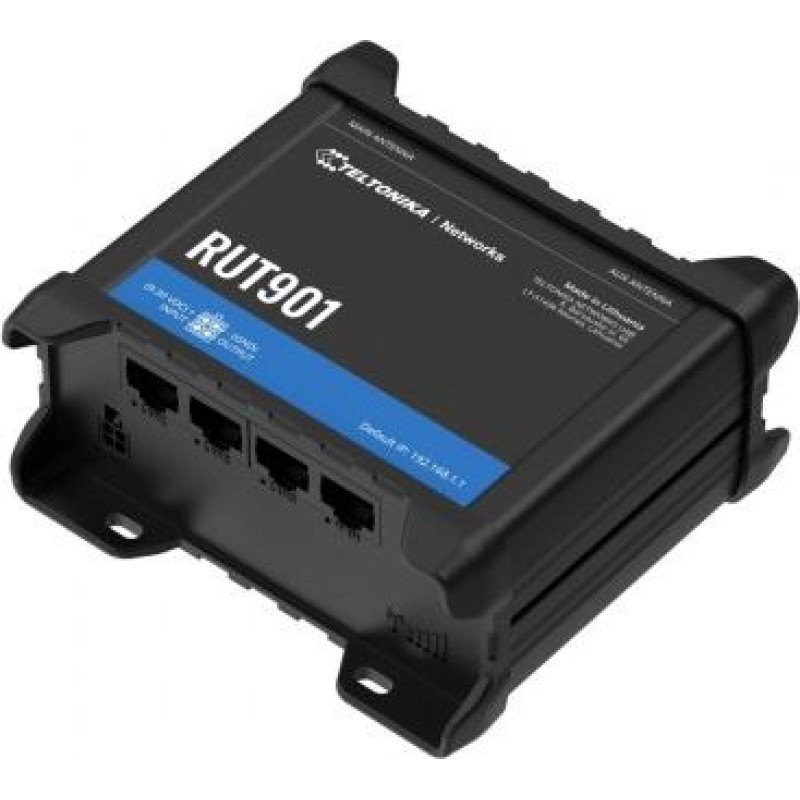

| SKU | KMTETLRUT901000 | | Barcode | 4779051840823 | | Model | RUT901 | | Type | GSM 3G/4G | | Data transmission | LTE | | Data transmission | UMTS | | Data transmission | GPRS | | GSM network | 1900 MHz | | GSM network | 900 MHz | | UMTS network | 2100 MHz | | UMTS network | 900 MHz | | UMTS network | 850 MHz | | LTE network | 2600 MHz | | LTE network | 700 MHz | | LTE network | 800 MHz | | LTE network | 850 MHz | | LTE network | 900 MHz | | LTE network | 1800 MHz | | LTE network | 2100 MHz | | LTE network | 2300 MHz | | LTE network | 2500 MHz | | Aero2 support | No | | Standards | 802.11e | | Standards | 802.11n | | Standards | 802.11b | | Standards | 802.3u | | Standards | 802.11g | | Standards | 802.3 | | Number of antennas | Four connectors | | Antenna | Detachable external | | Security | Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag-based VLAN separation Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter Wi-Fi security: WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP, WPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE; Mixed Mode, WPA3-SAE, OWE; AES-CCMP, TKIP, Auto Cipher modes, client separation | | Management, monitoring, configuration | Mobile functions: SIM switch, Status, SMS, Black/White list, Band management, APN, Bridge, Passthrough Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP) VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard Management and monitoring: WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Cloud: RMS, Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customizable landing page SMS functions: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP | | Card reader | None | | I/O ports | 2 x SIM card slot | | I/O ports | 1 x 10/100 Mbit/s WAN | | I/O ports | 3 x 10/100 Mbit/s | | SIM card | Mini | | Power supply | 4-pin socket, 9-30 VDC | | Software | RutOS (OpenWrt based Linux OS) | | Environment requirements | Operating Temperature: -40°C to 75°C Operating Humidity: 10% to 90% non-condensing | | Accessories included | RUT901 router 9W power supply 2 x LTE antenna (rotatable, SMA male) 2 x Wi-Fi antenna (rotatable, RP-SMA male) Ethernet cable (1.5 m) SIM adapter kit QSG (Quick Start Guide) | | Color | Black | | Weight | 297 | | Dimensions | 110 x 50 x 100 mm | | Designation | CE+WEEE |
|
