| SKU | KMCUDRGSM000011 |
| Barcode | 6971690792848 |
| Model | LT500 Outdoor |
| Type | GSM 3G/4G |
| Data transmission | UMTS |
| Data transmission | LTE |
| Data transmission | EDGE |
| GSM network | 1900 MHz |
| GSM network | 900 MHz |
| UMTS network | 2100 MHz |
| UMTS network | 850 MHz |
| UMTS network | 900 MHz |
| LTE network | 700 MHz |
| LTE network | 800 MHz |
| LTE network | 2600 MHz |
| LTE network | 2300 MHz |
| LTE network | 2500 MHz |
| LTE network | 850 MHz |
| LTE network | 900 MHz |
| LTE network | 1800 MHz |
| LTE network | 2100 MHz |
| Aero2 support | No |
| Standards | 802.11a |
| Standards | 802.11n |
| Standards | 802.11ac |
| Standards | IPv4 |
| Standards | IPv6 |
| Standards | 802.11g |
| Standards | 802.11b |
| Operating frequency | 2,4 GHz |
| Operating frequency | 5 GHz |
| Number of antennas | 4 |
| Antenna | Built-in |
| Antenna | Detachable external |
| Security | WEP WPA/WPA2 WPA-PSK/WPA2-PSK |
| Management, monitoring, configuration | WAN Type: 4G/Dynamic IP/Static IP/PPPoE DHCP: server, DHCP client list, address reservation Dynamic DNS: Compatible with 15 other DDNS providers NAT: port forwarding, port triggering, UPnP, DMZ VPN server and client: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier CWMP protocol: TR069 / TR098 / TR111 / TR181 Compatible with ACS server: GenieACS, OpenACS Management: Access Control, Local Management, Remote Management, Wake on LAN TTL: Extend/Spoof/Custom DNS: Cloudare/Google/Custom Internet protocols: IPv4 / IPv6 IPv6: Relay; Dynamic (SLAAC/DHCPv6); Static (permanent IP address); Go through; MAP-E (dual stack); DS-Lite (Dual Stack) SMS: send/receive Blocking the 4G band |
| Card reader | None |
| I/O ports | 1 x SIM card slot |
| I/O ports | 1 x 10/100 Mbit/s LAN / WAN (Combo) |
| SIM card | Nano |
| Power supply | Passive PoE adapter 24V/0.5A |
| Supported operating systems | Windows 11 |
| Supported operating systems | Linux |
| Supported operating systems | Windows 10 |
| Supported operating systems | Mac OS |
| Supported operating systems | Windows 98 SE |
| Supported operating systems | Windows NT |
| Supported operating systems | Windows 2000 |
| Supported operating systems | Windows XP |
| Supported operating systems | Windows Vista |
| Supported operating systems | Windows 7 |
| Supported operating systems | Windows 8 |
| Supported operating systems | Windows 8.1 |
| Supported operating systems | Novell NetWare |
| Supported operating systems | Unix |
| System Requirements | Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser |
| Environment requirements | Operating temperature: -20°C to 60°C Storage temperature: -40°C to 70°C |

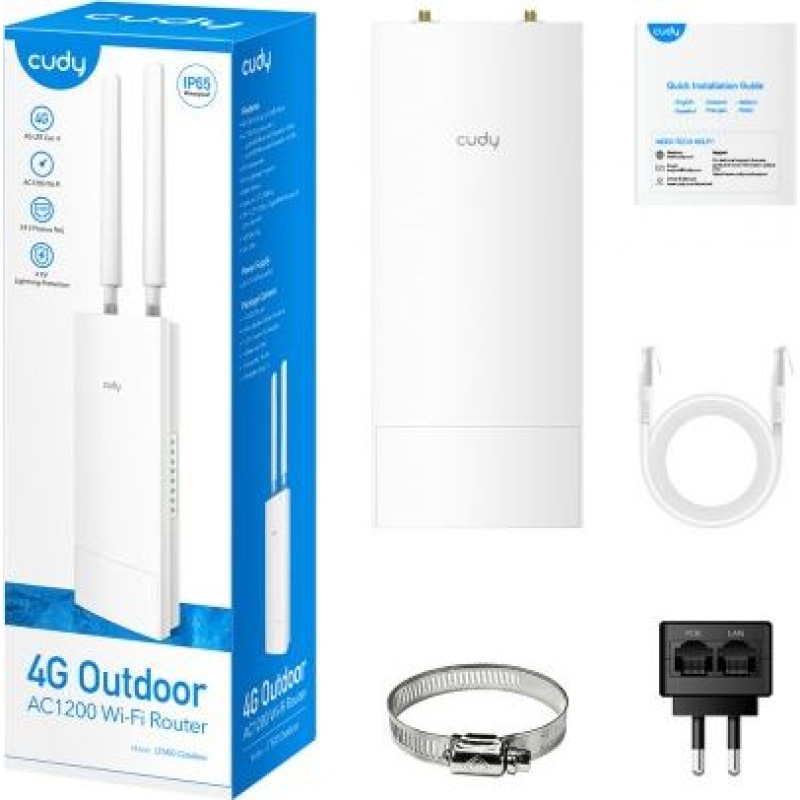

| Accessories included | 2 x detachable 4G antenna Passive PoE adapter 24V/0.5A Pole mount accessory Ethernet cable Quick Installation Guide |
| Color | White |
| Dimensions | Router body: 240 x 100 x 53.7 mm 4G antennas: 197.5 x 21.6 x 15.5mm |
| Designation | CE+WEEE |
| Data Act | Link |
