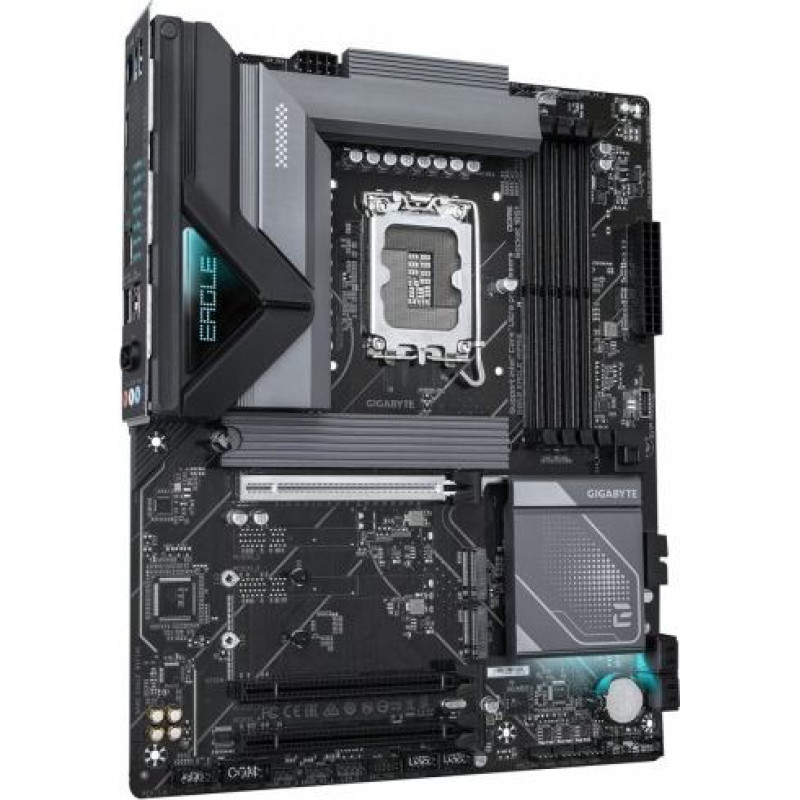

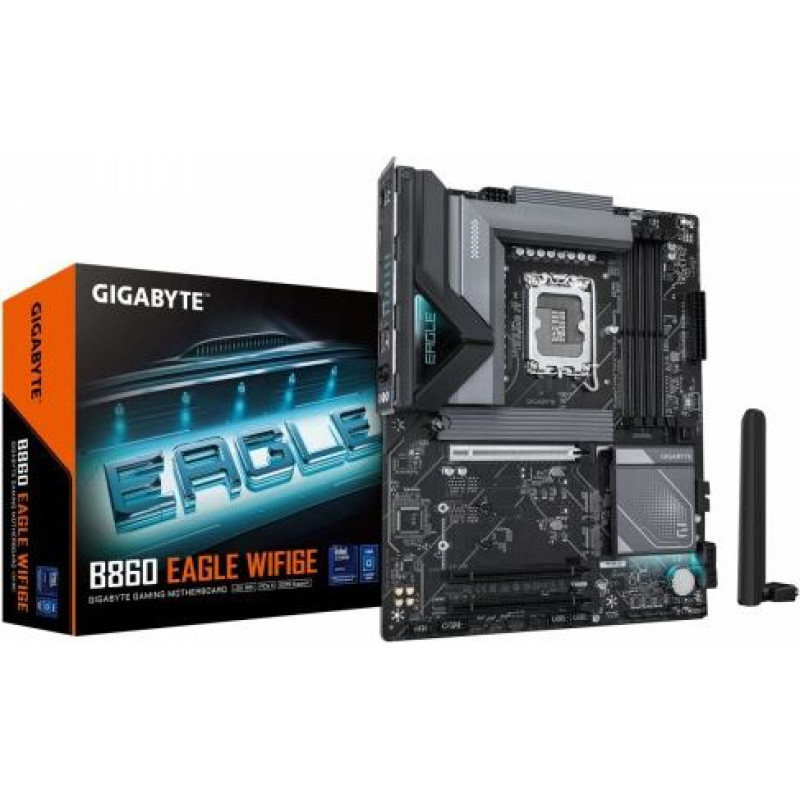

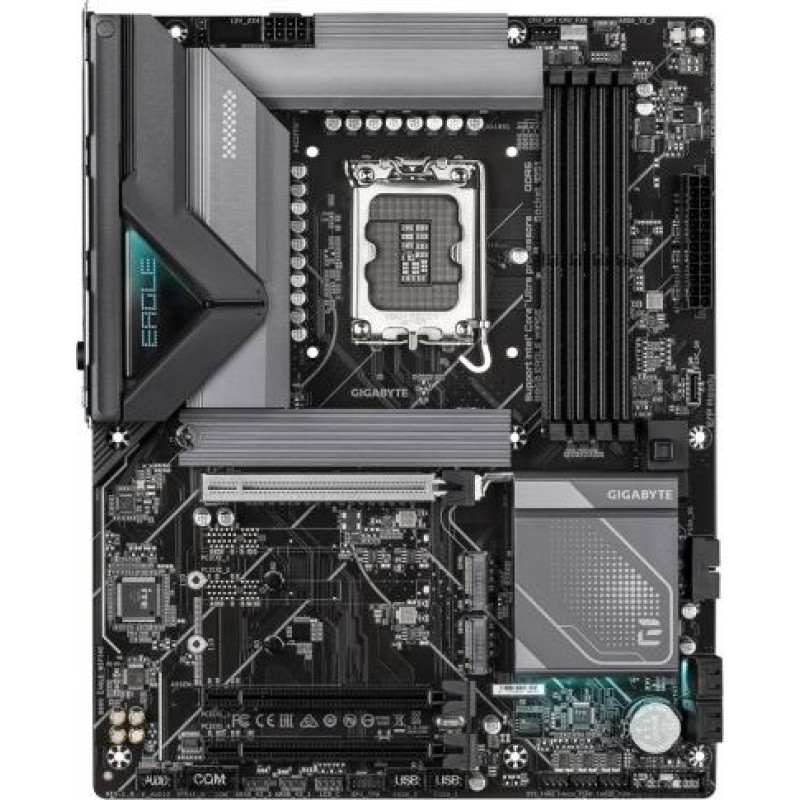

Gigabyte B860 EAGLE WIFI6E

GIGABYTE

Gigabyte B860 EAGLE WIFI6E

Delivery to the store takes 3 - 7 business days.
ID: 170508
Product Code: B860 EAGLE WIFI6E
Barcode 4719331866822
167.76€
(Ex Tax: 135.29€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIFB860A02
svītrkods: 4719331866822
Description
SKUKBGBAIIFB860A02
Barcode4719331866822
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B860 Express Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8400 MHz
Memory bus frequency8266 MHz
Memory bus frequency8200 MHz
Memory bus frequency8000 MHz
Memory bus frequency6400 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency7200 MHz
Memory bus frequency7400 MHz
Memory bus frequency7600 MHz
Memory bus frequency7800 MHz
Memory bus frequency7900 MHz
Memory bus frequency7950 MHz
Memory bus frequency5600 MHz
Memory bus frequency8600 MHz
Memory bus frequency8800 MHz
Max memory size256
Expansion slots2 x PCIe 4.0 x 1
Expansion slots1 x PCIe 5.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU: 1 x M.2 connector (Socket 3, M-key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M-key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M-key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB) 4 x SATA 6 Gb/s connectors Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
GraphicsIntegrated graphics processor, Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz, supporting HDMI 2.1 and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 3840x2160 @ 144 Hz, supporting DisplayPort 2.1.
Sound cardRealtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel6
USB ports on motherboard2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports2
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports1
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

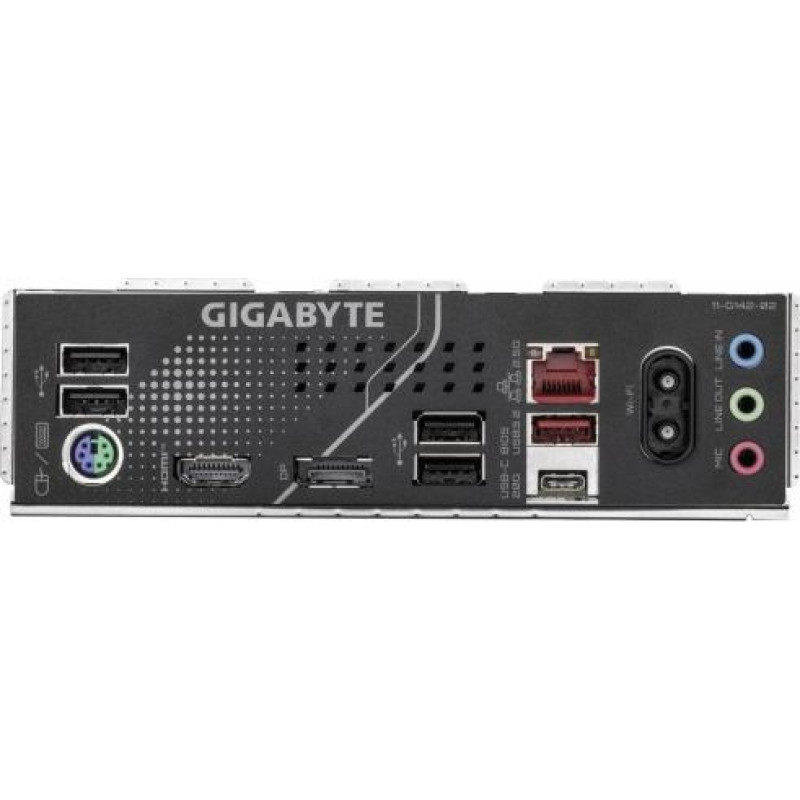

External connectors1 x USB 3.1 Type-C
External connectors1 x USB 3.1
External connectors4 x USB 2.0
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors2 x SMA
Onboard connectors1 x Q-Flash Plus button
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x S/PDIF Out header
Onboard connectors1 x Clear CMOS jumper
BIOS1 x 256 Mbit flash Using a licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factorATX
Dimensions30.5 x 24.4 cm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareNorton Internet Security (OEM version) LAN Bandwidth Management Software
DesignationCE+WEEE
