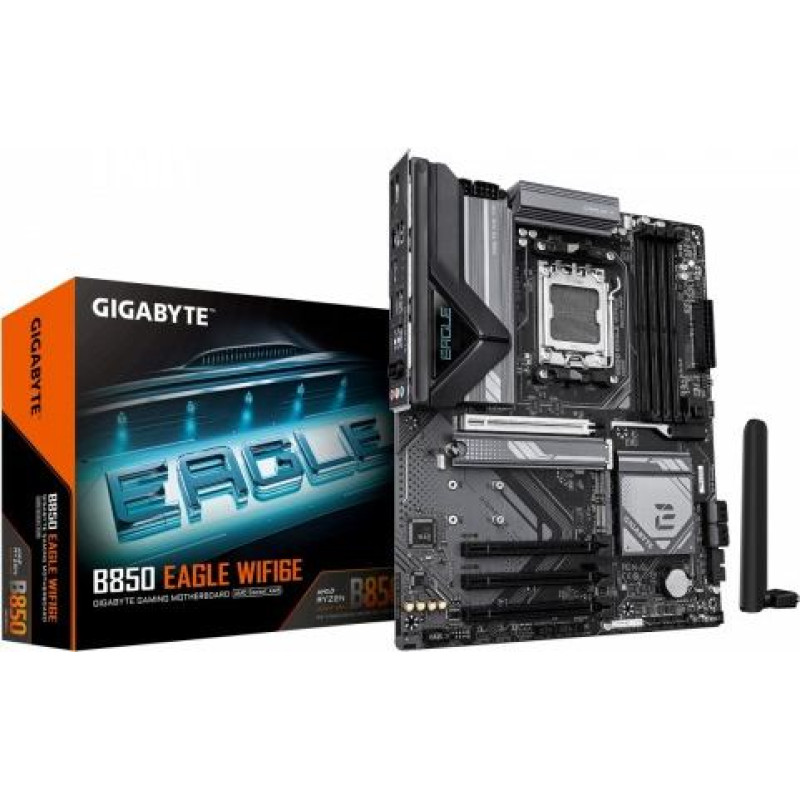

Gigabyte Motherboard B850 EAGLE WIFI6E

GIGABYTE

Gigabyte Motherboard B850 EAGLE WIFI6E

Delivery to the store takes 3 - 7 business days.
ID: 170514
Product Code: B850 EAGLE WIFI6E
Barcode 4719331866587
166.79€
(Ex Tax: 134.51€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA8B850A03
svītrkods: 4719331866587
Description
SKUKBGBAAA8B850A03
Barcode4719331866587
ModelB850 EAGLE WIFI6E
CPU socketSocket AM5
Processor familyAMD Ryzen 5
Processor familyAMD Ryzen 9
Processor familyAMD Ryzen 7
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B850
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency6600 MHz
Memory bus frequency7000 MHz
Memory bus frequency5800 MHz
Memory bus frequency6000 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency5200 MHz
Memory bus frequency5600 MHz
Memory bus frequency6800 MHz
Memory bus frequency7400 MHz
Memory bus frequency7200 MHz
Memory bus frequency7600 MHz
Memory bus frequency8000 MHz
Memory bus frequency7950 MHz
Memory bus frequency7900 MHz
Memory bus frequency7800 MHz
Memory bus frequency4800 MHz
Memory bus frequency4400 MHz
Memory bus frequency8200 MHz
Max memory size256
Expansion slots1 x PCIe 4.0 x 8
Expansion slots1 x PCIe 5.0 x 16
Expansion slots3 x PCIe 3.0 x 1
Expansion slots1 x PCIe 4.0 x 4
Expansion slots3 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesExpansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode*The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)Storage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen 9000 Series Processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devices
GraphicsIntegrated graphics processor with AMD Radeon graphics support: 1 x DisplayPort, supporting a maximum resolution of 3840x2160 @ 144 Hz * Supports DisplayPort version 1.4 and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz * Supports HDMI version 2.1, HDCP 2.3, and HDR. ** Supports native HDMI 2.1 TMDS-compliant ports. (Graphics specifications may vary depending on processor support.)
Sound cardRealtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Network interfaceBluetooth
Network interface1 x 10/100/1000 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interfaceLAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Wireless communication module Intel Wi-Fi 6E AX210 (PCB rev. 1.0) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 160MHz wireless standard
USB ports at back panel9
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors2 x USB 3.2 Gen 2 Type-A
External connectors2 x USB 3.2 Gen 1 Type-A
External connectors2 x SMA
External connectors4 x USB 2.0
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x RJ-45
External connectors1 x MIC
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x Q-Flash Plus button
External connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x Front panel audio header
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x TPM header
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x Addressable LED
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Reset button
Onboard connectors1 x Reset jumper
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 4pin 12V power
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x System panel header
Form factorATX
Supported operating systemsWindows 10
Supported operating systemsWindows 11
Software    Norton Internet Security (OEM version)     LAN bandwidth management software
DesignationCE+WEEE
