Home Computers and equipment Computer components Motherboard MSI Motherboard PRO Z890-P WIFI s1851 4DDR5 ATX

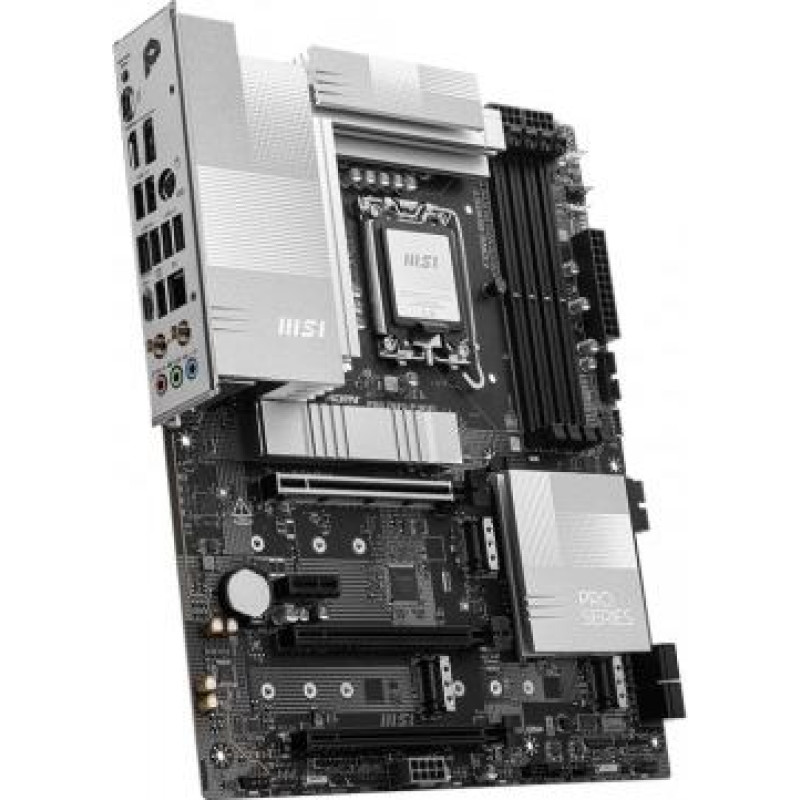

MSI Motherboard PRO Z890-P WIFI s1851 4DDR5 ATX

MSI

MSI Motherboard PRO Z890-P WIFI s1851 4DDR5 ATX

Delivery to the store takes 3 - 7 business days.
ID: 170520
Product Code: PRO Z890-P WIFI
Barcode 4711377257701
210.91€
(Ex Tax: 170.09€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIIIFZ890A03
svītrkods: 4711377257701
Description
SKUKBMSIIIFZ890A03
Barcode4711377257701
ModelPRO Z890-P WIFI
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset type INTEL Z890
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency6400 MHz
Memory bus frequency7200 MHz
Memory bus frequency4800 MHz
Memory bus frequency9200 MHz
Max memory size256
Expansion slots1 x PCIe x 1
Expansion slots2 x PCIe 4.0 x 4
Expansion slots3 x PCIe x 16
Expansion slots1 x PCIe 4.0 x 1
Expansion slots1 x PCIe 5.0 x 16
Expansion slots4 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Graphics1x HDMI HDMI 2.1 support, max resolution 4K 60Hz* 1x DisplayPort DisplayPort 1.4 support, max resolution 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, DisplayPort 2.1 support with UHBR20 over USB Type-C, max resolution 4K@120Hz / 8K@60Hz* *Only available with processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Sound cardRealtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface1 x 10/100/1000/2500/5000 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceBluetooth
Network interfaceRealtek 8126 5Gbps LAN Intel Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
USB ports at back panel9
USB ports on motherboard10
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports5
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x USB 3.1 Type-C
External connectors1 x RJ-45
External connectors4 x USB 2.0
External connectors1 x MIC
External connectors1 x DisplayPort
External connectors1 x USB 3.1
External connectors2 x USB 3.0
External connectors1 x Line Out
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x Thunderbolt 4
External connectors1 x Flash BIOS Button
Onboard connectors1 x 4pin CPU fan
Onboard connectors5 x 4pin Chassis fan
Onboard connectors2 x System panel header
Onboard connectors1 x TPM header
Onboard connectors1 x USB C
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Thunderbolt header
Onboard connectors1 x Tuning Controller connector
Onboard connectors4 x USB 2.0/1.1
Onboard connectors4 x USB 3.0
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x Addressable LED
Form factorATX
Dimensions243.84 mm x 304.8 mm
Supported operating systemsWindows 11
DesignationCE+WEEE
