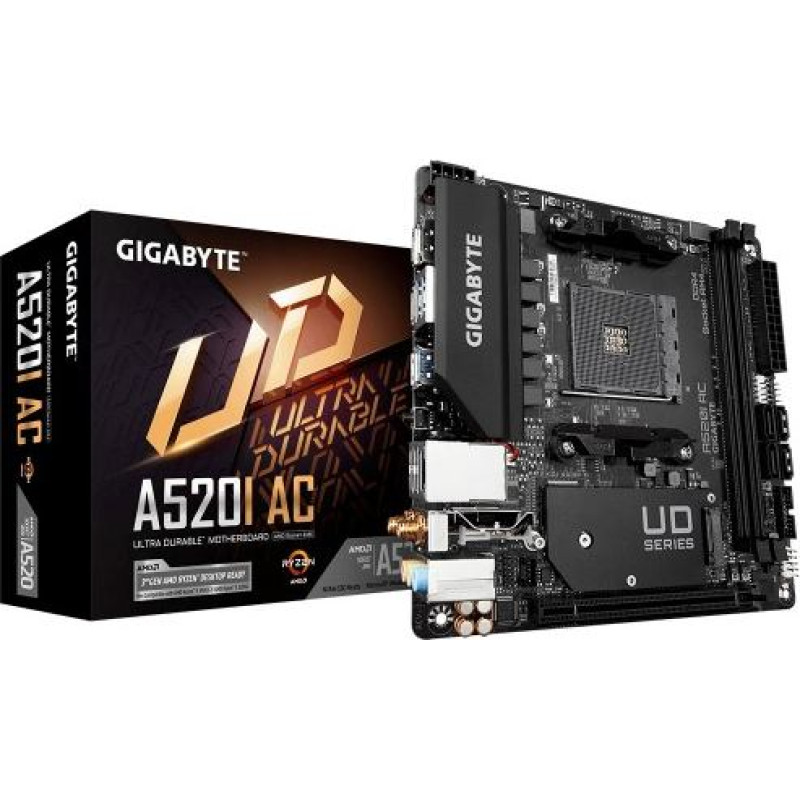

Home Computers and equipment Computer components Motherboard Gigabyte A520I AC AM4 2DDR4 DP/2HDMI mITX
Gigabyte A520I AC AM4 2DDR4 DP/2HDMI mITX

GIGABYTE

Gigabyte A520I AC AM4 2DDR4 DP/2HDMI mITX

Delivery to the store takes 3 - 7 business days.
ID: 170526
Product Code: A520I AC
Barcode 4719331809867
97.65€
(Ex Tax: 78.75€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA7A520M01
svītrkods: 4719331809867
Description
SKUKBGBAAA7A520M01
Barcode4719331809867
ModelA520I AC
CPU socketSocket AM4
Processor familyAMD Ryzen 5
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 9
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD A520
Memory typeDDR4
Number of DDR4 slots2
Memory bus frequency4800 MHz
Memory bus frequency4600 MHz
Memory bus frequency3400 MHz
Memory bus frequency3466 MHz
Memory bus frequency4400 MHz
Memory bus frequency4266 MHz
Memory bus frequency4000 MHz
Memory bus frequency4133 MHz
Memory bus frequency3866 MHz
Memory bus frequency3733 MHz
Memory bus frequency3600 MHz
Memory bus frequency3200 MHz
Memory bus frequency2933 MHz
Memory bus frequency2667 MHz
Memory bus frequency2400 MHz
Memory bus frequency2133 MHz
Memory bus frequency5100 MHz
Memory bus frequency5200 MHz
Max memory size64
Expansion slots1 x M.2
Expansion slots1 x PCIe 3.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 Integrated in the CPU 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Graphics1 x DisplayPort, supporting a maximum resolution of 5120x2880 at 60 Hz * Support for DisplayPort 1.4, HDCP 2.3 and HDR versions. 2 HDMI ports supporting a maximum resolution of 4096x2160 at 60 Hz * Support HDMI 2.1, HDCP 2.3 and HDR versions. Support for up to 3 displays simultaneously Maximum shared memory 16 GB
Sound cardRealtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1 * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Network interface1 x 10/100/1000 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac
Network interfaceBluetooth
Network interfaceRealtek GbE LAN chip (10/100/1000 Mbit) Wireless communication module Intel Wi-Fi AC 3168 (For PCB rev. 1.0/1.2/1.3) / Intel Wi-Fi AC 9260 (For PCB rev. 1.1) / Realtek Wi-Fi AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) (For PCB rev. 1.4) WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment.
USB ports at back panel6
USB ports on motherboard4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors2 x USB 2.0
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors4 x USB 3.0
External connectors2 x HDMI
External connectors1 x DisplayPort
External connectors2 x SMA
External connectors1 x Q-Flash Plus button
Onboard connectors1 x TPM header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x Serial port header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors1 x USB 2.0/1.1 header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
BIOS1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factormini ITX
Dimensions17 x 17 cm
Supported operating systemsWindows 11
Supported operating systemsWindows 10
SoftwareNorton Internet Security (wersja OEM) LAN bandwidth management software
Other informationVoltage detection Temperature detection Fan speed detection Overheating warning Fan failure warning Fan speed control *Whether fan speed control is supported depends on the installed cooler.
DesignationCE+WEEE
